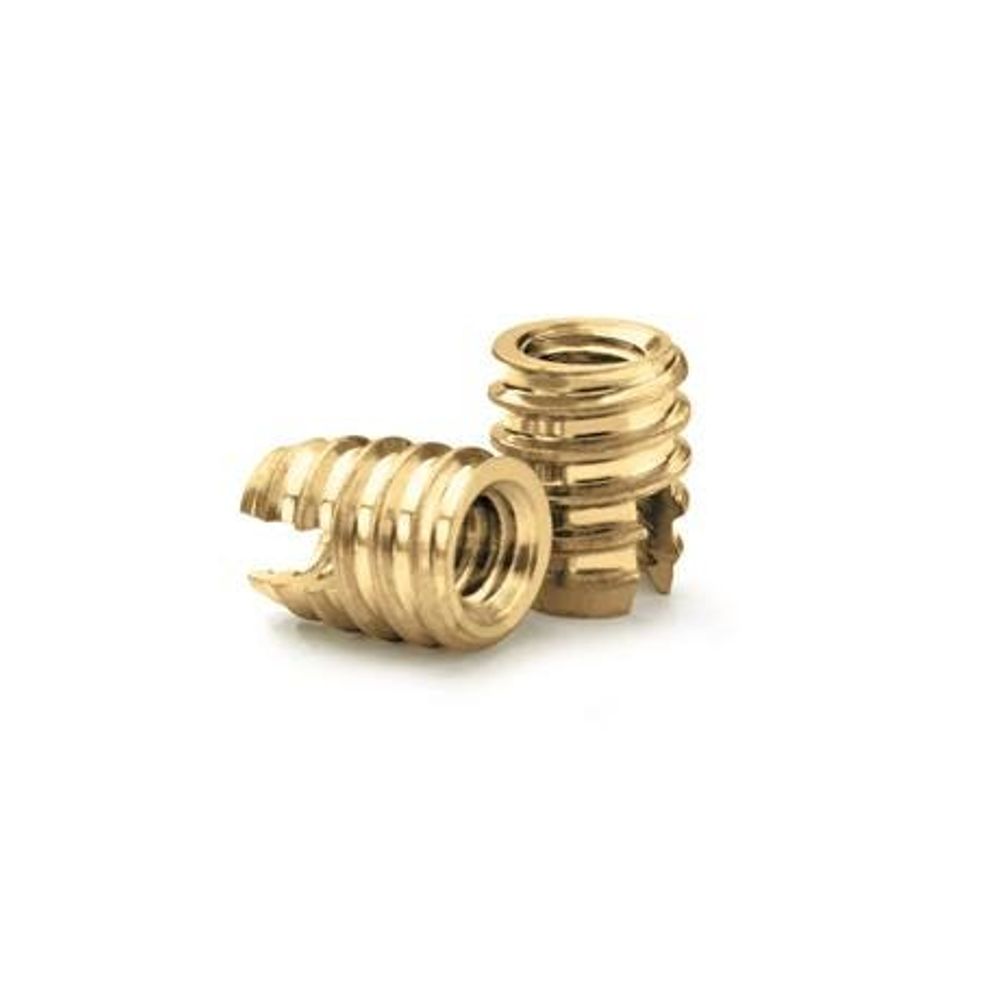

Dodge 6-32 Self Threading Solid Inserts .281 Inch Length - ST138-32
Cód:
ST138-32
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 6-32 Inches |
| Length | .281 Inch |
| Body Diameter | .217 Inch |
| Pilot Diameter | .170 Inch |
| MaxHoleDiameterThermoset | .198Inch |
| Minimum Hole Diameter Thermoset | .194 Inch |
| Max Hole Diameter Thermoplastic | .194 Inch |
| Minimum Hole Diameter Thermoplastic | .190 Inch |
| Hole Depth | .337 Inch |
| Minimum Boss Diameter | .434 Inch |
| Counterbore Diameter | .219 Inch |
| Counterbore Depth | .050 Inch |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 56 |
| JDE_Weight | 1.1466 |
| Features |
Insert cuts its own thread cleanly and evenly. |
