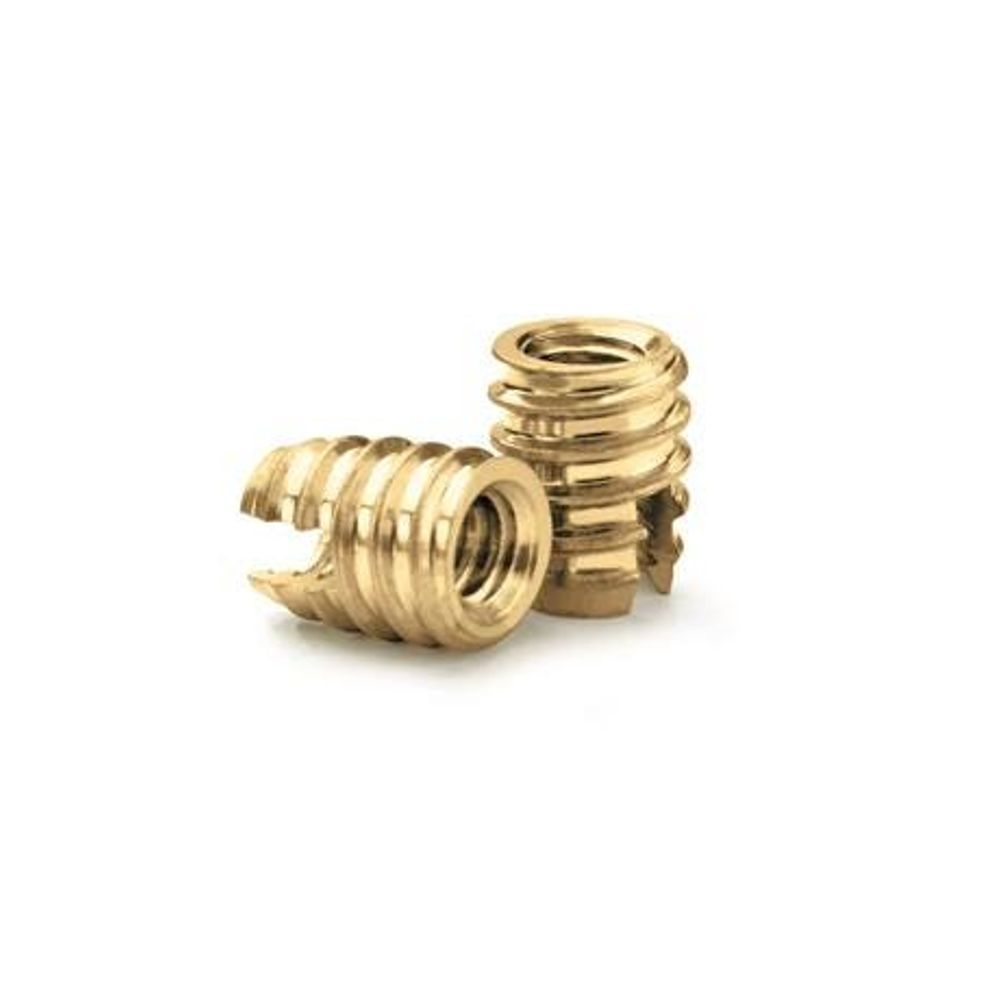

Dodge 1/4-20 Self Threading Solid Inserts .484 Inch Length - ST250-20
Cód:
ST250-20
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 1/4-20 Inches |
| Length | .484 Inch |
| Body Diameter | .374 Inch |
| Pilot Diameter | .302 Inch |
| MaxHoleDiameterThermoset | .343Inch |
| Minimum Hole Diameter Thermoset | .336 Inch |
| Max Hole Diameter Thermoplastic | .336 Inch |
| Minimum Hole Diameter Thermoplastic | .330 Inch |
| Hole Depth | .581 Inch |
| Minimum Boss Diameter | .748 Inch |
| Counterbore Diameter | .375 Inch |
| Counterbore Depth | .063 Inch |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 56 |
| JDE_Weight | 5.24475 |
| Features |
Insert cuts its own thread cleanly and evenly. |
