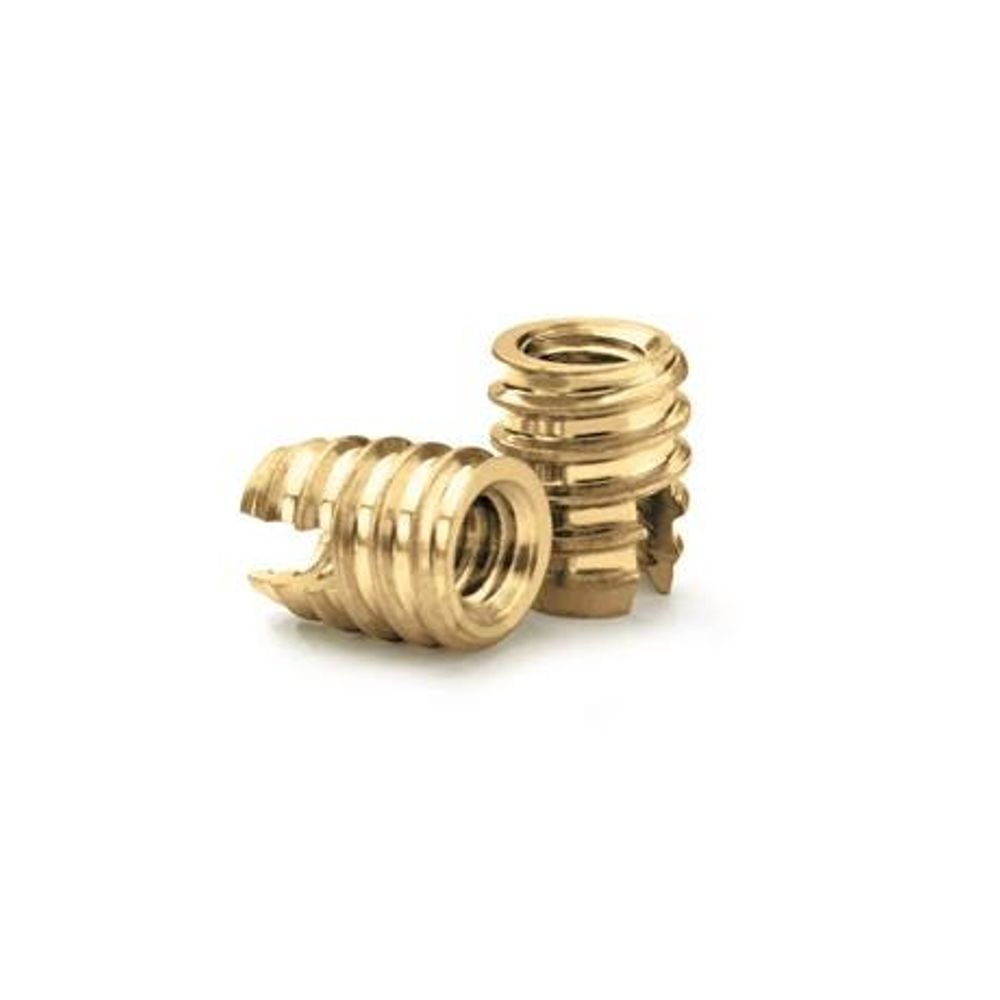

Dodge 2-56 Self Threading Solid Inserts .187 Inch Length - ST086-56
Cód:
ST086-56
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 2-56 Inches |
| Length | .187 Inch |
| Body Diameter | .140 Inch |
| Pilot Diameter | .122 Inch |
| MaxHoleDiameterThermoset | .129Inch |
| Minimum Hole Diameter Thermoset | .127 Inch |
| Max Hole Diameter Thermoplastic | .127 Inch |
| Minimum Hole Diameter Thermoplastic | .124 Inch |
| Hole Depth | .225 Inch |
| Minimum Boss Diameter | .280 Inch |
| Counterbore Diameter | .141 Inch |
| Counterbore Depth | .032 Inch |
| JDE_Weight_Per_UOM | M |
|---|---|
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 56 |
| JDE_Weight | 0.39691 |
| Features |
Insert cuts its own thread cleanly and evenly. |
