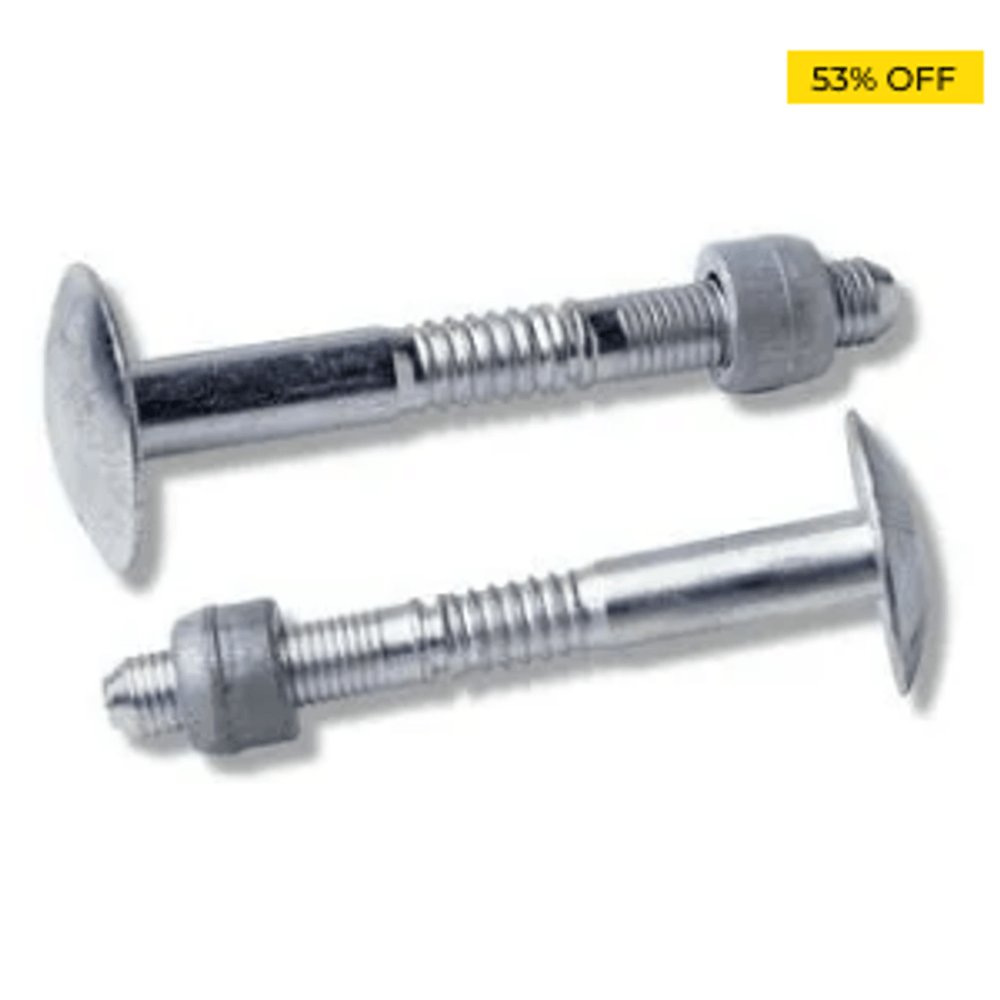

AVDEL Aluminum Lockbolts with 6.4mm [1/4] (8) nominal diameter with 7.92 - 11.1 mm grip range - 02801-00806
Cód:
02801-00806
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

7.92-11.1 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Brazier Head head style and Aluminum Pin Material

Avdelok

nominal Diameter6.4mm [1/4] (8)
Pin MaterialAluminum
Head StyleBrazier Head
Min grip mm7.92
Max grip mm11.1
Min Grip Inches0.312
Max Grip Inches0.437
Min Hole Size mm6.6
Max Hole Size mm6.6
Min Holes Size Inches0.261
Max Hole Size Inches0.261
Head Diameter mm13.4
Head Diameter inches0.525
Head Thickness mm4.1
Head Thickness Inches0.161
Shear kN8.34
Tensile kN7.92
Shear lbf1875.0
Tensile lbf1780.0
Full Collar Part No.02837-00800
Half Collar Part No.02838-00800
Flanged Collar Part No.02839--00800
Body Length mm0.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616107030
JDE_Country_of_OriginTW
JDE_Lead_Time_Days252
Dontuse0
JDE_Weight9.12714
Minimum Order Quantity900
Features

    Fast Facts:

  • High-strength, high-speed assembly.
  • High shear and tensile strength.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Fasten metal to metal.
  • Used in construction, bridge building, commercial vehicles, fencing, mining, railways, and reefer cool and dry freight containers.

    • Specifications:
  • Sizes: 4.8mm to 9.6mm (3/16" to 3/8")
  • Materials: Aluminum alloy, steel, and stainless steel
  • Headforms: Brazier, countersunk, truss, and large head
  • Collars: Full, half, and flanged
