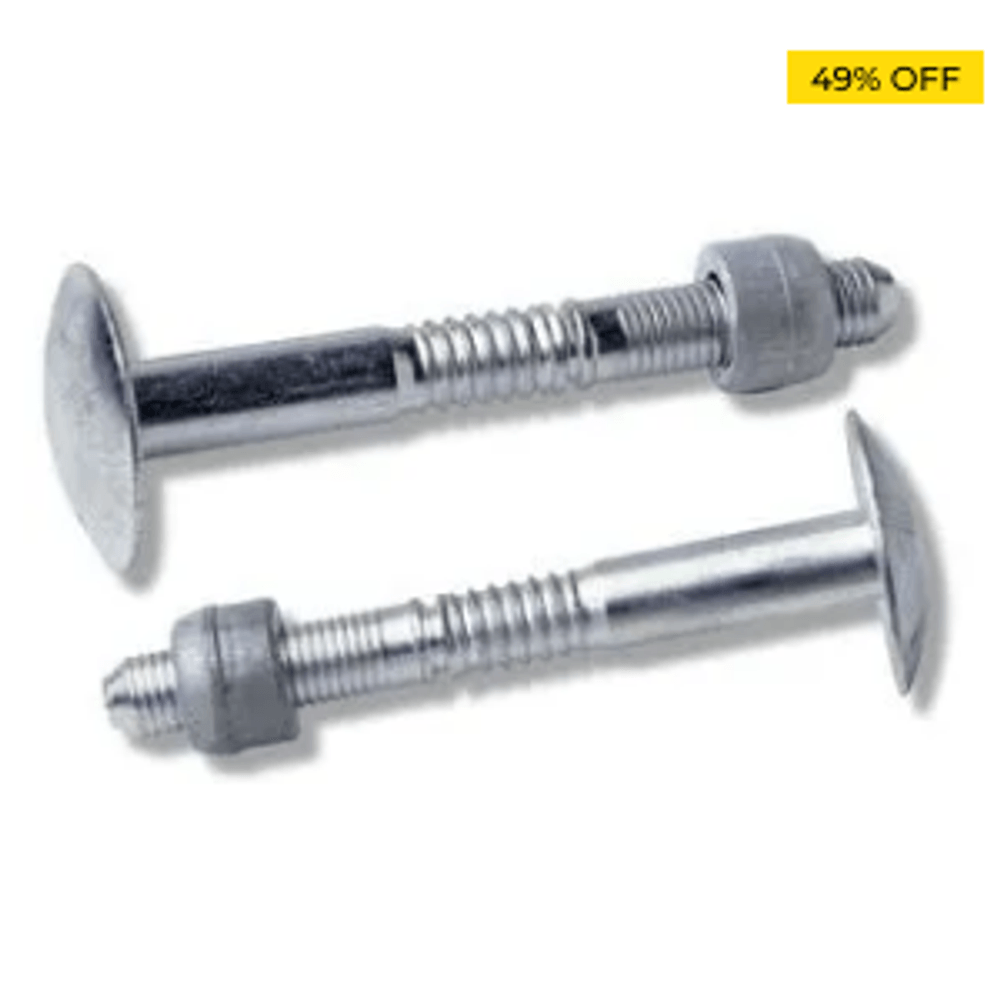

AVDEL Aluminum Lockbolts with 6.4mm [1/4] (8) nominal diameter with 6.35 - 9.53 mm grip range - 02801-00805
Cód:
02801-00805
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

6.35-9.53 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Brazier Head head style and Aluminum Pin Material

Avdelok

Flanged Collar Part No.02839--00800
Body Length mm0.0
Half Collar Part No.02838-00800
Full Collar Part No.02837-00800
Tensile lbf1780.0
Shear lbf1875.0
Tensile kN7.92
Shear kN8.34
Head Thickness Inches0.161
Head Thickness mm4.1
Head Diameter inches0.525
Head Diameter mm13.4
Max Hole Size Inches0.261
Min Holes Size Inches0.261
Max Hole Size mm6.6
Min Hole Size mm6.6
Max Grip Inches0.375
Min Grip Inches0.25
Max grip mm9.53
Min grip mm6.35
Head StyleBrazier Head
Pin MaterialAluminum
nominal Diameter6.4mm [1/4] (8)

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMEA
JDE_HTS_Code0
JDE_Country_of_OriginUS
JDE_Lead_Time_Days0
Dontuse0
JDE_Weight0
Minimum Order Quantity1000
Features

    Fast Facts:

  • High-strength, high-speed assembly.
  • High shear and tensile strength.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Fasten metal to metal.
  • Used in construction, bridge building, commercial vehicles, fencing, mining, railways, and reefer cool and dry freight containers.

    • Specifications:
  • Sizes: 4.8mm to 9.6mm (3/16" to 3/8")
  • Materials: Aluminum alloy, steel, and stainless steel
  • Headforms: Brazier, countersunk, truss, and large head
  • Collars: Full, half, and flanged
