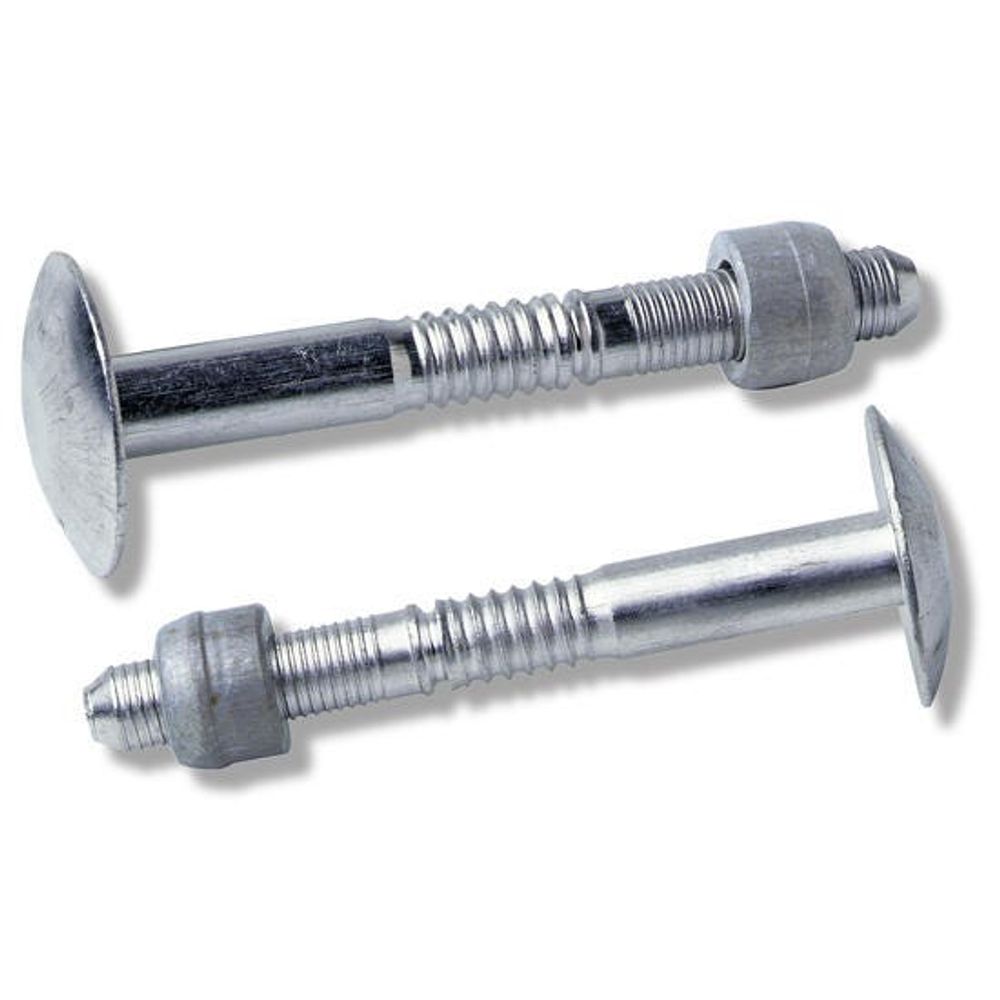

AVDEL Carbon Boron Steel Lockbolts with 6.4mm [1/4] (8) nominal diameter with 4.75 - 7.92 mm grip range - 02621-70804
Cód:
02621-70804
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.75-7.92 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Brazier Head head style and Carbon Boron Steel Pin Material

Avdelok

nominal Diameter6.4mm [1/4] (8)
Pin MaterialCarbon Boron Steel
Head StyleBrazier Head
Min grip mm4.75
Max grip mm7.92
Min Grip Inches0.187
Max Grip Inches0.312
Min Hole Size mm6.6
Max Hole Size mm0.26
Min Holes Size Inches6.6
Max Hole Size Inches0.261
Head Diameter mm13.4
Head Diameter inches0.526
Head Thickness mm4.1
Head Thickness Inches0.161
Shear kN14.73
Tensile kN13.35
Shear lbf3310.0
Tensile lbf3000.0
Full Collar Part No.02662-70800
Half Collar Part No.02682-70800
Flanged Collar Part No.02615-70800
Body Length mm0.0

default

JDE_HTS_Code7318290000
JDE_Country_of_OriginTW
JDE_Lead_Time_Days252
Minimum Order Quantity13000
Features

    Fast Facts:

  • High-strength, high-speed assembly.
  • High shear and tensile strength.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Fasten metal to metal.
  • Used in construction, bridge building, commercial vehicles, fencing, mining, railways, and reefer cool and dry freight containers.

    • Specifications:
  • Sizes: 4.8mm to 9.6mm (3/16" to 3/8")
  • Materials: Aluminum alloy, steel, and stainless steel
  • Headforms: Brazier, countersunk, truss, and large head
  • Collars: Full, half, and flanged
