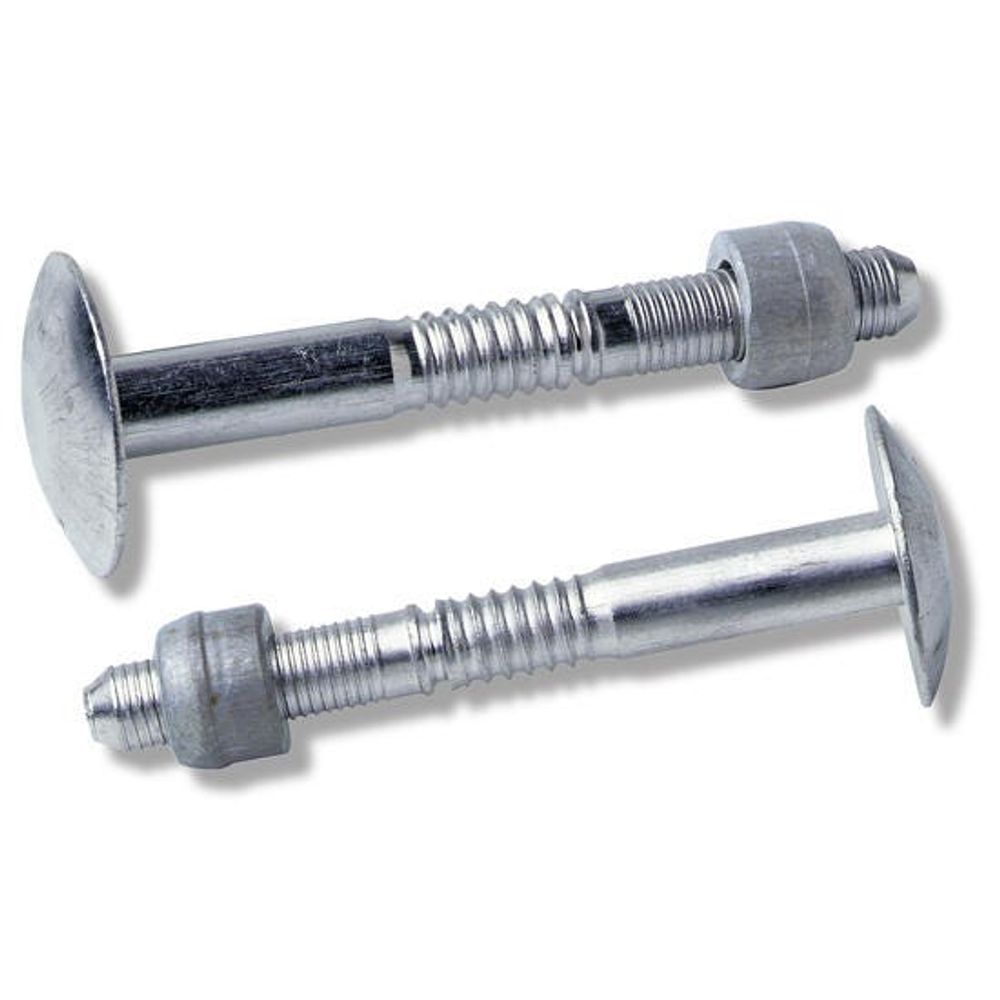

AVDEL Stainless Steel Lockbolts with 6.4mm [1/4] (8) nominal diameter with 4.75 - 7.92 mm grip range - 02691-00804
Cód:
02691-00804
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.75-7.92 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Brazier Head head style and Stainless Steel Pin Material

Avdelok

Pin MaterialStainless Steel
Flanged Collar Part No.02648-70800
Full Collar Part No.02605-70800
Tensile lbf3980.0
Shear lbf3270.0
Body Length mm0.0
Tensile kN17.71
Shear kN14.55
Head Thickness Inches0.161
Head Thickness mm4.1
Head Diameter inches0.525
Head Diameter mm13.4
Max Hole Size Inches0.261
Min Holes Size Inches0.261
Max Hole Size mm6.6
Min Hole Size mm6.6
Max Grip Inches0.312
Min Grip Inches0.187
Max grip mm7.92
Min grip mm4.75
Head StyleBrazier Head
nominal Diameter6.4mm [1/4] (8)

default

JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight25.1327
JDE_Weight_UOMLB
Minimum Order Quantity10000
Features

    Fast Facts:

  • High-strength, high-speed assembly.
  • High shear and tensile strength.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Fasten metal to metal.
  • Used in construction, bridge building, commercial vehicles, fencing, mining, railways, and reefer cool and dry freight containers.

    • Specifications:
  • Sizes: 4.8mm to 9.6mm (3/16" to 3/8")
  • Materials: Aluminum alloy, steel, and stainless steel
  • Headforms: Brazier, countersunk, truss, and large head
  • Collars: Full, half, and flanged
