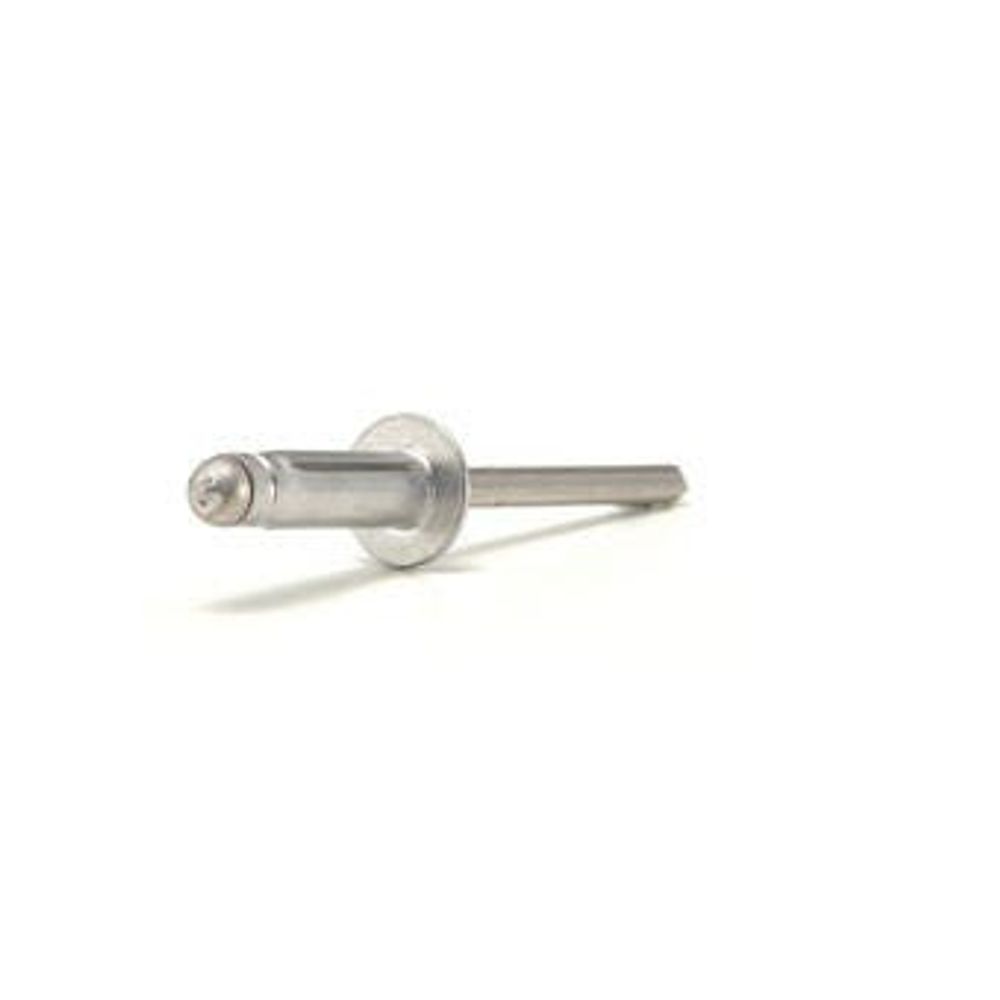

AVDEL 4.8mm [3/16] Aluminum / Aluminum Load Spreading Rivet Rivets - BAPK-06-09
Cód:
BAPK-06-09
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0-14.2748 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Aluminum Mandrel Material

Load Spreading Rivet

Product name9.525 - 14.2748 Grip in Aluminum/Aluminum, Load Spreading Rivet Non-Structural Blind Rivets
Nominal Diameter mm4.8
Nominal Diameter Inches4.8mm [3/16]
Body MaterialAluminum
Mandrel MaterialAluminum
Finish-BodyNone
Finish- MandrelNone
Head StyleDome
Min grip mm9.524999999999999
Max grip mm14.2748
Min Grip Inches0.375
Max Grip Inches0.562
Min Hole Size mm5.1815999999999995
Max Hole Size mm5.308599999999999
Min Holes Size Inches0.204
Max Hole Size Inches0.209
Max Body Length mm28.2702
Max Body Length Inches1.113
Flange Diameter mm Max11.684
Flange Diameter inches Max0.46
Flange Thickness Inches Max0.093
Shear lbf292
Tensile lbf380

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days98
JDE_Weight4.4734
Features

    Fast Facts:


  • Designed for joining plastics and other brittle or soft materials.

  • Clamping loads spread over wide area, avoiding damage to vulnerable materials.

  • Accommodates oversized holes.

  • Corrosion-resistant.

  • High-strength aluminum 3.5% magnesium alloy.

  • Limited number of lengths needed because of wide grip range – up to 12.0mm.

  • Blind hole, one-sided installation capability.

  • Assembly applications include mobile homes, plastic-framed windows, plywood furniture, and timber products.
