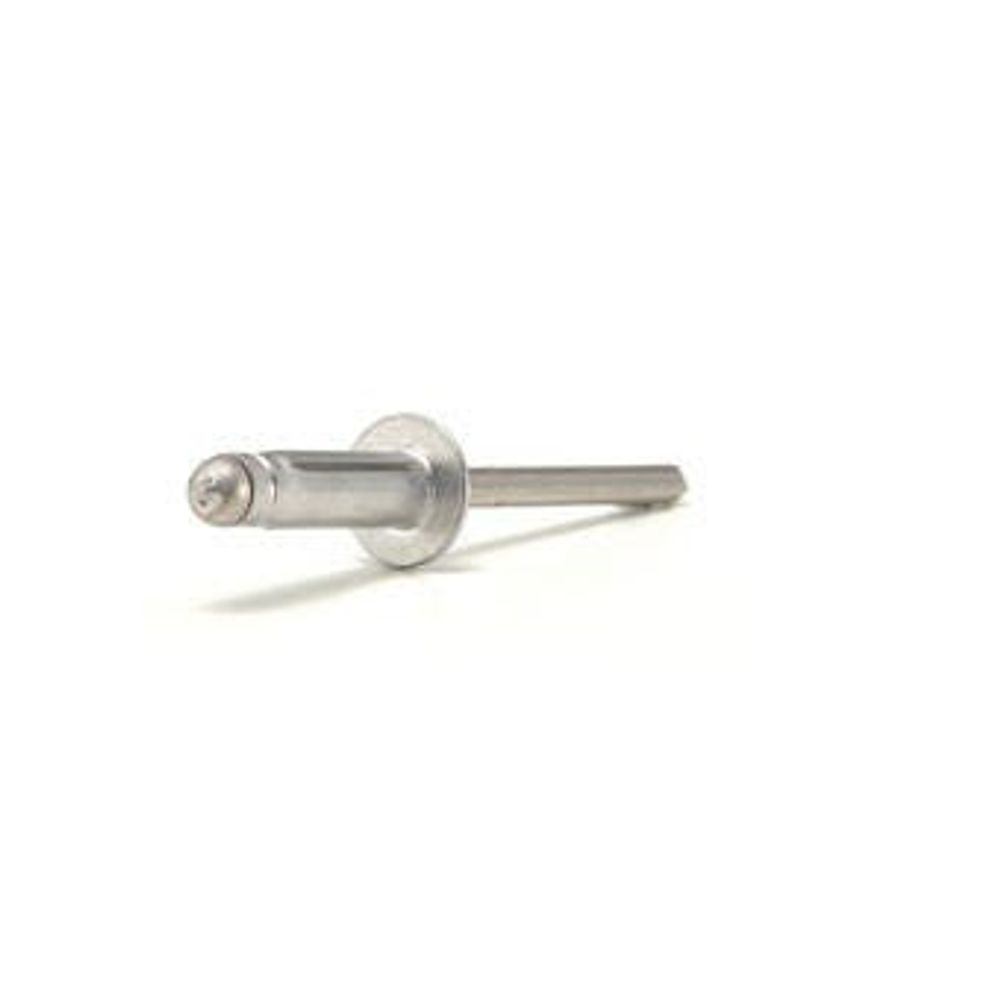

AVDEL 4.8mm [3/16] Aluminum / Aluminum Load Spreading Rivet Rivets - 0BF41-00625
Cód:
0BF41-00625
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.016-8.9916 mm Grip with 4.8 mm Nominal Diameter in Dome, Large Flange Head Style with Aluminum Body Material and Aluminum Mandrel Material

Load Spreading Rivet

Product name1.016 - 8.9916 Grip in Aluminum/Aluminum, Load Spreading Rivet Non-Structural Blind Rivets
Nominal Diameter mm4.8
Nominal Diameter Inches4.8mm [3/16]
Body MaterialAluminium
Mandrel MaterialAluminium
Finish-BodyNone
Finish- MandrelNone
Head StyleDome, Large Flange
Min grip mm1.02
Max grip mm9
Min Grip Inches0.04
Max Grip Inches0.354
Min Hole Size mm5.0
Max Hole Size mm5.25
Min Holes Size Inches0.197
Max Hole Size Inches0.207
Max Body Length mm23.3
Max Body Length Inches0.92
Max Secondary Protrusion mm23.3
Max Secondary Protrusion Inches0.92
Flange Diameter mm Max16.0
Flange Diameter inches Max0.63
Flange Thickness mm Max1.93
Flange Thickness Inches Max0.076
Shear kN0.78
Tensile kN1.07
Shear lbf175
Tensile lbf240

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days84
JDE_Weight3.92728
Minimum Order Quantity2500
Features

    Fast Facts:


  • Designed for joining plastics and other brittle or soft materials.

  • Clamping loads spread over wide area, avoiding damage to vulnerable materials.

  • Accommodates oversized holes.

  • Corrosion-resistant.

  • High-strength aluminum 3.5% magnesium alloy.

  • Limited number of lengths needed because of wide grip range – up to 12.0mm.

  • Blind hole, one-sided installation capability.

  • Assembly applications include mobile homes, plastic-framed windows, plywood furniture, and timber products.
