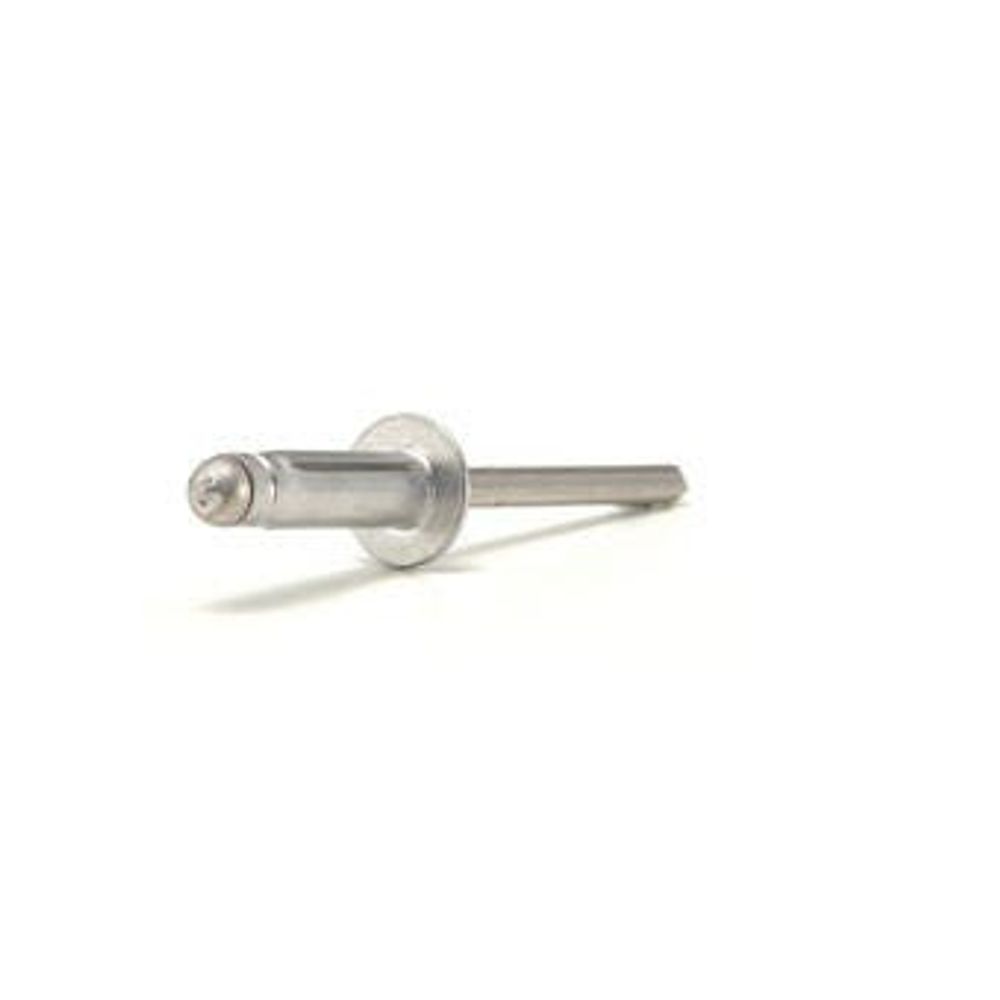

AVDEL 6.4mm [1/4] Aluminum / Aluminum Load Spreading Rivet Rivets - BAPK-08-06
Cód:
BAPK-08-06
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0-9.525 mm Grip with 6.4 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Aluminum Mandrel Material

Load Spreading Rivet

Product name4.7498 - 9.525 Grip in Aluminum/Aluminum, Load Spreading Rivet Non-Structural Blind Rivets
Nominal Diameter mm6.4
Nominal Diameter Inches6.4mm [1/4]
Body MaterialAluminum
Mandrel MaterialAluminum
Finish-BodyNone
Finish- MandrelNone
Head StyleDome
Min grip mm4.7498
Max grip mm9.524999999999999
Min Grip Inches0.187
Max Grip Inches0.375
Min Hole Size mm6.400799999999999
Max Hole Size mm6.6548
Min Holes Size Inches0.252
Max Hole Size Inches0.262
Max Body Length mm26.669999999999995
Max Body Length Inches1.0499999999999998
Flange Diameter mm Max14.605000000000004
Flange Diameter inches Max0.5750000000000001
Flange Thickness Inches Max0.11800000000000001
Shear lbf420
Tensile lbf588

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days112
JDE_Weight7.84053
Features

    Fast Facts:


  • Designed for joining plastics and other brittle or soft materials.

  • Clamping loads spread over wide area, avoiding damage to vulnerable materials.

  • Accommodates oversized holes.

  • Corrosion-resistant.

  • High-strength aluminum 3.5% magnesium alloy.

  • Limited number of lengths needed because of wide grip range – up to 12.0mm.

  • Blind hole, one-sided installation capability.

  • Assembly applications include mobile homes, plastic-framed windows, plywood furniture, and timber products.
