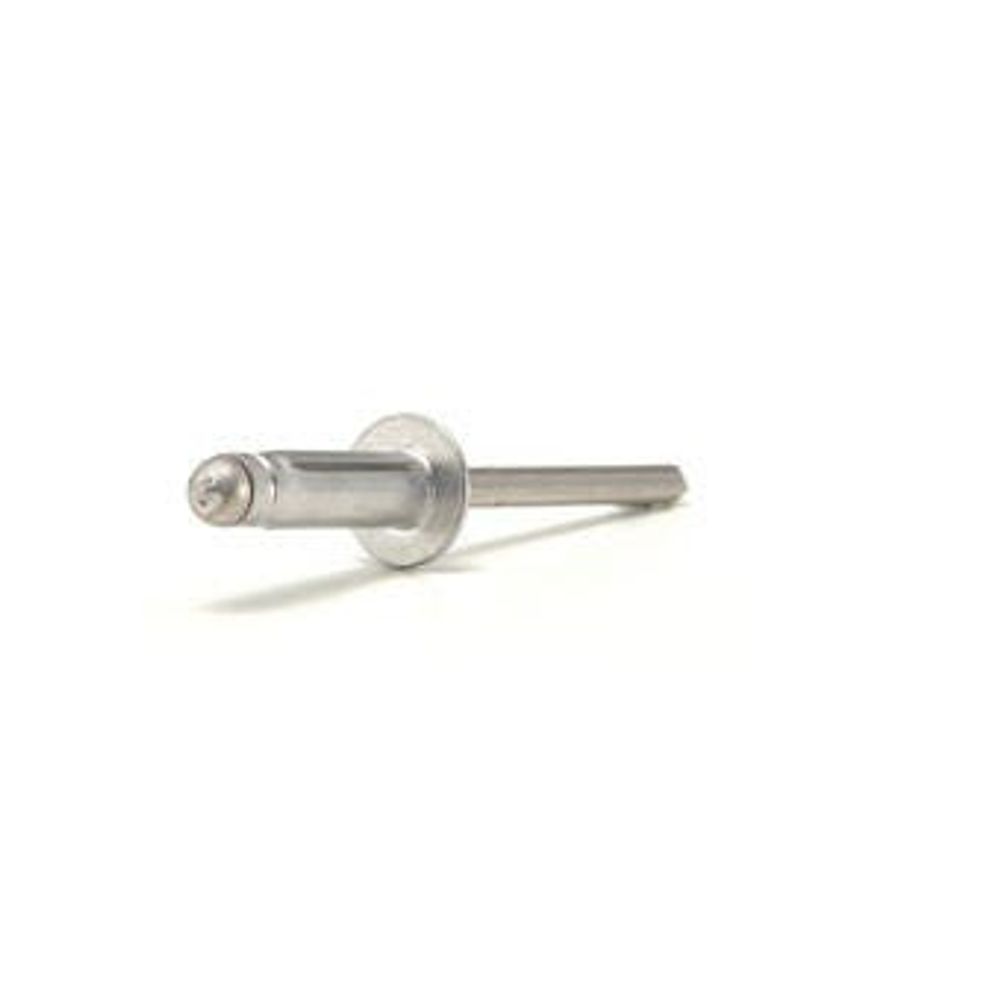

AVDEL 4.8mm [3/16] Aluminum / Aluminum Load Spreading Rivet Rivets - 0BF01-00630
Cód:
0BF01-00630
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4-12 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Aluminum Mandrel Material

Load Spreading Rivet

Product name4 - 12 Grip in Aluminum/Aluminum, Load Spreading Rivet Non-Structural Blind Rivets
Nominal Diameter mm4.8
Nominal Diameter Inches4.8mm [3/16]
Body MaterialAluminum
Mandrel MaterialAluminum
Finish-BodyNone
Finish- MandrelNone
Head StyleDome
Min grip mm4.0
Max grip mm12.0
Min Grip Inches0.157
Max Grip Inches0.472
Min Hole Size mm5.0
Max Hole Size mm5.25
Min Holes Size Inches0.197
Max Hole Size Inches0.207
Max Secondary Protrusion mm27.1
Max Secondary Protrusion Inches1.07
Flange Diameter inches Max0.396
Flange Thickness Inches Max0.08
Shear kN0.78
Tensile kN1.07
Shear lbf175
Tensile lbf240

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days98
JDE_Weight3.88165
Minimum Order Quantity2500
Features

    Fast Facts:


  • Designed for joining plastics and other brittle or soft materials.

  • Clamping loads spread over wide area, avoiding damage to vulnerable materials.

  • Accommodates oversized holes.

  • Corrosion-resistant.

  • High-strength aluminum 3.5% magnesium alloy.

  • Limited number of lengths needed because of wide grip range – up to 12.0mm.

  • Blind hole, one-sided installation capability.

  • Assembly applications include mobile homes, plastic-framed windows, plywood furniture, and timber products.
