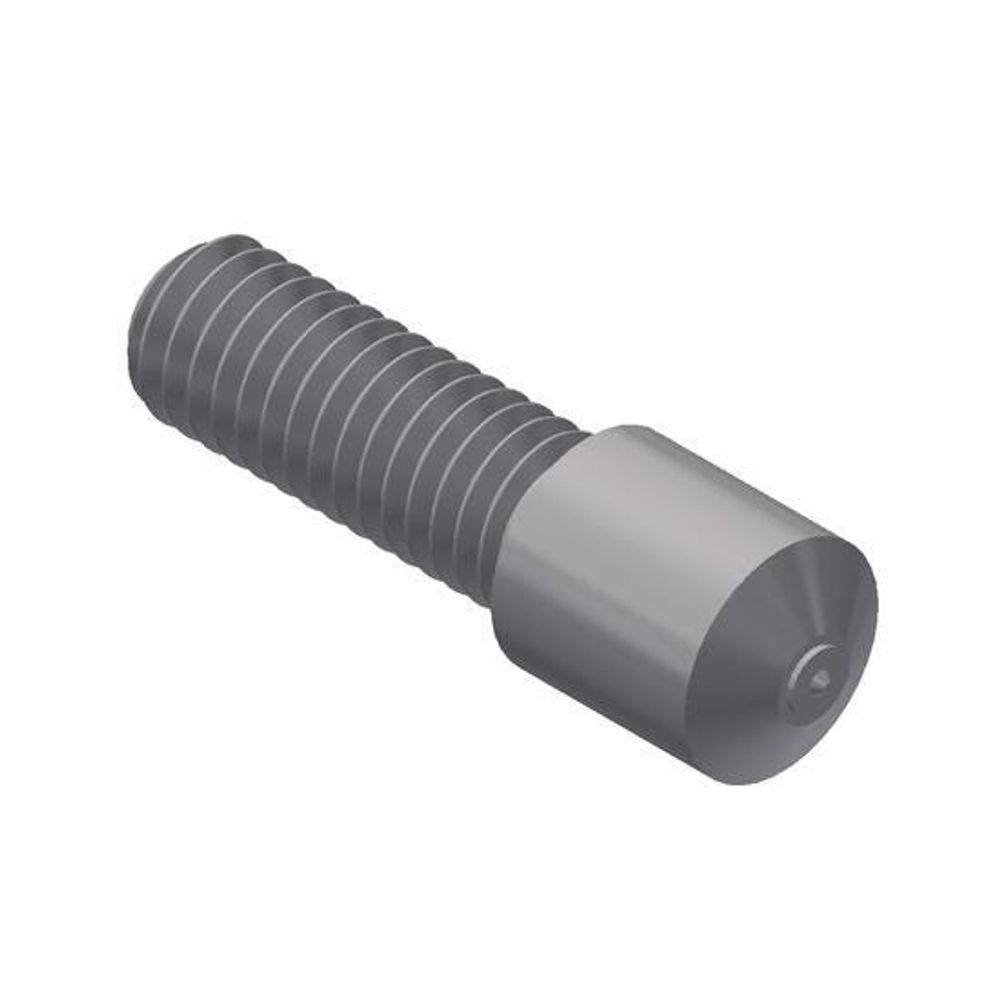

SBA 5/8 X 3 AL50 1/2-13 X - 102093095
Cód:
102093095
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.625 inches |
|---|---|
| Width | 0.625 inches |
| Length | 4.25 inches |
| Weight | 0.114 Lb |
| Brand | Nelson |
| Material (O) | Aluminum |
| Stud Dia | 0.625 inches |
| Weld Base Dia | 0.625 inches |
| Overall Length | 4.25 inches |
| Weld Base Length | 3 inches |
| Burn Off | 0.125 inches |
| Thread Size | 1/2-13 UN/UNF |
| Thread Length | 1.25 inches |
| Flash Dia | 0.75 inches |
| Flash Thickness | 0.25 inches |
| Related Ferrule | 100101151.0 |
| Related Chuck | 500001014.0 |
| Related Grip | 501001014.0 |
| Related Foot | 502001138.0 |
| Features | 1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle. |
|---|
