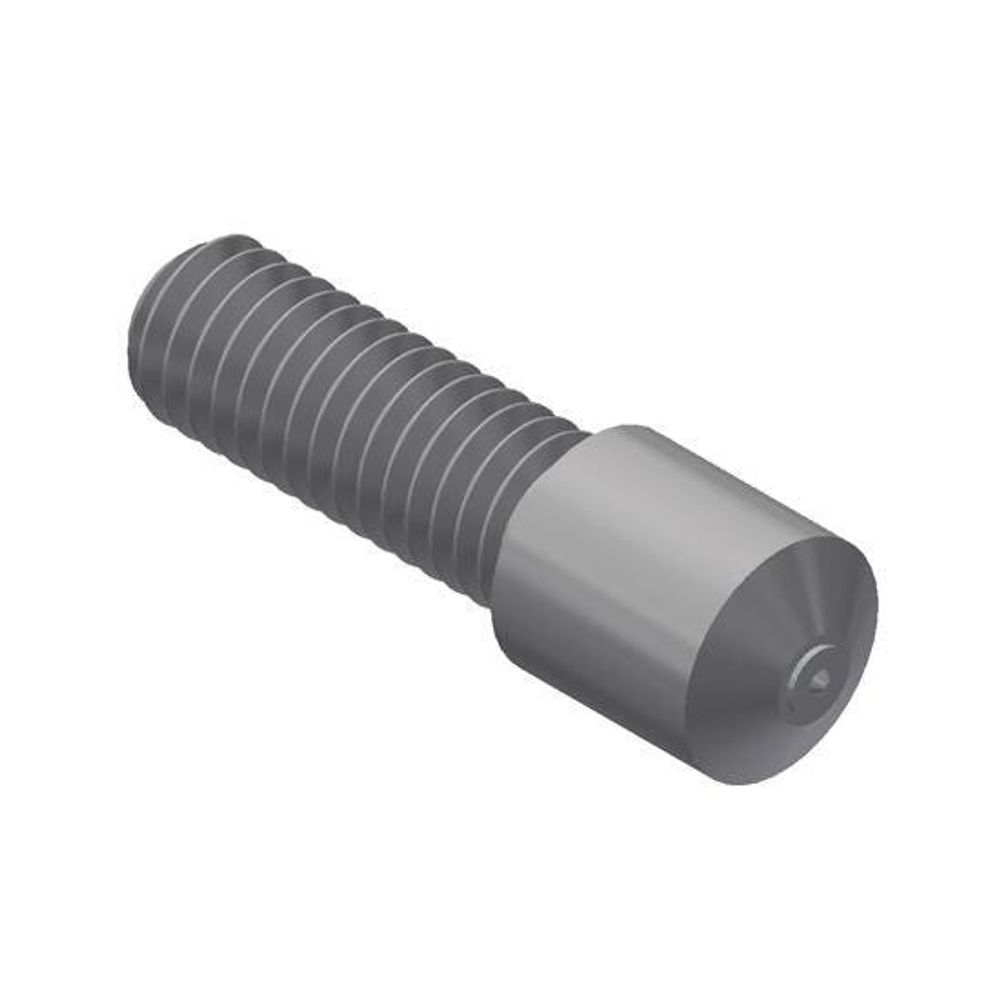

SBA 5/8 X 1 AL50 1/2-13 X - 102093093
Cód:
102093093
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Related Foot | 502001138.0 |
|---|---|
| Related Grip | 501001014.0 |
| Related Chuck | 500001014.0 |
| Related Ferrule | 100101151.0 |
| Flash Thickness | 0.25 inches |
| Flash Dia | 0.75 inches |
| Thread Length | 1.25 inches |
| Thread Size | 1/2-13 UN/UNF |
| Burn Off | 0.125 inches |
| Weld Base Length | 1 inches |
| Overall Length | 2.25 inches |
| Weld Base Dia | 0.625 inches |
| Stud Dia | 0.625 inches |
| Material (O) | Aluminum |
| Brand | Nelson |
| Weight | 0.054 Lb |
| Length | 2.25 inches |
| Width | 0.625 inches |
| Height | 0.625 inches |
| Features | 1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle. |
|---|
