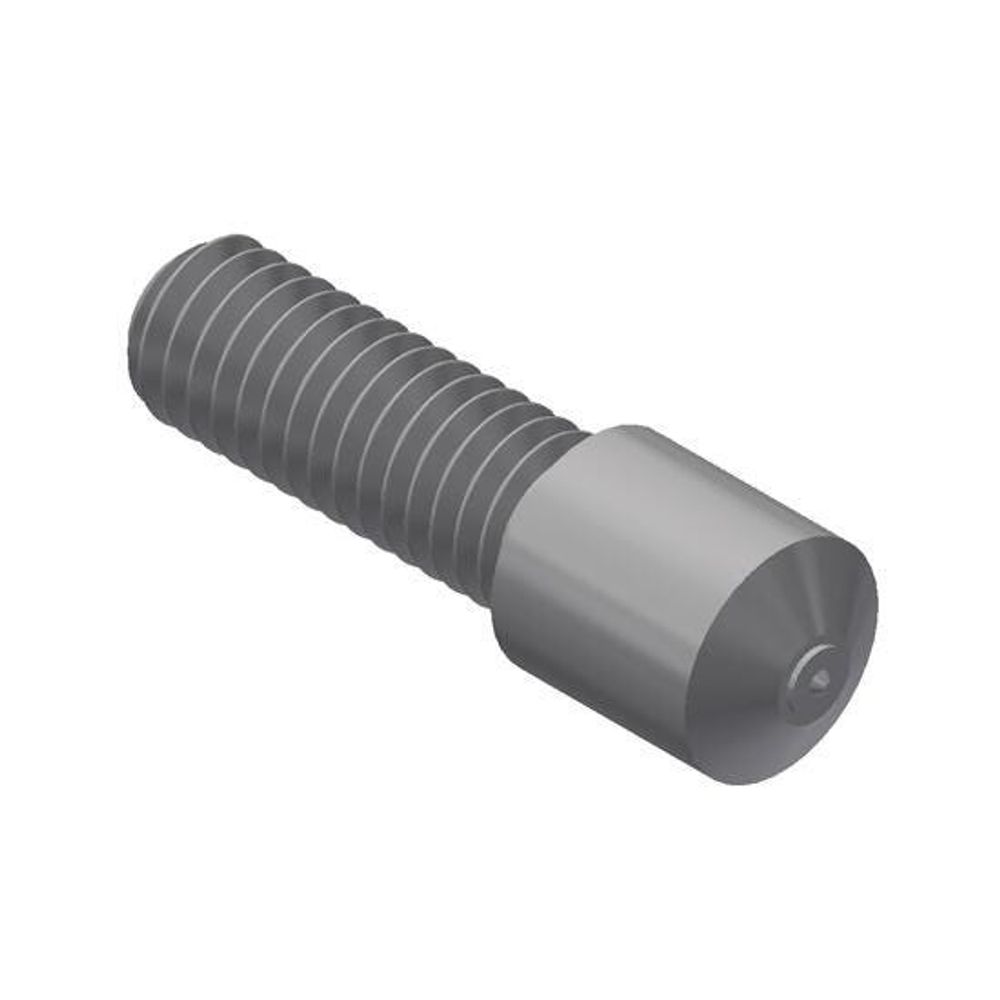

SBA 3/8 X 1 AL50 1/4-20 X - 102093090
Cód:
102093090
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.375 inches |
|---|---|
| Width | 0.375 inches |
| Length | 2.25 inches |
| Weight | 0.017 Lb |
| Brand | Nelson |
| Material (O) | Aluminum |
| Stud Dia | 0.375 inches |
| Weld Base Dia | 0.375 inches |
| Overall Length | 2.25 inches |
| Weld Base Length | 1 inches |
| Burn Off | 0.093 inches |
| Thread Size | 1/4-20 UN/UNF |
| Thread Length | 1.25 inches |
| Flash Dia | 0.603 inches |
| Flash Thickness | 0.187 inches |
| Related Ferrule | 100101048.0 |
| Related Chuck | 500001007.0 |
| Related Grip | 501001006.0 |
| Related Foot | 502001137.0 |
| Features | 1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle. |
|---|
