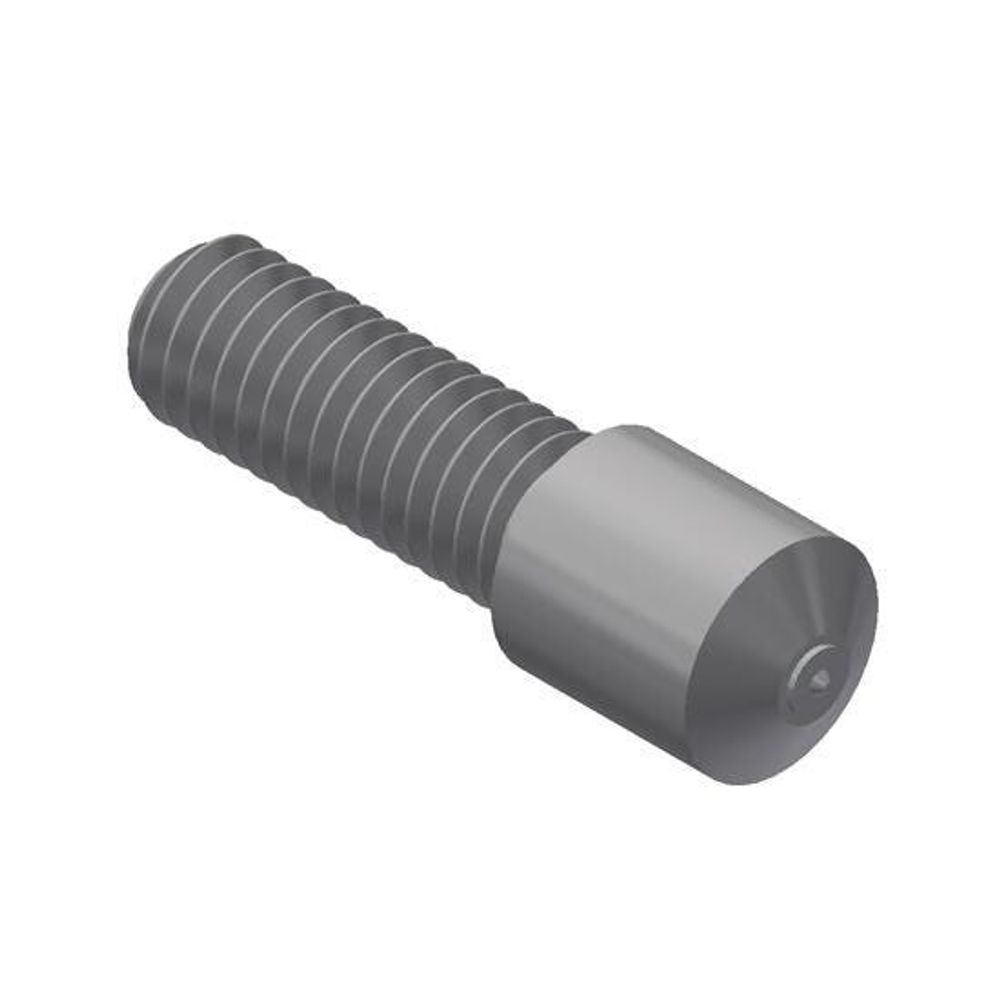

SBA 5/16 X 3 1/2 5086 1/4-20 X - 102093069
Cód:
102093069
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.312 inches |
|---|---|
| Width | 0.312 inches |
| Length | 4.75 inches |
| Weight | 0.03 Lb |
| Brand | Nelson |
| Material (O) | Aluminum |
| Stud Dia | 0.312 inches |
| Weld Base Dia | 0.312 inches |
| Overall Length | 4.75 inches |
| Weld Base Length | 3.5 inches |
| Burn Off | 0.093 inches |
| Thread Size | 1/4-20 UN/UNF |
| Thread Length | 1.25 inches |
| Flash Dia | 0.468 inches |
| Flash Thickness | 0.156 inches |
| Related Ferrule | 100101048.0 |
| Related Chuck | 500001007.0 |
| Related Grip | 501001006.0 |
| Related Foot | 502001137.0 |
| Features | 1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle. |
|---|
