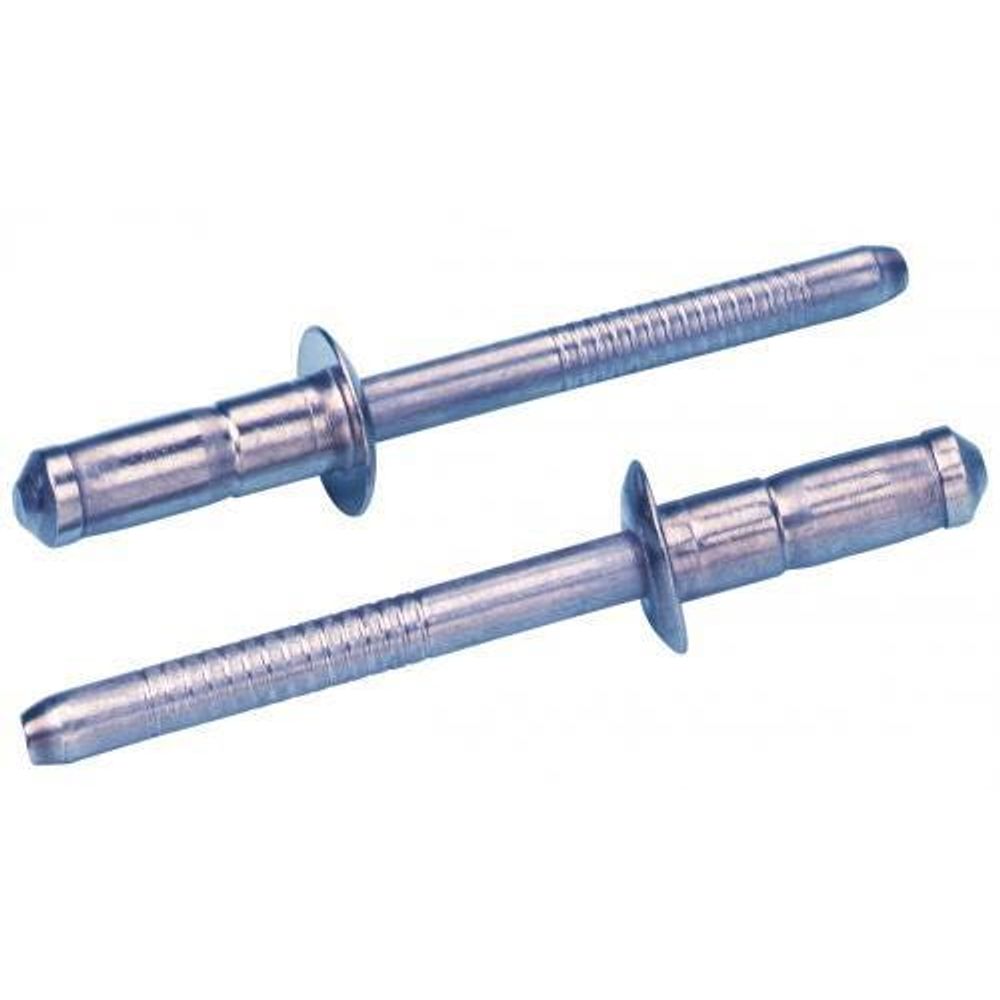

AVDEL 4.8mm [3/16] Stainless Steel / Stainless Steel Avinox Rivets - 0BE61-00611
Cód:
0BE61-00611
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.5-3.5 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material

Avinox

Product name1.5 - 3.5 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Nominal Diameter mm4.8
Nominal Diameter Inches4.8mm [3/16]
Body MaterialStainless Steel
Mandrel MaterialStainless Steel
Finish-BodyPolished
Finish- MandrelNone
Head StyleDome
Min grip mm1.5
Max grip mm3.5
Min Grip Inches0.059
Max Grip Inches0.138
Min Hole Size mm4.9
Max Hole Size mm5.1
Min Holes Size Inches0.193
Max Hole Size Inches0.201
Max Body Length Inches0.504
Max Secondary Protrusion mm12.8
Max Secondary Protrusion Inches0.504
Flange Diameter mm Max9.6
Flange Diameter inches Max0.378
Flange Thickness mm Max1.5
Flange Thickness Inches Max0.059
Shear kN5.5
Tensile kN5
Max Body Length mm12.8
Shear lbf1236
Tensile lbf1124

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight9
Minimum Order Quantity3000
Features

    Fast Facts:


  • Non-structural breakstem rivet.

  • Retained stem.

  • Blind hole, one-sided installation capability.

  • High corrosion resistance.

  • High shear and tensile strength.

  • Good hole fill.

  • Provides a large blind side bearing area against the rear sheet.

  • Ideal for applications requiring elevated temperatures.

  • Spreads the tail bearing load/clamp load on the rear sheet.

  • Ideal for use in thin sheet materials.

  • Compensates for irregular, oversized, slotted, or misaligned holes.

  • Can stop movement in non-standard holes.

  • Provides strong, vibration resistant joints.

  • Breakstem fasteners can be customized to meet unique assembly requirements.


    • Specifications:


  • Sizes: 3.2mm to 4.8mm (1/8" to 3/16")

  • Material: Stainless steel A2 and A4/316 Grade

  • Headform: Dome
