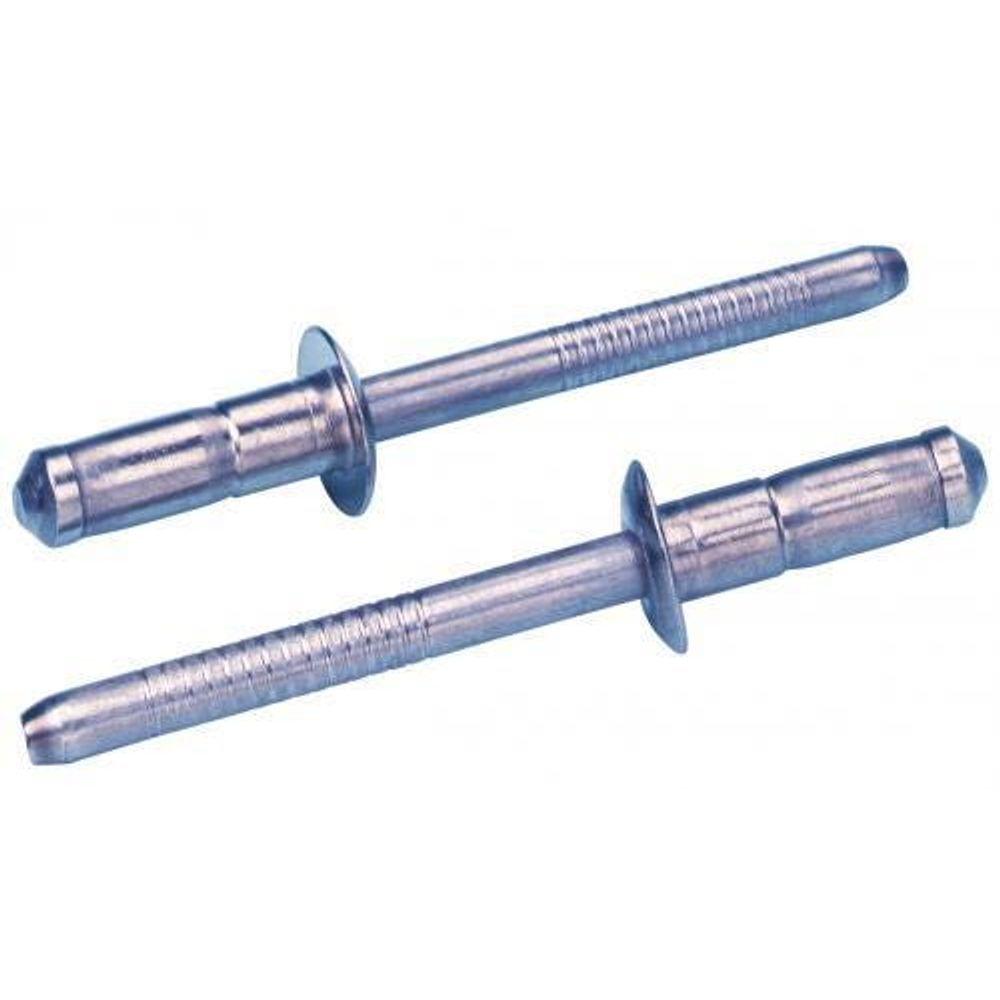

AVDEL 4.0mm [5/32] Stainless Steel / Stainless Steel Avinox Rivets - 0BE61-00512
Cód:
0BE61-00512
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3-5 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material

Avinox

Product name3 - 5 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Nominal Diameter mm4.0
Nominal Diameter Inches4.0mm [5/32]
Body MaterialStainless Steel
Mandrel MaterialStainless Steel
Finish-BodyPolished
Finish- MandrelNone
Head StyleDome
Min grip mm3
Max grip mm5
Min Grip Inches0.118
Max Grip Inches0.197
Min Hole Size mm4.1
Max Hole Size mm4.3
Min Holes Size Inches0.161
Max Hole Size Inches0.169
Max Body Length Inches0.508
Max Secondary Protrusion mm12.9
Max Secondary Protrusion Inches0.508
Flange Diameter mm Max8.0
Flange Diameter inches Max0.315
Flange Thickness mm Max1.5
Flange Thickness Inches Max0.059
Shear kN5.2
Tensile kN4
Max Body Length mm12.9
Shear lbf1169
Tensile lbf899

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight29.32148
Minimum Order Quantity5000
Features

    Fast Facts:


  • Non-structural breakstem rivet.

  • Retained stem.

  • Blind hole, one-sided installation capability.

  • High corrosion resistance.

  • High shear and tensile strength.

  • Good hole fill.

  • Provides a large blind side bearing area against the rear sheet.

  • Ideal for applications requiring elevated temperatures.

  • Spreads the tail bearing load/clamp load on the rear sheet.

  • Ideal for use in thin sheet materials.

  • Compensates for irregular, oversized, slotted, or misaligned holes.

  • Can stop movement in non-standard holes.

  • Provides strong, vibration resistant joints.

  • Breakstem fasteners can be customized to meet unique assembly requirements.


    • Specifications:


  • Sizes: 3.2mm to 4.8mm (1/8" to 3/16")

  • Material: Stainless steel A2 and A4/316 Grade

  • Headform: Dome
