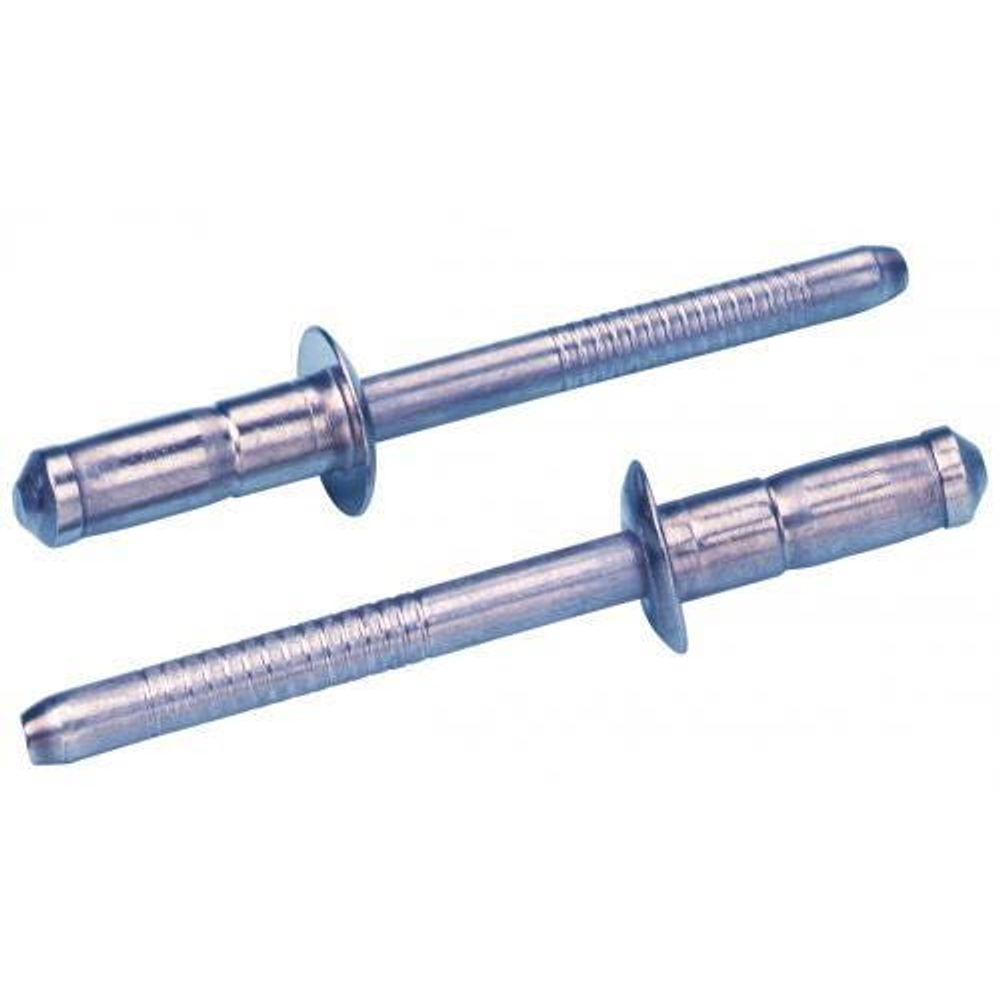

AVDEL 3.2mm [1/8] Stainless Steel / Stainless Steel Avinox Rivets - 0BE61-00408
Cód:
0BE61-00408
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1-3 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material

Avinox

Product name1 - 3 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Nominal Diameter mm3.2
Nominal Diameter Inches3.2mm [1/8]
Body MaterialStainless Steel
Mandrel MaterialStainless Steel
Finish-BodyPolished
Finish- MandrelNone
Head StyleDome
Min grip mm1
Max grip mm3
Min Grip Inches0.039
Max Grip Inches0.118
Min Hole Size mm3.3
Max Hole Size mm3.4
Min Holes Size Inches0.13
Max Hole Size Inches0.134
Max Body Length Inches0.354
Max Secondary Protrusion mm9.0
Max Secondary Protrusion Inches0.354
Flange Diameter mm Max6.6
Flange Diameter inches Max0.26
Flange Thickness mm Max1.1
Flange Thickness Inches Max0.043
Shear kN1.6
Tensile kN2
Max Body Length mm9.0
Shear lbf360
Tensile lbf450

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight26.68475
Minimum Order Quantity8000
Features

    Fast Facts:


  • Non-structural breakstem rivet.

  • Retained stem.

  • Blind hole, one-sided installation capability.

  • High corrosion resistance.

  • High shear and tensile strength.

  • Good hole fill.

  • Provides a large blind side bearing area against the rear sheet.

  • Ideal for applications requiring elevated temperatures.

  • Spreads the tail bearing load/clamp load on the rear sheet.

  • Ideal for use in thin sheet materials.

  • Compensates for irregular, oversized, slotted, or misaligned holes.

  • Can stop movement in non-standard holes.

  • Provides strong, vibration resistant joints.

  • Breakstem fasteners can be customized to meet unique assembly requirements.


    • Specifications:


  • Sizes: 3.2mm to 4.8mm (1/8" to 3/16")

  • Material: Stainless steel A2 and A4/316 Grade

  • Headform: Dome
