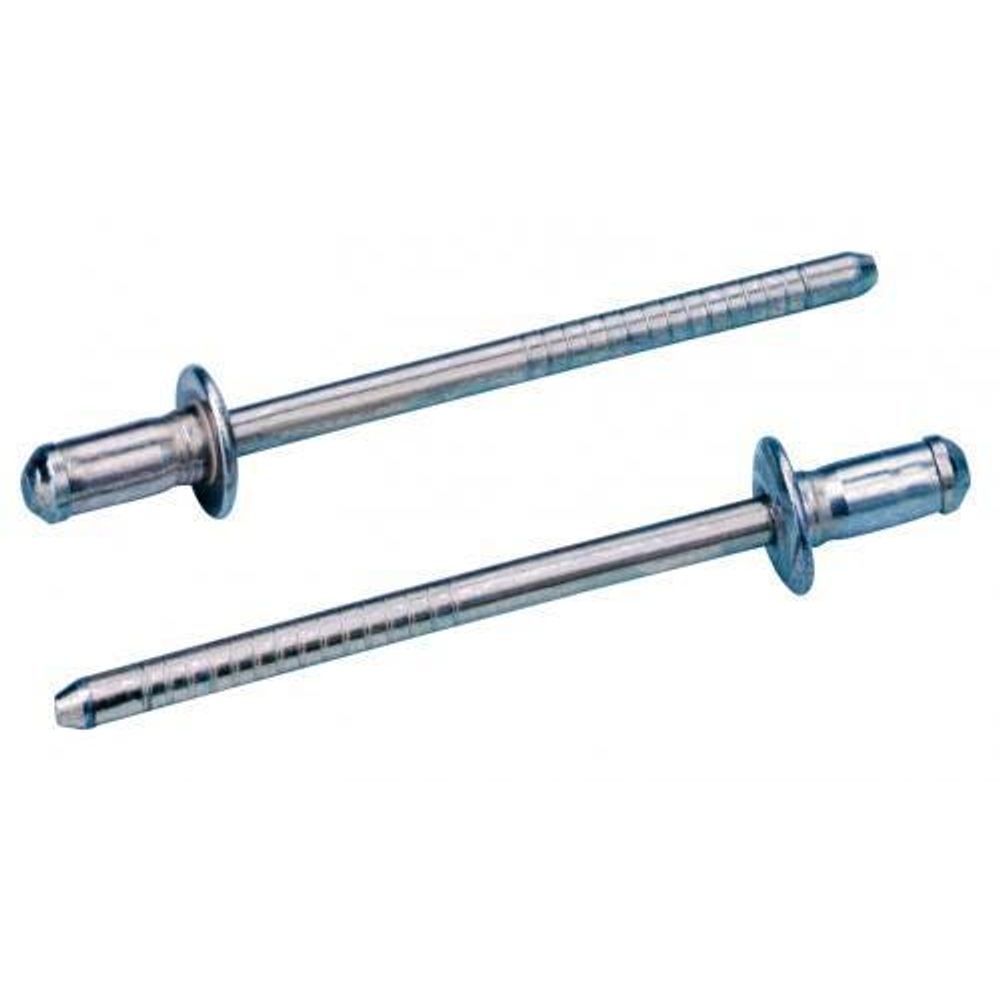

AVDEL 3.2mm [1/8] Stainless Steel / Stainless Steel Avinox Rivets - 0BE61-00414
Cód:
0BE61-00414
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

5-7 mm Grip with 3.2 mm Nominal Diameter in Dome Head Style with Stainless Steel Body Material and Stainless Steel Mandrel Material

Avinox

Product name5 - 7 Grip in Stainless Steel/Stainless Steel, Avinox Non-Structural Blind Rivets
Nominal Diameter mm3.2
Nominal Diameter Inches3.2mm [1/8]
Body MaterialStainless Steel
Mandrel MaterialStainless Steel
Finish-BodyPolished
Finish- MandrelNone
Head StyleDome
Min grip mm5
Max grip mm7
Min Grip Inches0.197
Max Grip Inches0.276
Min Hole Size mm3.3
Max Hole Size mm3.4
Min Holes Size Inches0.13
Max Hole Size Inches0.134
Max Body Length Inches0.555
Max Secondary Protrusion mm14.1
Max Secondary Protrusion Inches0.555
Flange Diameter mm Max6.6
Flange Diameter inches Max0.26
Flange Thickness mm Max1.1
Flange Thickness Inches Max0.043
Shear kN3.2
Tensile kN2
Max Body Length mm14.1
Shear lbf719
Tensile lbf450

default

JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight24.8946
JDE_HTS_Code8308206000
JDE_Weight_Per_UOMM
JDE_Weight_UOMLB
Minimum Order Quantity6000
Features

    Fast Facts:


  • Non-structural breakstem rivet.

  • Retained stem.

  • Blind hole, one-sided installation capability.

  • High corrosion resistance.

  • High shear and tensile strength.

  • Good hole fill.

  • Provides a large blind side bearing area against the rear sheet.

  • Ideal for applications requiring elevated temperatures.

  • Spreads the tail bearing load/clamp load on the rear sheet.

  • Ideal for use in thin sheet materials.

  • Compensates for irregular, oversized, slotted, or misaligned holes.

  • Can stop movement in non-standard holes.

  • Provides strong, vibration resistant joints.

  • Breakstem fasteners can be customized to meet unique assembly requirements.


    • Specifications:


  • Sizes: 3.2mm to 4.8mm (1/8" to 3/16")

  • Material: Stainless steel A2 and A4/316 Grade

  • Headform: Dome
