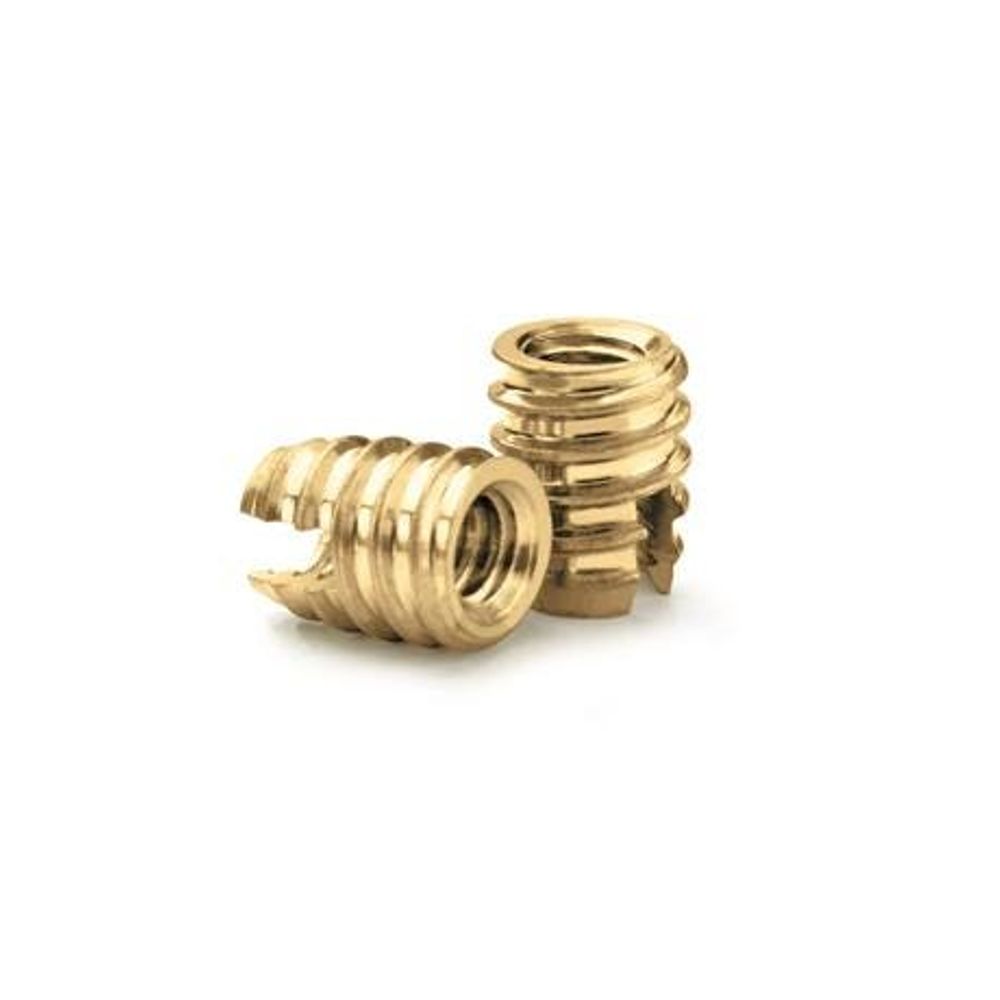

Dodge 1/4-28 Self Threading Flanged Solid Inserts .460 Inch Length - STF250-28
Cód:
STF250-28
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 1/4-28 Inches |
| Length | .460 Inch |
| Pilot Diameter | .302 Inch |
| Flange Diameter | .438 Inch |
| Flange Thickness | .050 Inch |
| MaxHoleDiameterThermoset | .343Inch |
| Minimum Hole Diameter Thermoset | .336 Inch |
| Max Hole Diameter Thermoplastic | .336 Inch |
| Minimum Hole Diameter Thermoplastic | .330 Inch |
| Hole Depth | .557 Inch |
| Counterbore Diameter | .375 Inch |
| Counterbore Depth | .063 Inch |
| JDE_Weight_Per_UOM | M |
|---|---|
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 98 |
| JDE_Weight | 9.44003 |
| Features |
Insert cuts its own thread cleanly and evenly. |
