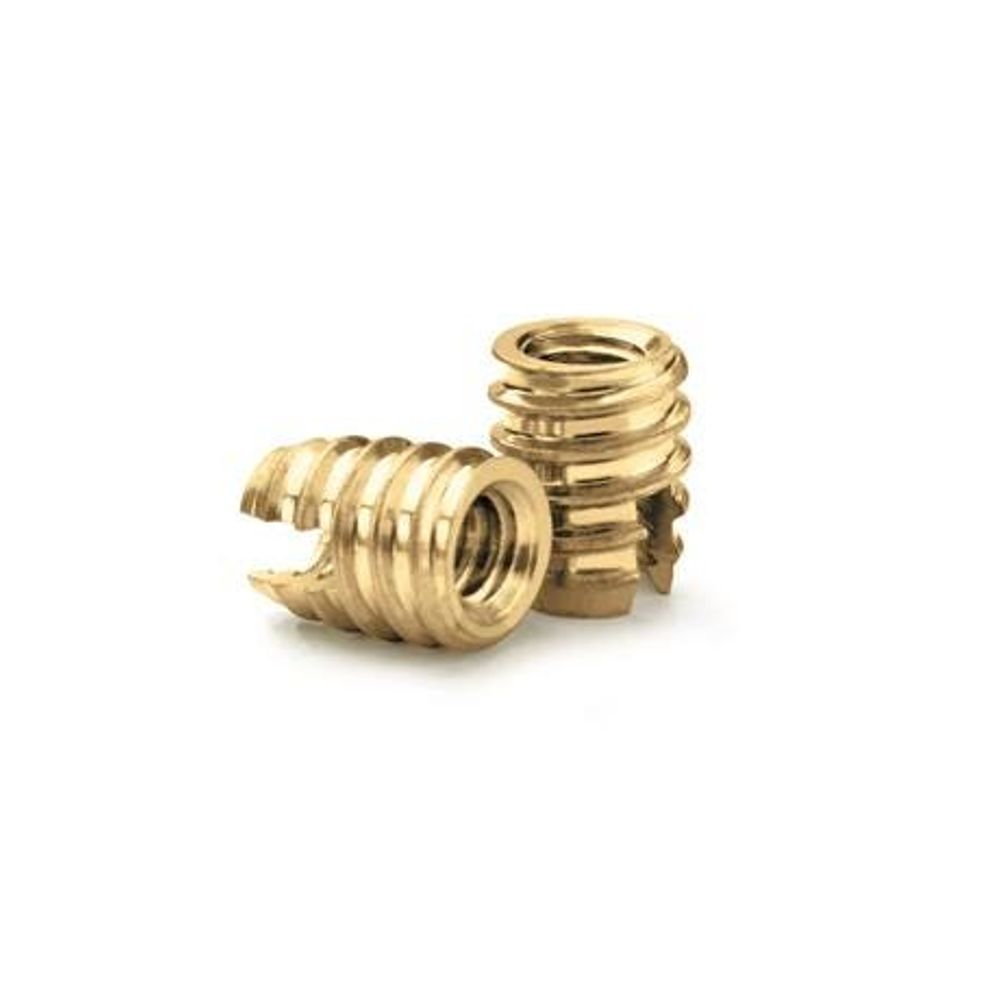

Dodge 10-32 Self Threading Flanged Solid Inserts .404 Inch Length - STF190-32
Cód:
STF190-32
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 10-32 Inches |
| Length | .404 Inch |
| Pilot Diameter | .232 Inch |
| Flange Diameter | .375 Inch |
| Flange Thickness | .040 Inch |
| MaxHoleDiameterThermoset | .270Inch |
| Minimum Hole Diameter Thermoset | .264 Inch |
| Max Hole Diameter Thermoplastic | .264 Inch |
| Minimum Hole Diameter Thermoplastic | .259 Inch |
| Hole Depth | .480 Inch |
| Counterbore Diameter | .270 Inch |
| Counterbore Depth | .056 Inch |
| JDE_Weight_Per_UOM | M |
|---|---|
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 98 |
| JDE_Weight | 6.18828 |
| Features |
Insert cuts its own thread cleanly and evenly. |
