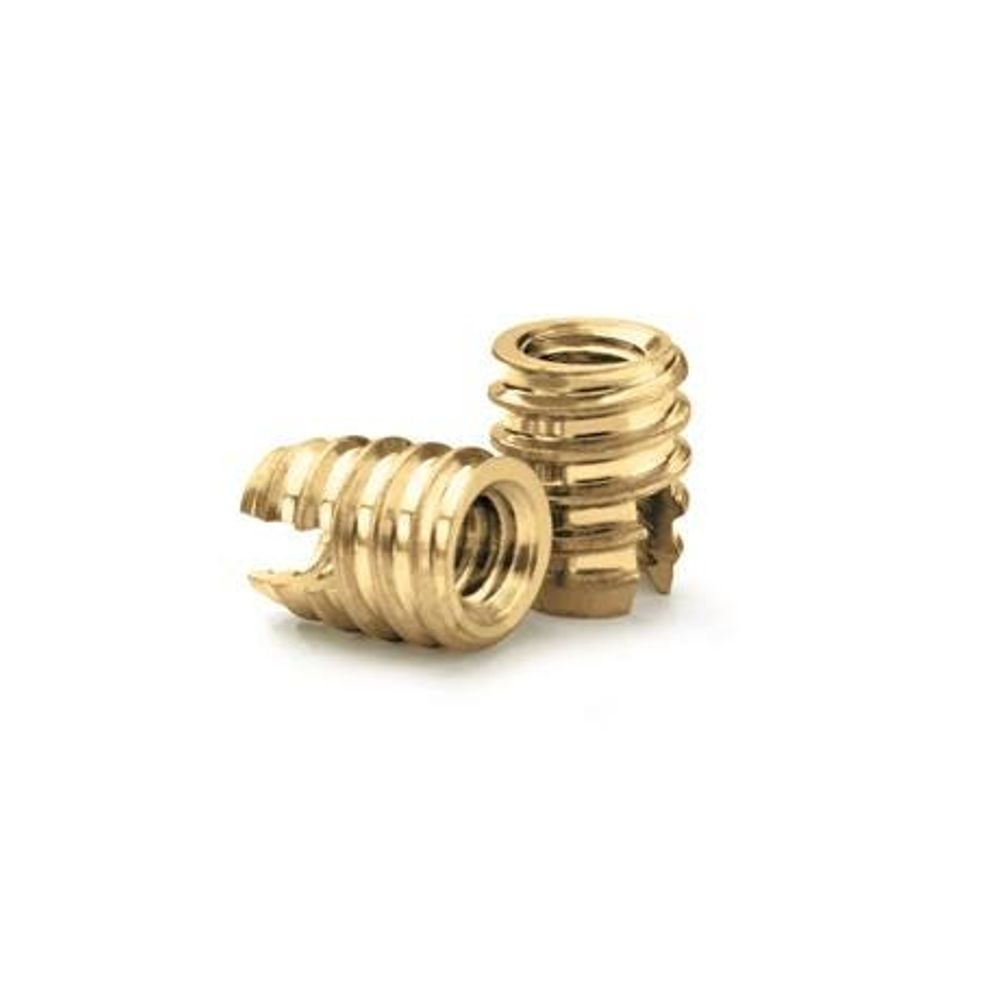

Dodge 4-40 Self Threading Flanged Solid Inserts .298 Inch Length - STF112-40
Cód:
STF112-40
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 4-40 Inches |
| Length | .298 Inch |
| Pilot Diameter | .132 Inch |
| Flange Diameter | .218 Inch |
| Flange Thickness | .025 Inch |
| MaxHoleDiameterThermoset | .156Inch |
| Minimum Hole Diameter Thermoset | .152 Inch |
| Max Hole Diameter Thermoplastic | .152 Inch |
| Minimum Hole Diameter Thermoplastic | .149 Inch |
| Hole Depth | .345 Inch |
| Counterbore Diameter | .172 Inch |
| Counterbore Depth | .042 Inch |
| JDE_Weight_Per_UOM | M |
|---|---|
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 98 |
| JDE_Weight | 1.7115 |
| Features |
Insert cuts its own thread cleanly and evenly. |
