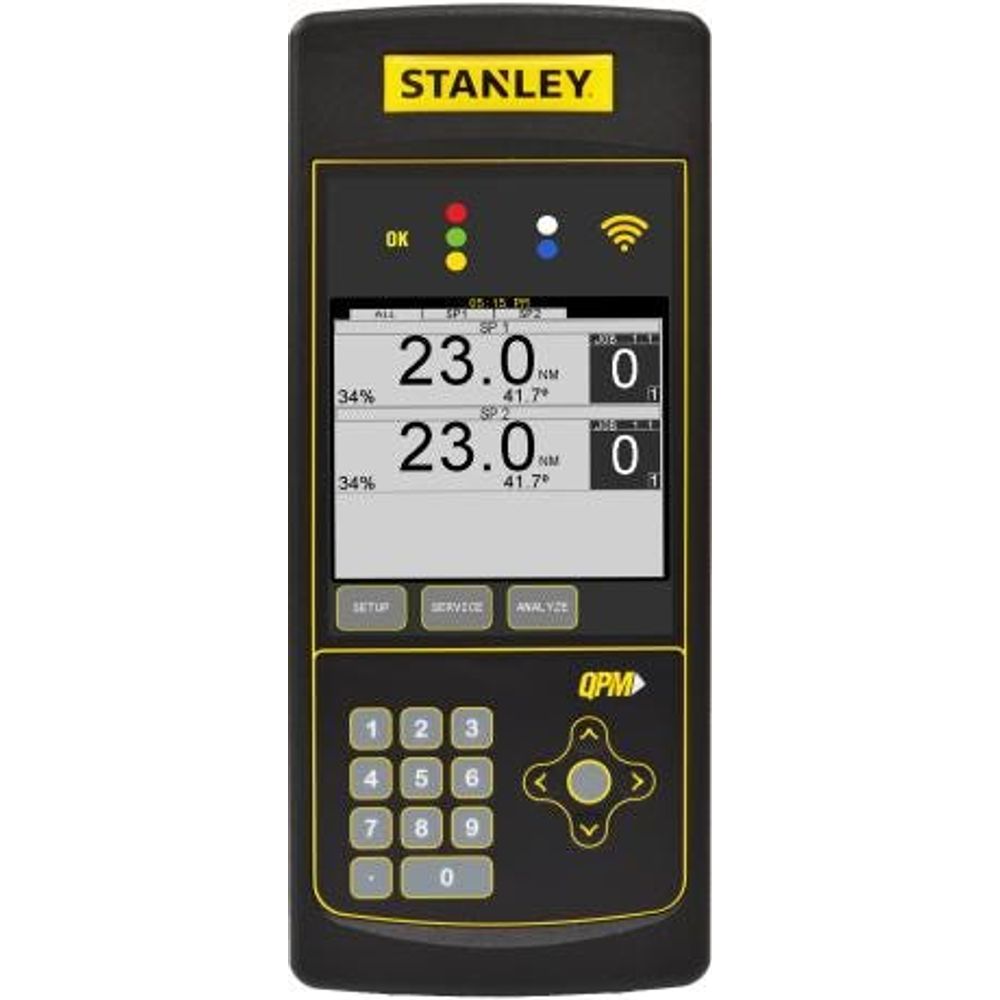

Specialist Lead Wireless Tool Controller - QB5100-XDV
Cód:
QB5100-XDV
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

STANLEY Assembly Technologies Tool Controller A QBE Specialist Series controller featuring support for an industry-leading 24 trailing spindles (without additional software licenses) including direct support for up to 15 cordless trailing spindles, a display, and internal PLC emulation function. Supported Tools: Communications: Ports: Job Features: Accessories & Configuration:

Download 3D Drawings

QB Series Controllers

Display8" Color Touchscreen
No. Spindles6 Wireless, 24 Max
Standalone / TrailingStandalone / Lead
Assignable 24V I/O24V I/O with 8 Inputs and 8 Outputs
Wireless Protocols802.11 b/g/n
STANLEY aTB SupportaTB Port and aTB over Ethernet
Serial PortSerial Port
Supported ProtocolsTCP/IP, OpenProtocol, ToolsNet, PFCS, XML
FieldbusModbus/TCP, Devicenet Follower
Network Ports-1 RJ45 Ethernet Port -1 RJ45 ATB Port -1 RJ45 Spindle Network Port -1 Devicenet Port
Tool ConnectorCordless Only
USB Port1 USB Port
Wireless Tool SupportUp to 15 802.11 Cordless Spindles
Maximum Supported Spindles24 Tools as cordless and trailing spindles
Jobs (Corded & Trailing Spindles)*See Cordless Tool for Job and Storage Specifications
Configurable Options-1 Wall Mount Bracket (Default) - Country Specific Power Cable - I/O Cable Options
