Expert Lead Tool Controller - QB4101-XEV
Cód:
QB4101-XEV
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

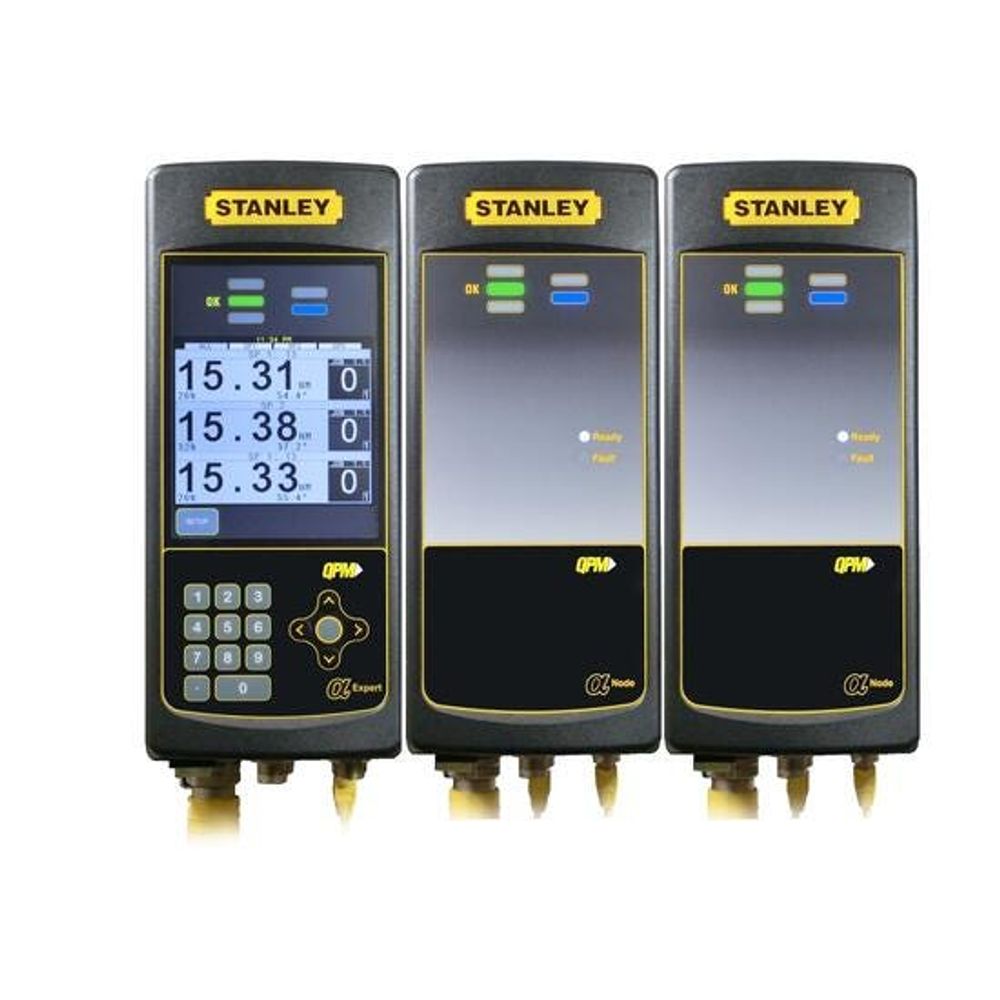

STANLEY Assembly Technologies Tool Controller A QBE Expert Series controller featuring one corded spindle, support for an industry-leading 24 trailing spindles (without additional software licenses) including direct support for up to 15 cordless trailing spindles, a display, and internal PLC emulation function. Supported Tools: Communications: Ports: Job Features: Accessories & Configuration:

Download 3D Drawings

QB Series Controllers

Display8" Color Touchscreen
No. Spindles1 Corded, 6 Wireless, 24 Max
Standalone / TrailingStandalone / Lead
Assignable 24V I/O24V I/O with 8 Inputs and 8 Outputs
Wireless Protocols802.11 b/g/n
STANLEY aTB SupportaTB Port and aTB over Ethernet
Serial PortSerial Port
Supported ProtocolsTCP/IP, OpenProtocol, ToolsNet, PFCS, XML
FieldbusModbus/TCP, Ethernet I/P Follower
Network Ports-1 RJ45 Ethernet Port -1 RJ45 ATB Port -1 RJ45 Spindle Network Port -2 Ethernet/IP Ports
Tool Connector1 Tool Connector (EB, E, EA)
USB Port1 USB Port
Wireless Tool Support-Up to 15 Cordless Spindles -Up to 24 Total Trailing Spindles (Includes Cordless Tools)
Maximum Supported Spindles24 Corded, Cordless, and Trailing Spindles
Jobs (Corded & Trailing Spindles)-255 Jobs -99 Tasks per job -12 Steps per task -30,000 Fastening Cycle Traces
Configurable Options-1 Wall Mount Bracket (Default) - Country Specific Power Cable - I/O Cable Options
