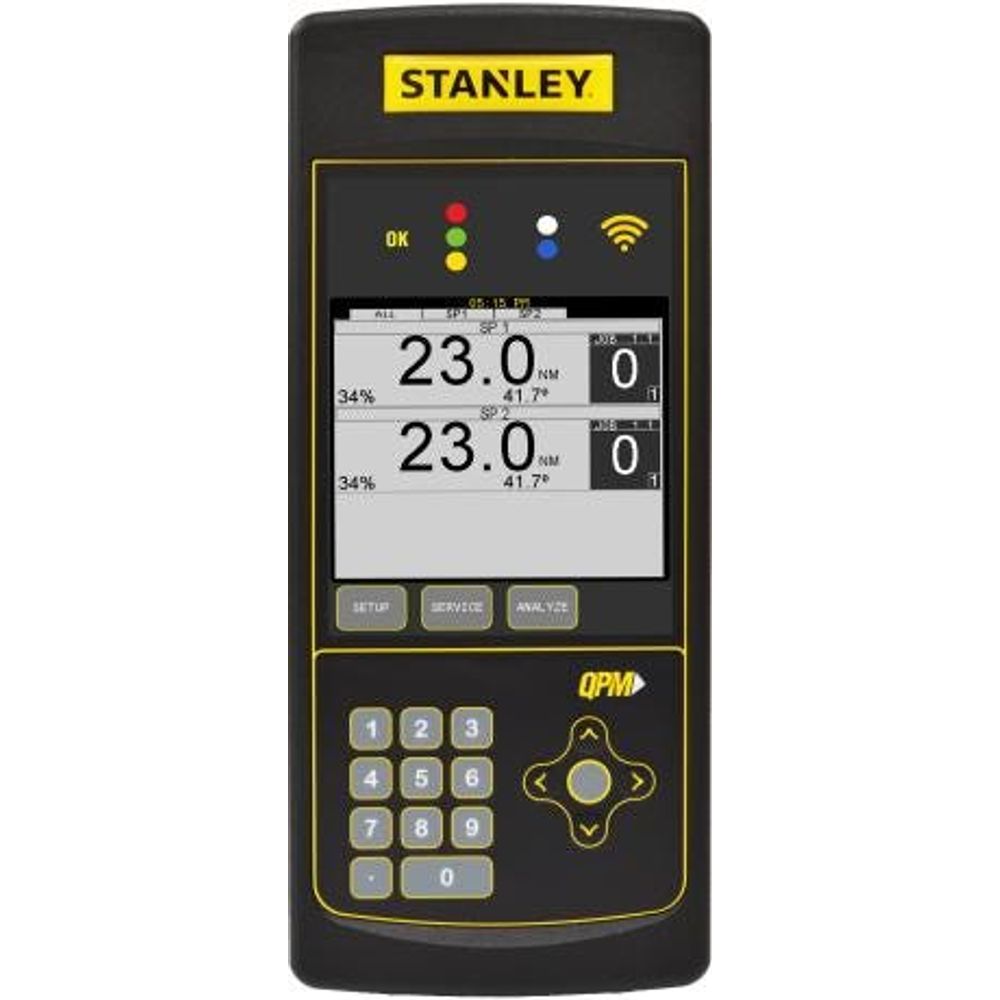

Specialist Lead Wireless Tool Controller - QB5100-XMV-M
Cód:
QB5100-XMV-M
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

STANLEY Assembly Technologies Tool Controller A QBE Specialist Series controller featuring support for an industry-leading 24 trailing spindles (without additional software licenses) including direct support for up to 15 cordless trailing spindles, a display, and internal PLC emulation function. Supported Tools: Communications: Ports: Job Features: Accessories & Configuration:

Download 3D Drawings

QB Series Controllers

Display8" Color Touchscreen
No. Spindles6 Wireless, 24 Max
Standalone / TrailingStandalone / Lead
Assignable 24V I/O24V I/O with 8 Inputs and 8 Outputs
Wireless Protocols802.11 b/g/n
STANLEY aTB SupportaTB Port and aTB over Ethernet
Serial PortSerial Port
Supported ProtocolsTCP/IP, OpenProtocol, ToolsNet, PFCS, XML
FieldbusModbus/TCP, Ethernet I/P Follower
Network Ports-1 RJ45 Ethernet Port -1 RJ45 ATB Port -1 RJ45 Spindle Network Port -2 M12 Ethernet/IP Ports
Stop Port1 Spindle Disconnect Port
Tool ConnectorCordless Only
USB Port1 USB Port
Wireless Tool SupportUp to 15 802.11 Cordless Spindles
Maximum Supported Spindles24 Tools as cordless and trailing spindles
Jobs (Corded & Trailing Spindles)*See Cordless Tool for Job and Storage Specifications
Configurable Options-1 Wall Mount Bracket (Default) - Country Specific Power Cable - I/O Cable Options
