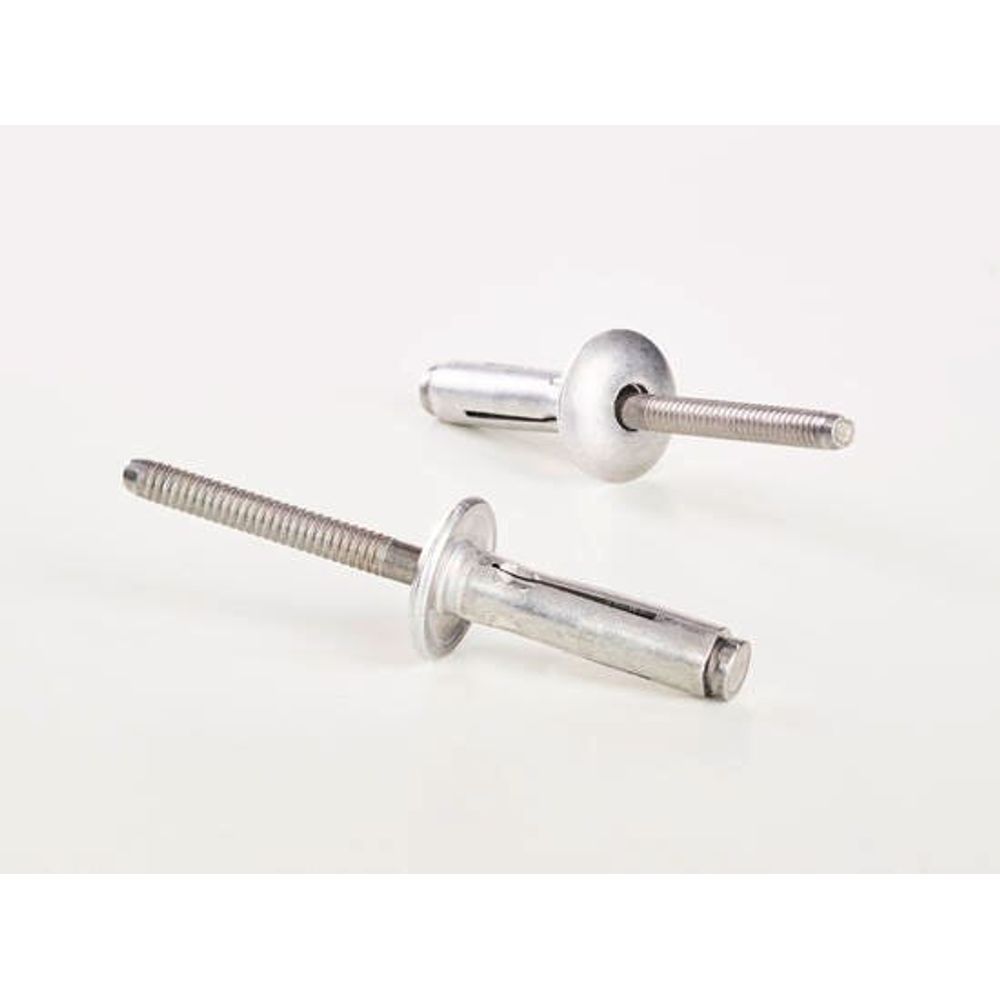

Klamp-Tite (structural) 6.4mm [1/4] (8) Aluminum / Aluminum Structural Rivet Nuts

Descrição do Produto

4.75-9.53 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

product name	4.7498-9.525 mm Aluminum/Aluminum Klamp-Tite (structural) Structural Blind Rivets
nominal Diameter	6.4mm [1/4] (8)
Body Material	Aluminum
Mandrel Material	Aluminum
Finish-Body	None
Finish- Mandrel	None
Head Style	Dome
Min grip mm	4.75
Max grip mm	9.53
Min Grip Inches	0.187
Max Grip Inches	0.375
Min Hole Size mm	6.4
Max Hole Size mm	6.65
Min Holes Size Inches	0.252
Max Hole Size Inches	0.262
Max Body Length mm	26.67
Max Body Length Inches	1.05
Flange Diameter mm	14.61
Flange Diameter inches	0.575
Flange Thickness mm	2.87
Flange Thickness Inches	0.113
Shear lbf	1250
Tensile lbf	700
Brand	Avdel

JDE_Weight_UOM	LB
JDE_Weight_Per_UOM	M
JDE_HTS_Code	8308206000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	98
JDE_Weight	6.78033
Minimum Order Quantity	2000
Features	Fast Facts: Structural breakstem rivet. Stem is mechanically locked into body. Provides very strong, vibration resistant joints. Blind hole, one-sided installation capability. Split tail formation spreads the tail bearing load/clamp load on the rear sheet. Ideal for use in thin sheet materials offering high resistance to pull-out loads. Multi-grip capability accommodates wide variations in material thickness. Ideal for use in very soft or brittle materials. Visible lock for quick and easy inspection. Optional under head washer provides a weather-proof seal. Breakstem fasteners can be customized to meet unique assembly requirements. Specifications: Sizes: 4.8 mm and 6.4 mm (3/16" and 1/4") Material: Aluminum alloy Headform: Protruding
