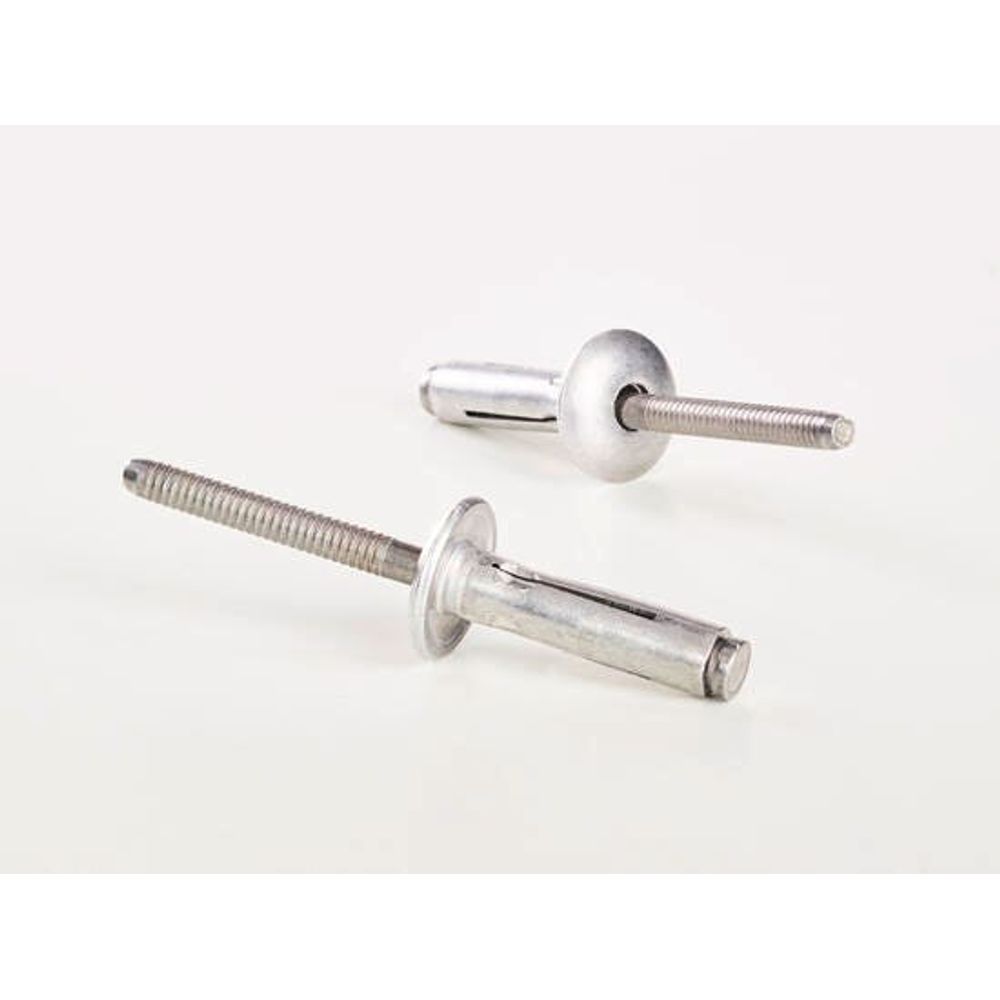

Klamp-Tite (structural) 6.4mm [1/4] (8) Aluminum / Aluminum Structural Rivet Nuts - BAPKTR-08-04
Cód:
BAPKTR-08-04
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.52-6.35 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

Klamp-Tite (structural)

product name1.524-6.35 mm Aluminum/Aluminum Klamp-Tite (structural) Structural Blind Rivets
nominal Diameter6.4mm [1/4] (8)
Body MaterialAluminum
Mandrel MaterialAluminum
Finish-BodyNone
Finish- MandrelNone
Head StyleDome
Min grip mm1.52
Max grip mm6.35
Min Grip Inches0.06
Max Grip Inches0.25
Min Hole Size mm6.4
Max Hole Size mm6.65
Min Holes Size Inches0.252
Max Hole Size Inches0.262
Max Body Length mm23.5
Max Body Length Inches0.925
Flange Diameter mm14.61
Flange Diameter inches0.575
Flange Thickness mm2.87
Flange Thickness Inches0.113
Shear lbf1250
Tensile lbf700
BrandAvdel

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days112
JDE_Weight6.577
Minimum Order Quantity1
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Stem is mechanically locked into body.
  • Provides very strong, vibration resistant joints.
  • Blind hole, one-sided installation capability.
  • Split tail formation spreads the tail bearing load/clamp load on the rear sheet.
  • Ideal for use in thin sheet materials offering high resistance to pull-out loads.
  • Multi-grip capability accommodates wide variations in material thickness.
  • Ideal for use in very soft or brittle materials.
  • Visible lock for quick and easy inspection.
  • Optional under head washer provides a weather-proof seal.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 4.8 mm and 6.4 mm (3/16" and 1/4")
  • Material: Aluminum alloy
  • Headform: Protruding
