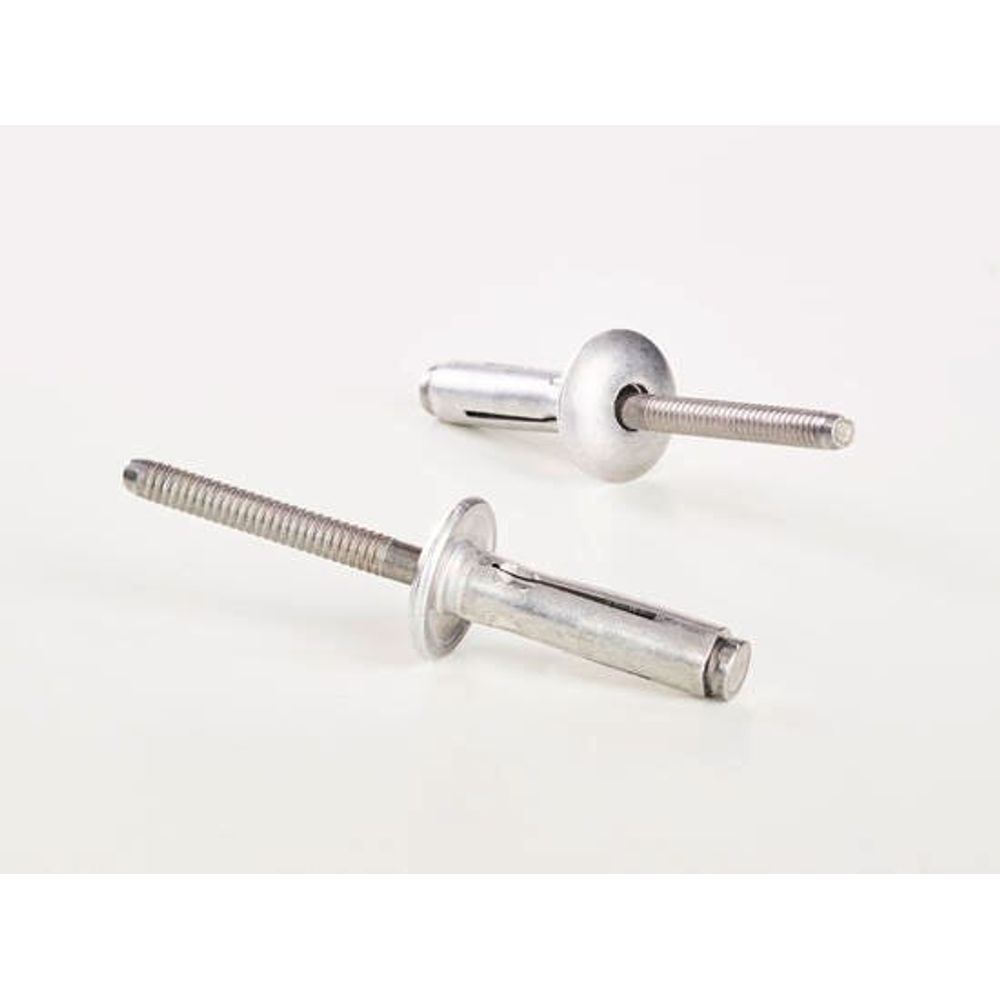

Klamp-Tite (structural) 4.8mm [3/16] (6) Aluminum / Aluminum Structural Rivet Nuts - BAPKTR-06-04

Cód:

BAPKTR-06-04

Opinião dos Consumidores:0

Avdel

Klamp-Tite (structural) 4.8mm [3/16] (6) Aluminum / Aluminum Structural Rivet Nuts - BAPKTR-06-04

Cód:

BAPKTR-06-04

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

1.27-6.35 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

Klamp-Tite (structural)

product name	1.27-6.35 mm Aluminum/Aluminum Klamp-Tite (structural) Structural Blind Rivets
nominal Diameter	4.8mm [3/16] (6)
Body Material	Aluminum
Mandrel Material	Aluminum
Finish-Body	None
Finish- Mandrel	None
Head Style	Dome
Min grip mm	1.27
Max grip mm	6.35
Min Grip Inches	0.05
Max Grip Inches	0.25
Min Hole Size mm	5.18
Max Hole Size mm	5.31
Min Holes Size Inches	0.204
Max Hole Size Inches	0.209
Max Body Length mm	22.61
Max Body Length Inches	0.89
Flange Diameter mm	11.68
Flange Diameter inches	0.46
Flange Thickness mm	2.24
Flange Thickness Inches	0.088
Shear lbf	700
Tensile lbf	450
Brand	Avdel

default

Features	Fast Facts: Structural breakstem rivet. Stem is mechanically locked into body. Provides very strong, vibration resistant joints. Blind hole, one-sided installation capability. Split tail formation spreads the tail bearing load/clamp load on the rear sheet. Ideal for use in thin sheet materials offering high resistance to pull-out loads. Multi-grip capability accommodates wide variations in material thickness. Ideal for use in very soft or brittle materials. Visible lock for quick and easy inspection. Optional under head washer provides a weather-proof seal. Breakstem fasteners can be customized to meet unique assembly requirements. Specifications: Sizes: 4.8 mm and 6.4 mm (3/16" and 1/4") Material: Aluminum alloy Headform: Protruding

Features

Fast Facts:

Structural breakstem rivet.
Stem is mechanically locked into body.
Provides very strong, vibration resistant joints.
Blind hole, one-sided installation capability.
Split tail formation spreads the tail bearing load/clamp load on the rear sheet.
Ideal for use in thin sheet materials offering high resistance to pull-out loads.
Multi-grip capability accommodates wide variations in material thickness.
Ideal for use in very soft or brittle materials.
Visible lock for quick and easy inspection.
Optional under head washer provides a weather-proof seal.
Breakstem fasteners can be customized to meet unique assembly requirements.

Specifications:
Sizes: 4.8 mm and 6.4 mm (3/16" and 1/4")
Material: Aluminum alloy
Headform: Protruding
