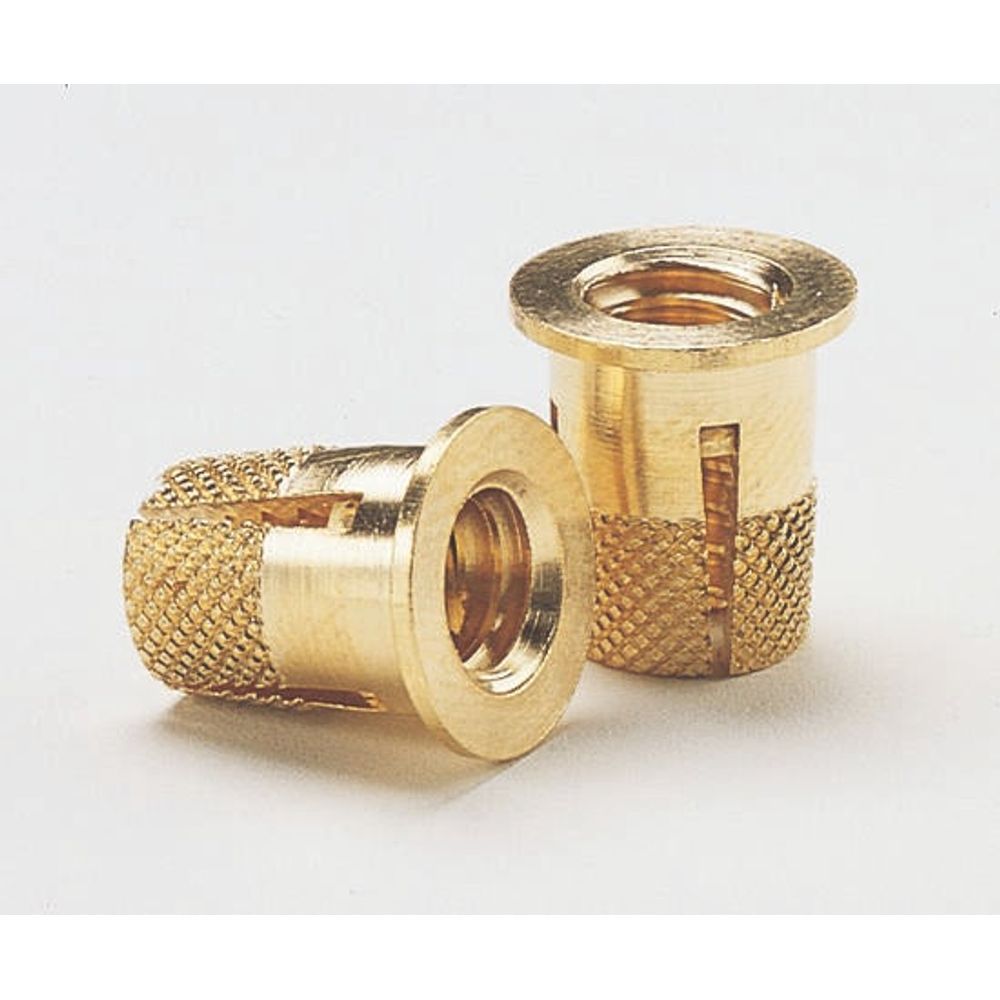

Dodge M6x1 Flange Expansion Solid Inserts 11.13 mm Length - 70317-6-111
Cód:
70317-6-111
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | M6x1 Metric |
| Length | 11.13 mm |
| Body Diameter | 7.93 mm |
| Flange Diameter | 10.32 mm |
| Minimum Threaded Length | 9.27 mm |
| Hole Diameter Thermoset | 8.00 mm |
| Hole Depth | 11.10 mm |
| Minimum Boss Diameter | 15.90 mm |
| Counterbore Diameter | 10.67 mm |
| Counterbore Depth | 0.86 mm |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | CN |
| JDE_Lead_Time_Days | 140 |
| JDE_Weight | 8.79932 |
| Features |
|
