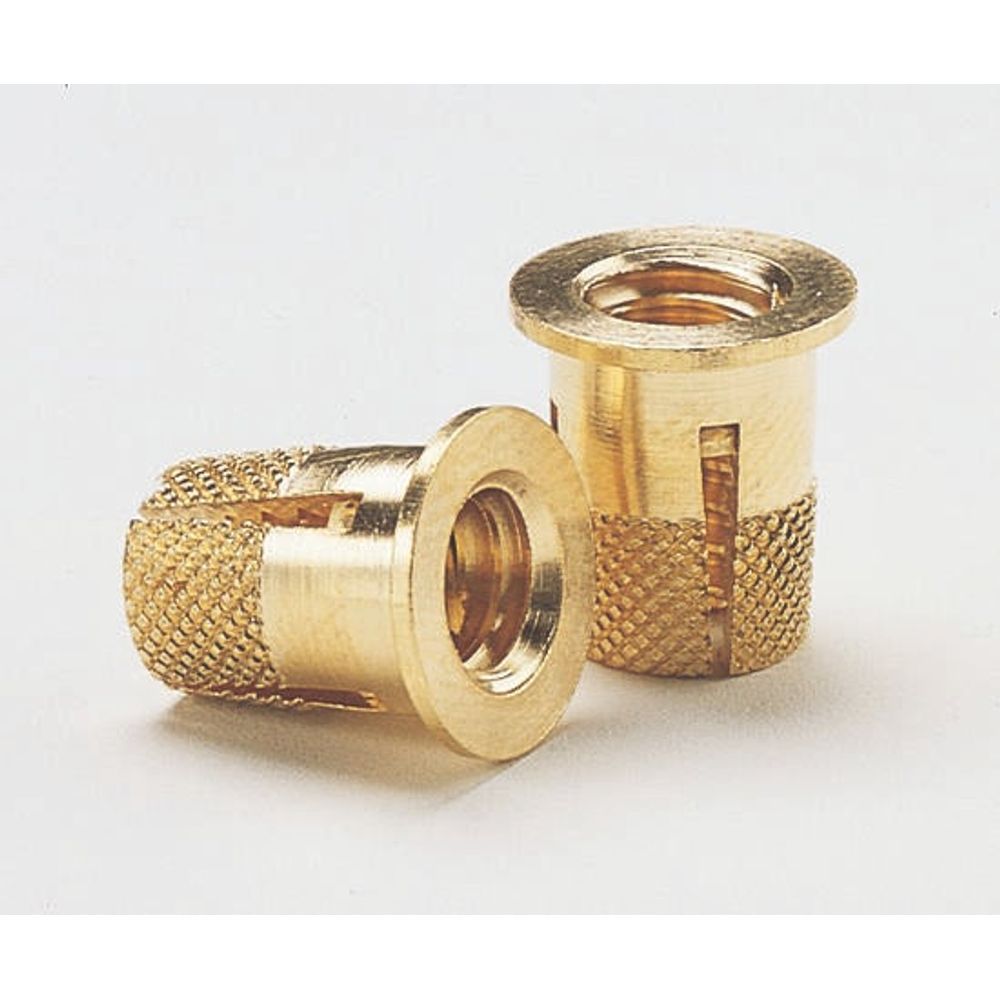

Dodge 8-32 Flange Expansion Solid Inserts .281 Inch Length - 70315-2-281
Cód:
70315-2-281
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 8-32 Inches |
| Length | .281 Inch |
| Body Diameter | .219 Inch |
| Flange Diameter | .281 Inch |
| Minimum Threaded Length | .209 Inch |
| Hole Diameter Thermoset | .221 Inch |
| Hole Depth | .281 Inch |
| Minimum Boss Diameter | .438 Inch |
| Counterbore Diameter | .296 Inch |
| Counterbore Depth | .034 Inch |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | CN |
| JDE_Lead_Time_Days | 140 |
| JDE_Weight | 3.01059 |
| Features |
|
