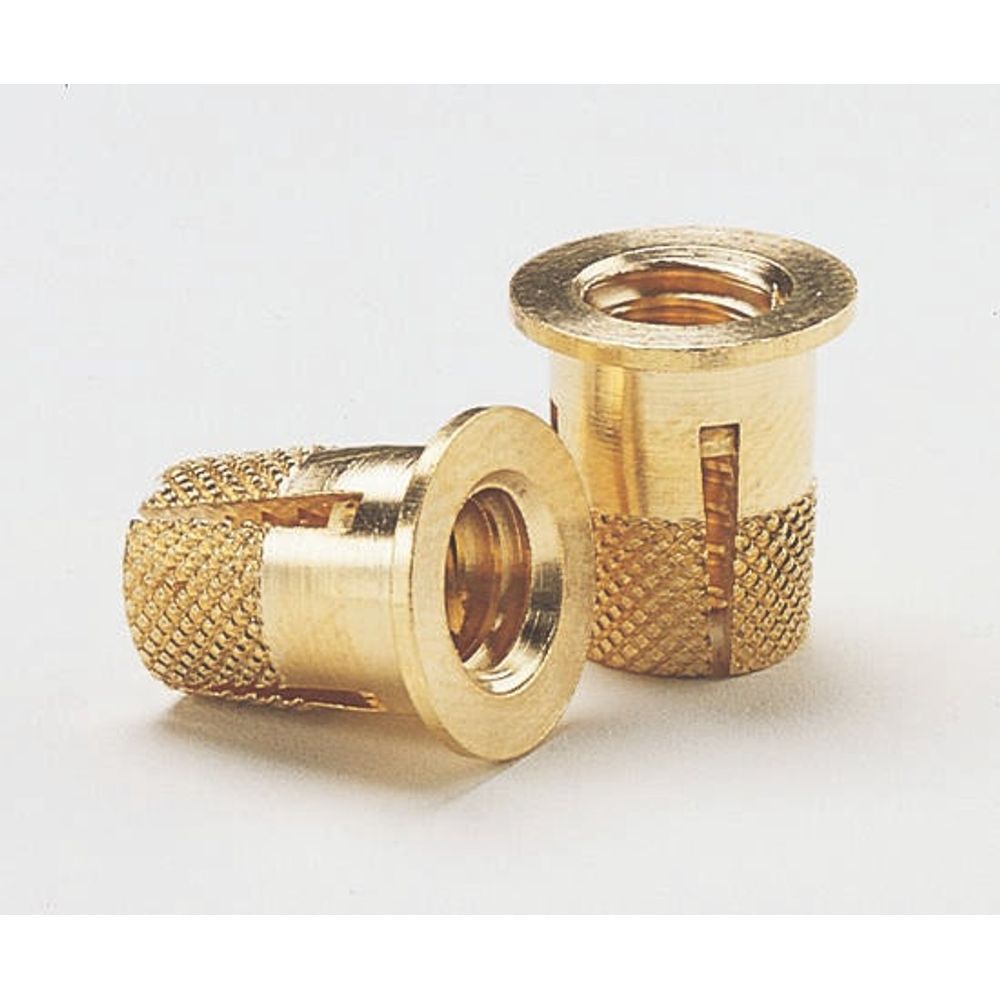

Dodge M5x0.8 Flange Expansion Solid Inserts 7.95 mm Length - 70317-5-080
Cód:
70317-5-080
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | M5x0.8 Metric |
| Length | 7.95 mm |
| Body Diameter | 6.35 mm |
| Flange Diameter | 7.93 mm |
| Minimum Threaded Length | 6.10 mm |
| Hole Diameter Thermoset | 6.40 mm |
| Hole Depth | 8.00 mm |
| Minimum Boss Diameter | 12.70 mm |
| Counterbore Diameter | 8.31 mm |
| Counterbore Depth | 0.86 mm |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | CN |
| JDE_Lead_Time_Days | 126 |
| JDE_Weight | 3.82725 |
| Features |
|
