0.25 - 3 mm Steel Eurosert Rivet Nuts - 39006-75030
Cód:
39006-75030
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

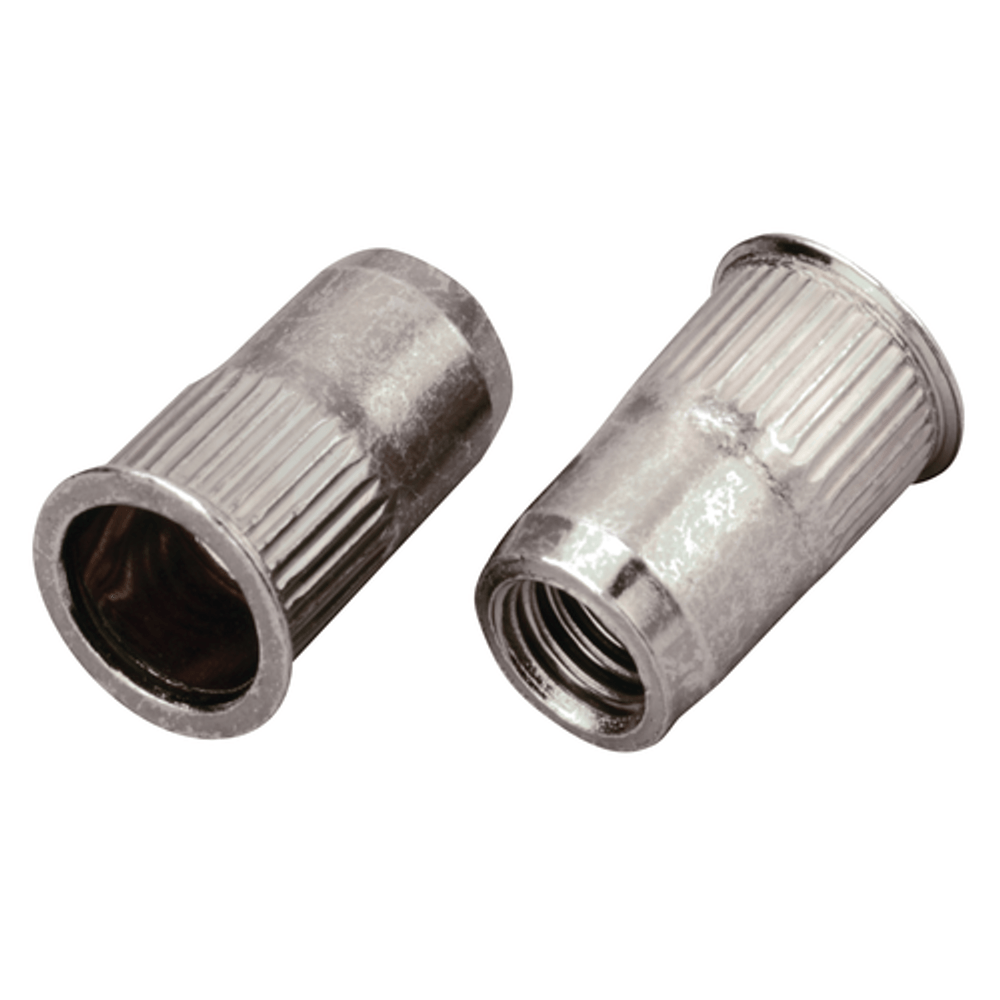

Eurosert Steel 0.25 - 3 mm Low Profile Round, Knurled, Rivet Nuts

Eurosert

Description0.25 - 3 mm Low Profile Round, Knurled, Steel Eurosert Rivet Nuts
Product familyEurosert
MaterialSteel
Open / ClosedOpen
Head StyleLow Profile
Body StyleRound, Knurled,
ThreadM5
Min grip mm0.25
Max grip mm3.0
Min Hole Size mm7.0
Max Hole Size mm7.1
Nominal Body Length mm12.7
Max Flange Diameter mm7.8
Max Flange Thickness mm0.59

default

JDE_HTS_Code7318190000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
Minimum Order Quantity5000
Features

    Fast Facts:


  • Can be used in very thin sheet materials from 0.25mm (0.01").

  • Blind hole, one-sided installation capability.

  • Double diameter body and lead-in chamfer provide easy insertion into hole.

  • Provide a female thread-in application.

  • Clamps two or more sheets of material together, within the grip range.

  • Low-profile version allows near-flush fit to application.

  • Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out.

  • Large-flange version can be used as a spacer and can be supplied with an underhead seal.

  • For hard metric hole sizes.

  • Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication.



    • Specifications:


  • Thread Sizes: M3-M10

  • Material: Steel, stainless steel

  • Headforms: Low profile and large flange

  • Body: With or without splines

  • Hole Size: Metric
