3 - 5.5 mm Steel Eurosert Rivet Nuts - 09408-72825

Cód:

09408-72825

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

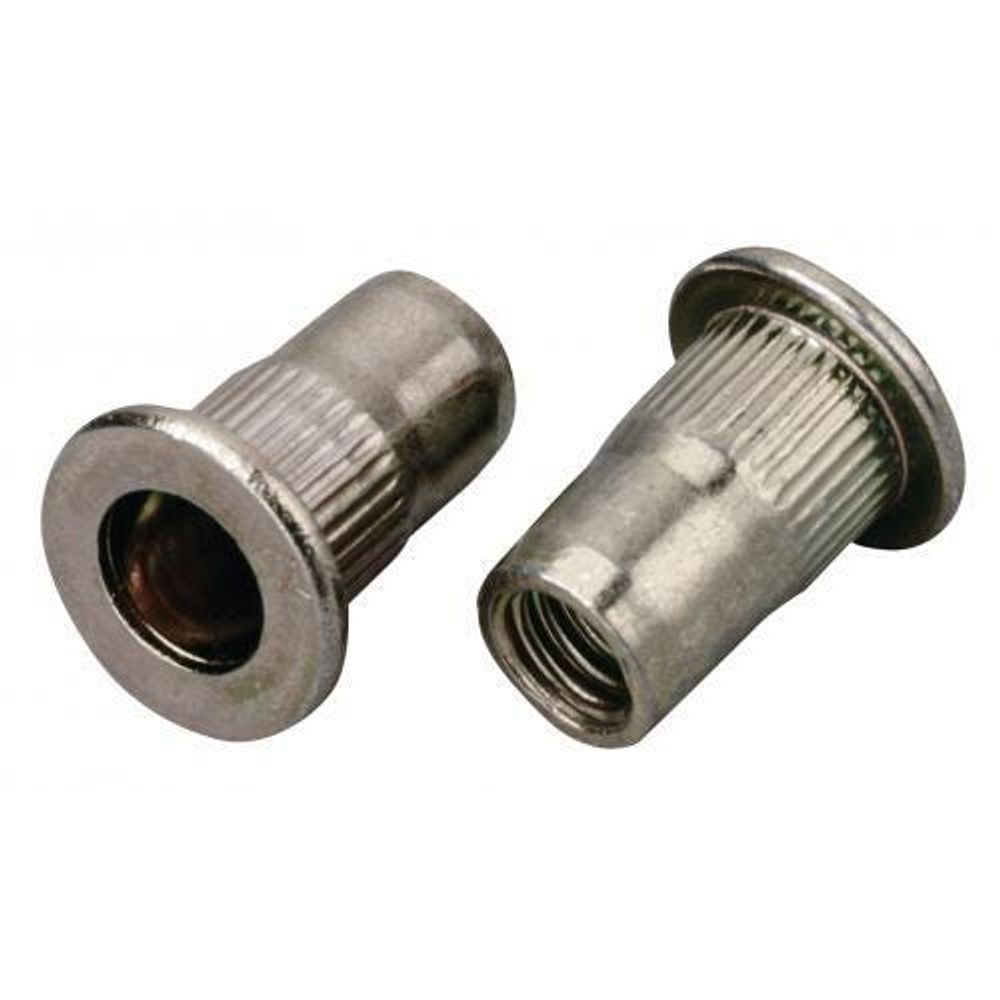

Eurosert Steel 3 - 5.5 mm Large Flange Round, Knurled Rivet Nuts

Eurosert

Description	3 - 5.5 mm Large Flange Round, Knurled Steel Eurosert Rivet Nuts
Product family	Eurosert
Material	Steel
Open / Closed	Open
Head Style	Large Flange
Body Style	Round, Knurled
Thread	M8
Min grip mm	3.0
Max grip mm	5.5
Min Hole Size mm	11.0
Max Hole Size mm	11.1
Nominal Body Length mm	20.0
Max Flange Diameter mm	16.4
Max Flange Thickness mm	1.63

default

JDE_Weight_UOM	LB
JDE_Weight_Per_UOM	M
JDE_HTS_Code	7318190000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	182
JDE_Weight	13.93321
Minimum Order Quantity	1000
Features	Fast Facts: Can be used in very thin sheet materials from 0.25mm (0.01"). Blind hole, one-sided installation capability. Double diameter body and lead-in chamfer provide easy insertion into hole. Provide a female thread-in application. Clamps two or more sheets of material together, within the grip range. Low-profile version allows near-flush fit to application. Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out. Large-flange version can be used as a spacer and can be supplied with an underhead seal. For hard metric hole sizes. Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication. Specifications: Thread Sizes: M3-M10 Material: Steel, stainless steel Headforms: Low profile and large flange Body: With or without splines Hole Size: Metric
