0.25 - 2 mm Steel Eurosert Rivet Nuts - 39006-74020
Cód:
39006-74020
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

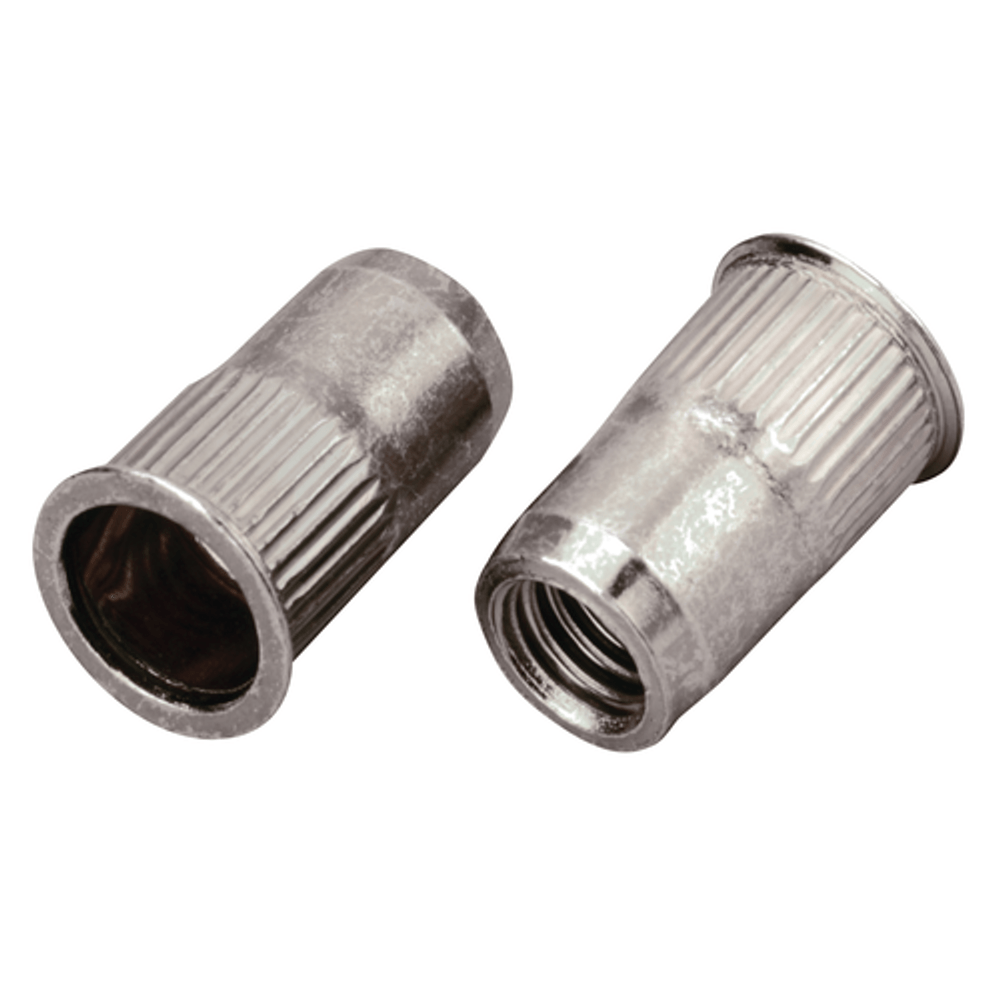

Eurosert Steel 0.25 - 2 mm Low Profile Round, Knurled Rivet Nuts

Eurosert

Description0.25 - 2 mm Low Profile Round, Knurled Steel Eurosert Rivet Nuts
Product familyEurosert
MaterialSteel
Open / ClosedOpen
Head StyleLow Profile
Body StyleRound, Knurled
ThreadM4
Min grip mm0.25
Max grip mm2.0
Min Hole Size mm6.0
Max Hole Size mm6.1
Nominal Body Length mm11.3
Max Flange Diameter mm6.7
Max Flange Thickness mm0.59

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318190000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight6.87842
Minimum Order Quantity3000
Features

    Fast Facts:


  • Can be used in very thin sheet materials from 0.25mm (0.01").

  • Blind hole, one-sided installation capability.

  • Double diameter body and lead-in chamfer provide easy insertion into hole.

  • Provide a female thread-in application.

  • Clamps two or more sheets of material together, within the grip range.

  • Low-profile version allows near-flush fit to application.

  • Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out.

  • Large-flange version can be used as a spacer and can be supplied with an underhead seal.

  • For hard metric hole sizes.

  • Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication.



    • Specifications:


  • Thread Sizes: M3-M10

  • Material: Steel, stainless steel

  • Headforms: Low profile and large flange

  • Body: With or without splines

  • Hole Size: Metric
