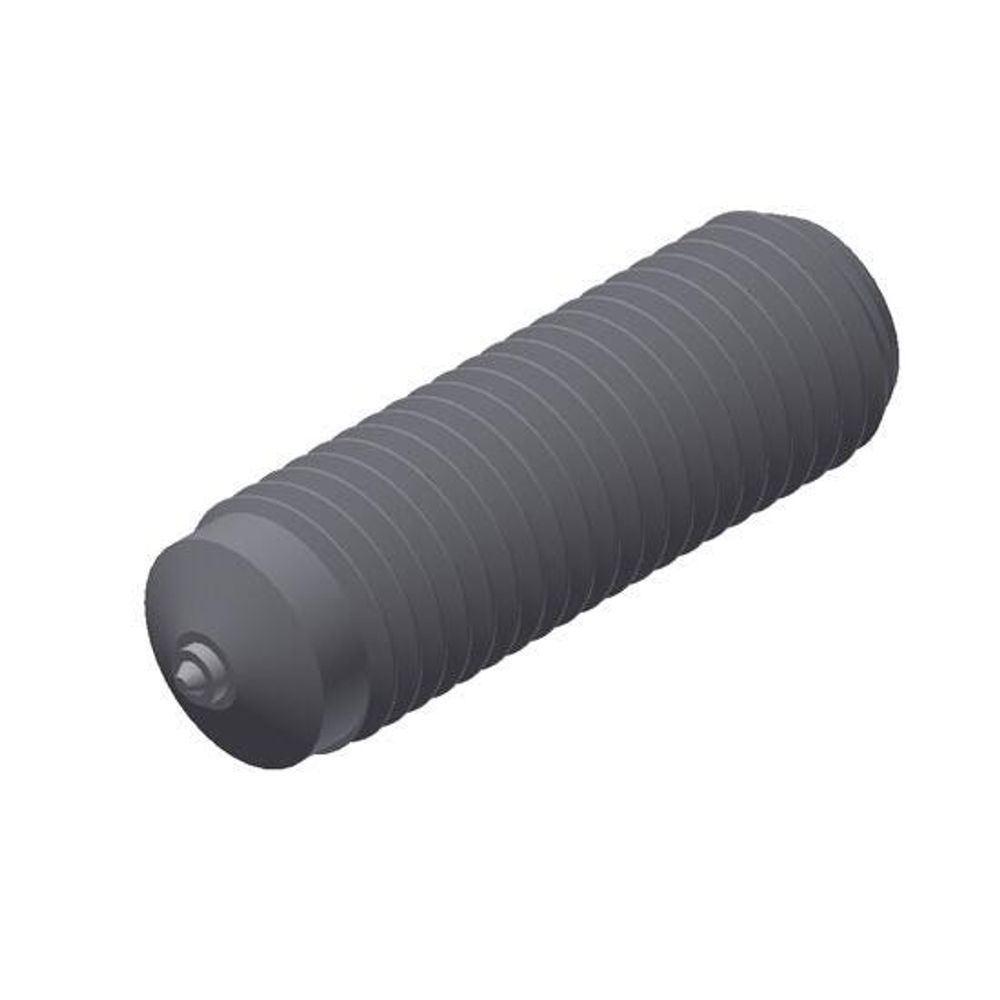

MR M16 X 70.0MM BW MS SPEC - 102601186
Cód:
102601186
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 16 mm |
|---|---|
| Width | 16 mm |
| Length | 70 mm |
| Weight | 0.198 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 16 mm |
| Weld Base Dia | 13.2 mm |
| Overall Length | 70 mm |
| Weld Base Length | 8 mm |
| Burn Off | 4 mm |
| Thread Size | M16 metric |
| Flash Dia | 17 mm |
| Flash Thickness | 5 mm |
| Related Ferrule | 100101021.0 |
| Related Chuck | 500001016.0 |
| Related Grip | 501001011.0 |
| Related HD Foot | 502001002.0 |
| Features |
1. Nelson Reduced Base Studs conform to AWS D1.1, TS 16949 and ISO 13918. |
|---|
