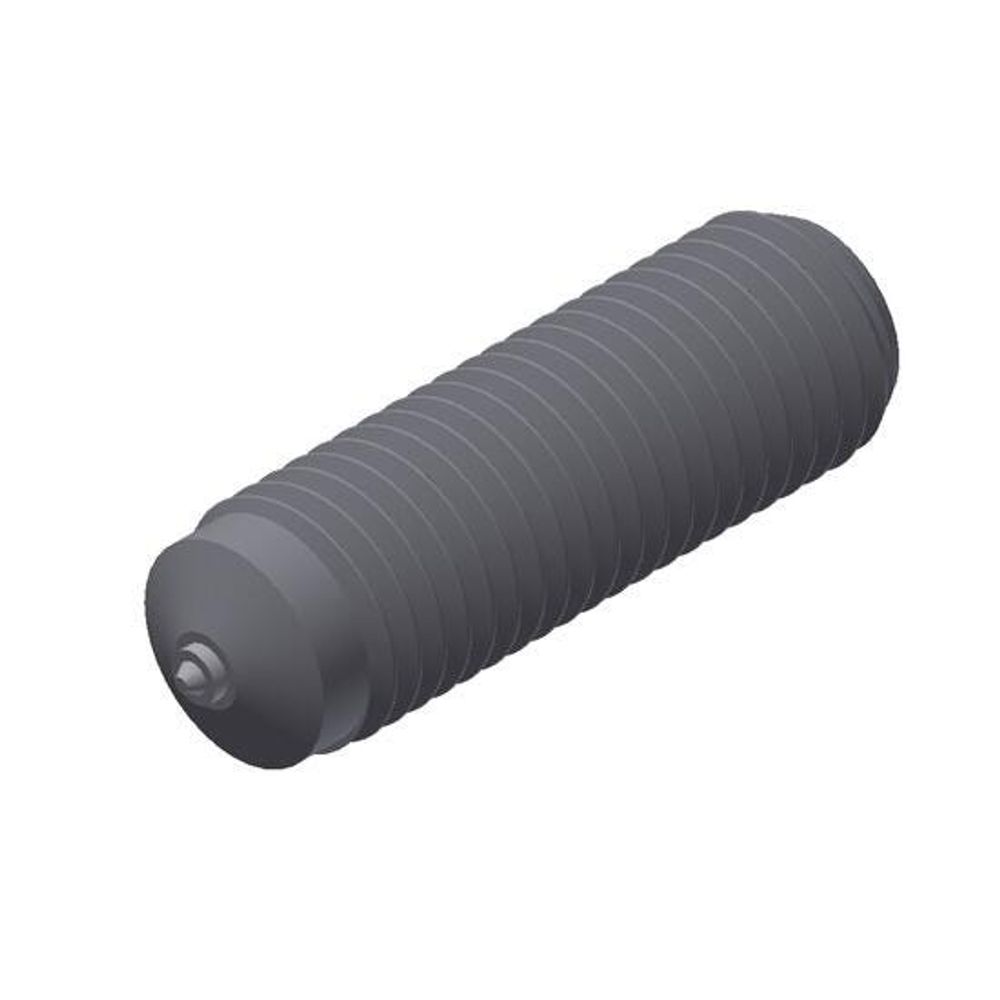

MR M8 X 22.0MM BW MS GDZN A - 101014084
Cód:
101014084
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 8 mm |
|---|---|
| Width | 8 mm |
| Length | 22 mm |
| Weight | 0.02 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 8 mm |
| Weld Base Dia | 6.2 mm |
| Overall Length | 22 mm |
| Weld Base Length | 4.5 mm |
| Burn Off | 3 mm |
| Thread Size | M8 metric |
| Flash Dia | 8.8 mm |
| Flash Thickness | 2.5 mm |
| Related Ferrule | 100101017.0 |
| Related Chuck | 500001009.0 |
| Related Grip | 501001006.0 |
| Related Foot | 502001137.0 |
| Related HD Foot | 502001001.0 |
| Features |
1. Nelson Reduced Base Studs conform to AWS D1.1, TS 16949 and ISO 13918. |
|---|
