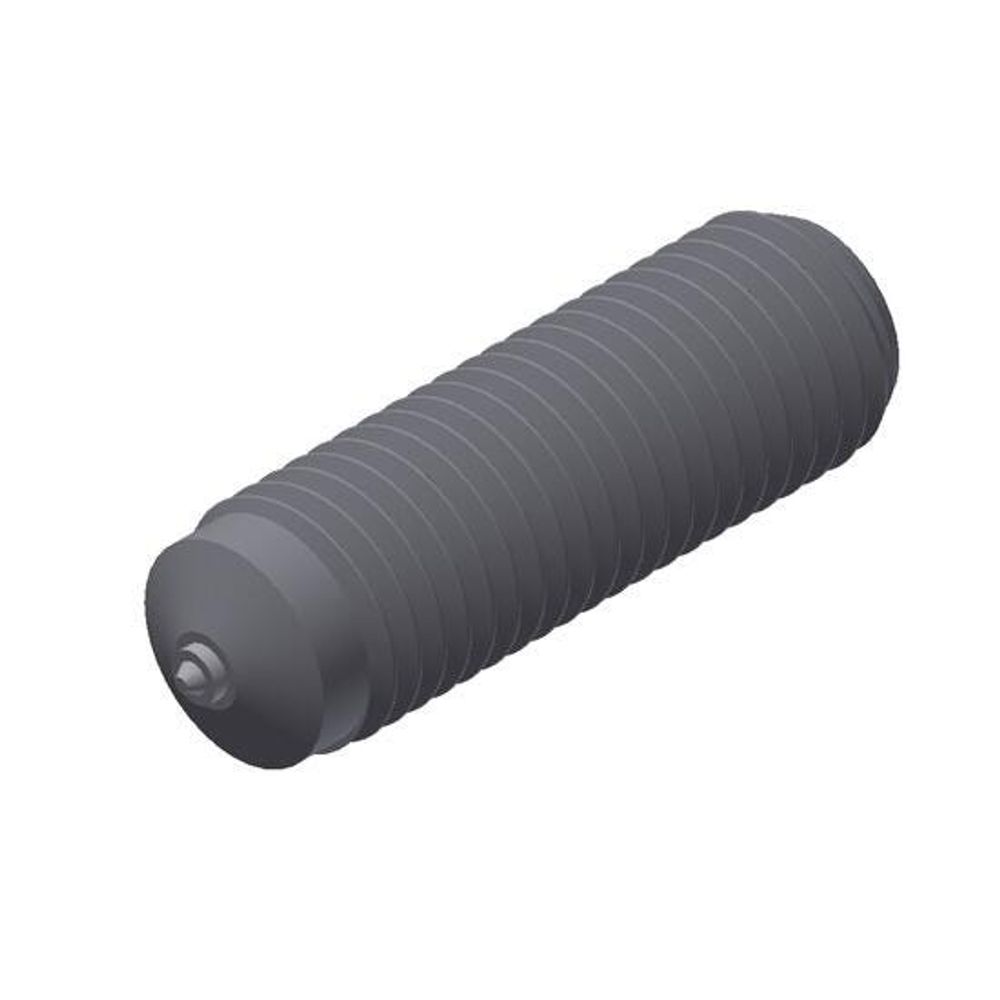

MR M12 X 83.0MM BW MS - 102601196
Cód:
102601196
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 12 mm |
|---|---|
| Width | 12 mm |
| Length | 83 mm |
| Weight | 0.131 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 12 mm |
| Weld Base Dia | 9.5 mm |
| Overall Length | 83 mm |
| Weld Base Length | 6.5 mm |
| Burn Off | 3 mm |
| Thread Size | M12 metric |
| Flash Dia | 13 mm |
| Flash Thickness | 4 mm |
| Related Ferrule | 100101165.0 |
| Related Chuck | 500001206.0 |
| Related Grip | 501001009.0 |
| Related Foot | 502001137.0 |
| Related HD Foot | 502001001.0 |
| Features |
1. Nelson Reduced Base Studs conform to AWS D1.1, TS 16949 and ISO 13918. |
|---|
