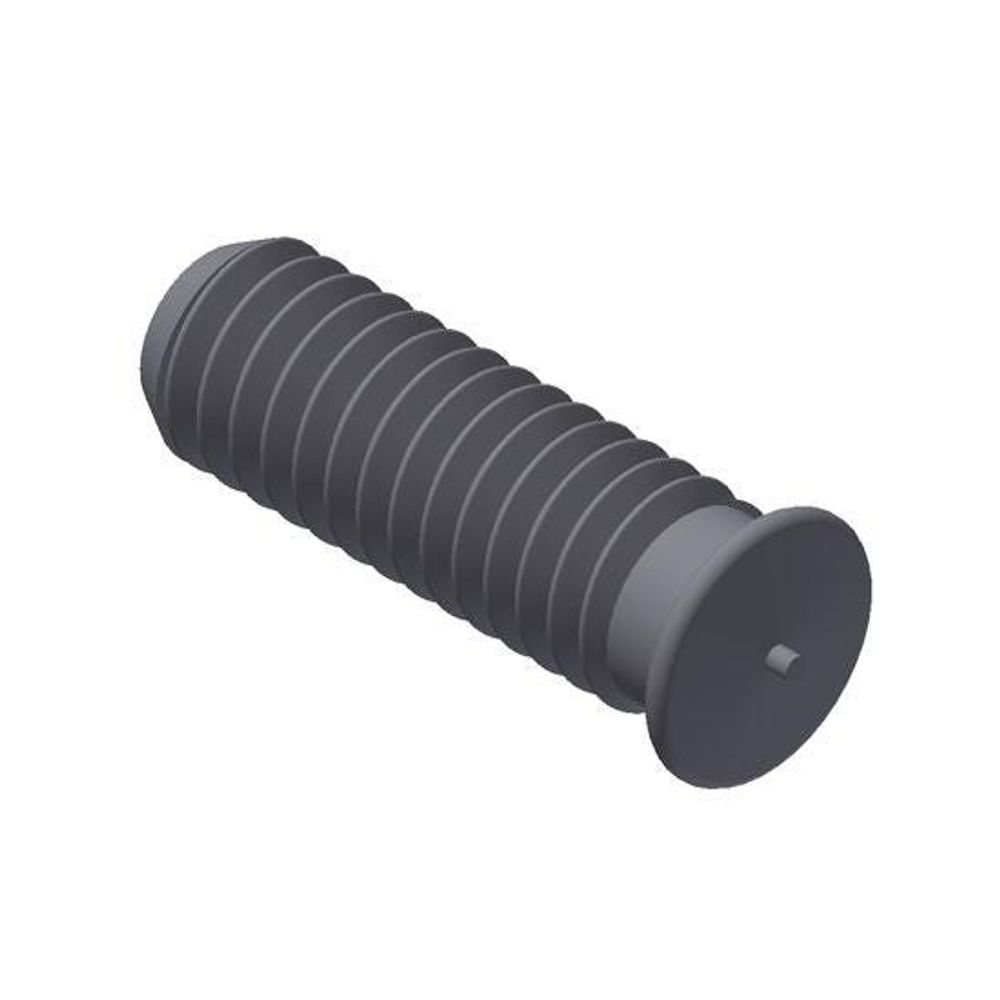

TATC 5/16-18 X 1 MS CUPL - 102218549
Cód:
102218549
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.312 inches |
|---|---|
| Width | 0.355 inches |
| Length | 1 inches |
| Weight | 0 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.312 inches |
| Weld Base Dia | 0.355 inches |
| Overall Length | 1 inches |
| Thread Size | 5/16-18 UN/UNF |
| Related Chuck | 500001360.0 |
| Related Foot | 502001261.0 |
| Chuck Screw | 500017018.0 |
| Features |
1. These studs have a special flanged weld base that is about 1/32”, or 1mm, greater than the nominal stud diameter. The mini flange diameter , allows automatic stud feeding for increased production speeds. The flange also increases the stress area welded to the base material. These Nelson studs are fully threaded in lengths up to 1.25” (50mm). |
|---|
