TATC 6-32 X 3/8 MS CUPL - 101218217

Cód:

101218217

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

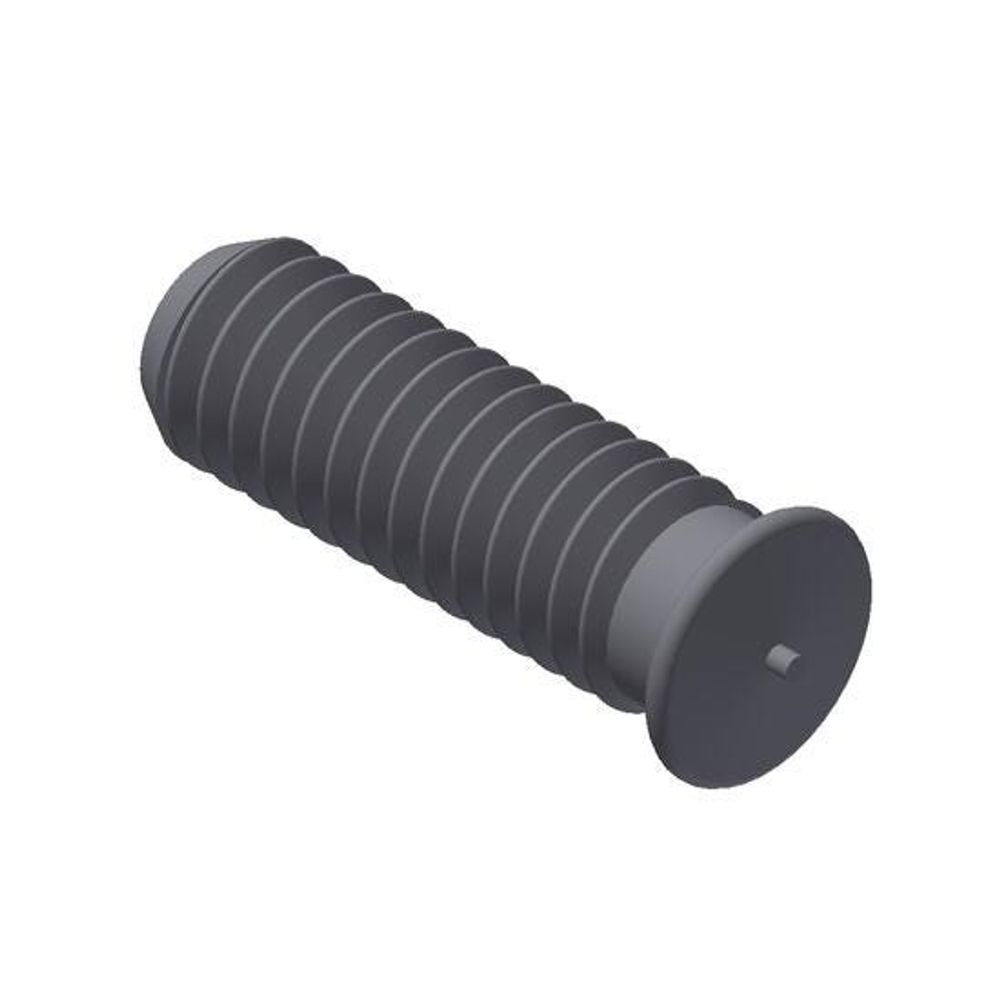

TATC 6-32 X 3/8 MS CUPL

TATC - Tipped, Auto-Feed, Threaded, Carbon Steel

Height	0.138 inches
Width	0.168 inches
Length	0.375 inches
Weight	0.002 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.138 inches
Weld Base Dia	0.168 inches
Overall Length	0.375 inches
Thread Size	6-32 UN/UNF
Related Chuck	500001356.0
Related Foot	502001261.0
Chuck Screw	500017017.0

default

Features	1. These studs have a special flanged weld base that is about 1/32”, or 1mm, greater than the nominal stud diameter. The mini flange diameter , allows automatic stud feeding for increased production speeds. The flange also increases the stress area welded to the base material. These Nelson studs are fully threaded in lengths up to 1.25” (50mm). 2. Standard external threads are typically UNC-2A, or UNF-2A for #10-32. 3. These studs are designated as auto-feed studs, they are manual feed capable.

Features

1. These studs have a special flanged weld base that is about 1/32”, or 1mm, greater than the nominal stud diameter. The mini flange diameter , allows automatic stud feeding for increased production speeds. The flange also increases the stress area welded to the base material. These Nelson studs are fully threaded in lengths up to 1.25” (50mm).

2. Standard external threads are typically UNC-2A, or UNF-2A for #10-32.
3. These studs are designated as auto-feed studs, they are manual feed capable.
