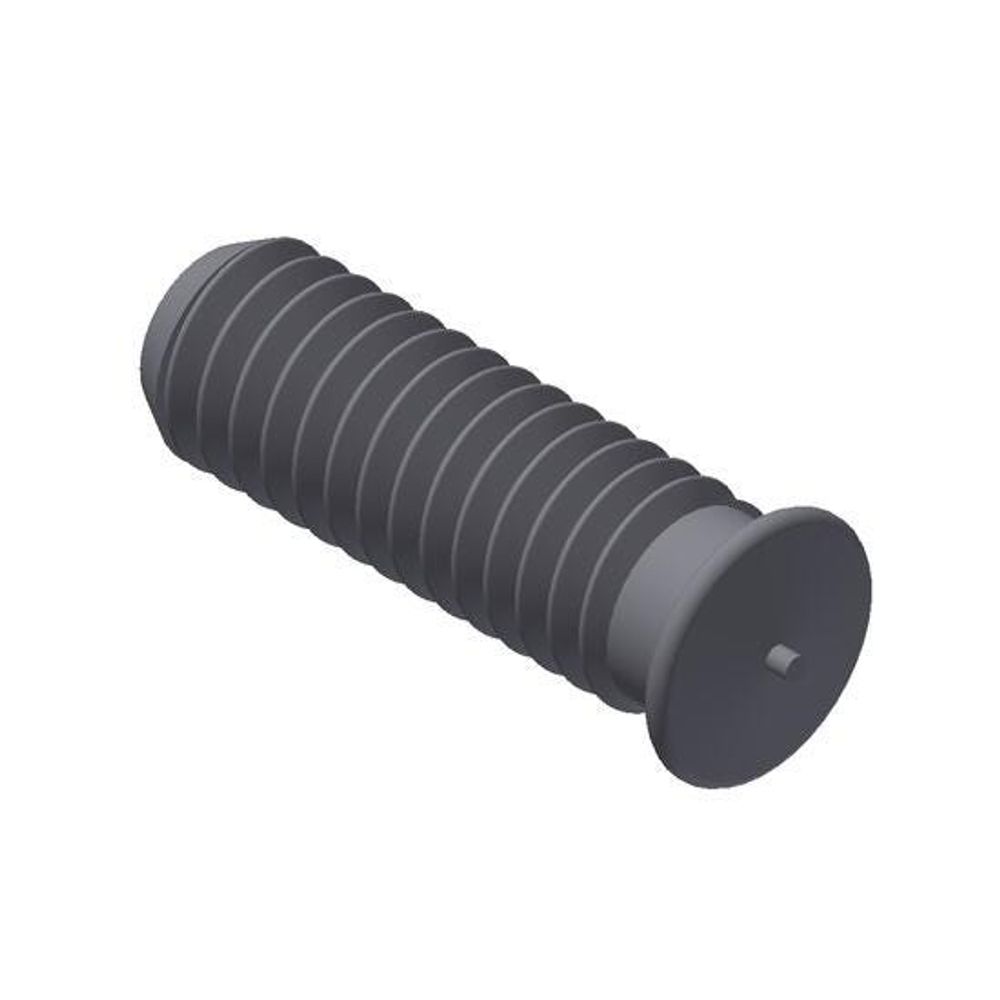

TATC 1/4-20 X 3/4 MS CUPL - 102218009
Cód:
102218009
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Chuck Screw | 500017018.0 |
|---|---|
| Related Foot | 502001261.0 |
| Related Chuck | 500001359.0 |
| Thread Size | 1/4-20 UN/UNF |
| Overall Length | 0.75 inches |
| Weld Base Dia | 0.28 inches |
| Stud Dia | 0.25 inches |
| Material (O) | Low Carbon Steel |
| Brand | Nelson |
| Weight | 0.008 Lb |
| Length | 0.75 inches |
| Width | 0.28 inches |
| Height | 0.25 inches |
| Features |
1. These studs have a special flanged weld base that is about 1/32”, or 1mm, greater than the nominal stud diameter. The mini flange diameter , allows automatic stud feeding for increased production speeds. The flange also increases the stress area welded to the base material. These Nelson studs are fully threaded in lengths up to 1.25” (50mm). |
|---|
