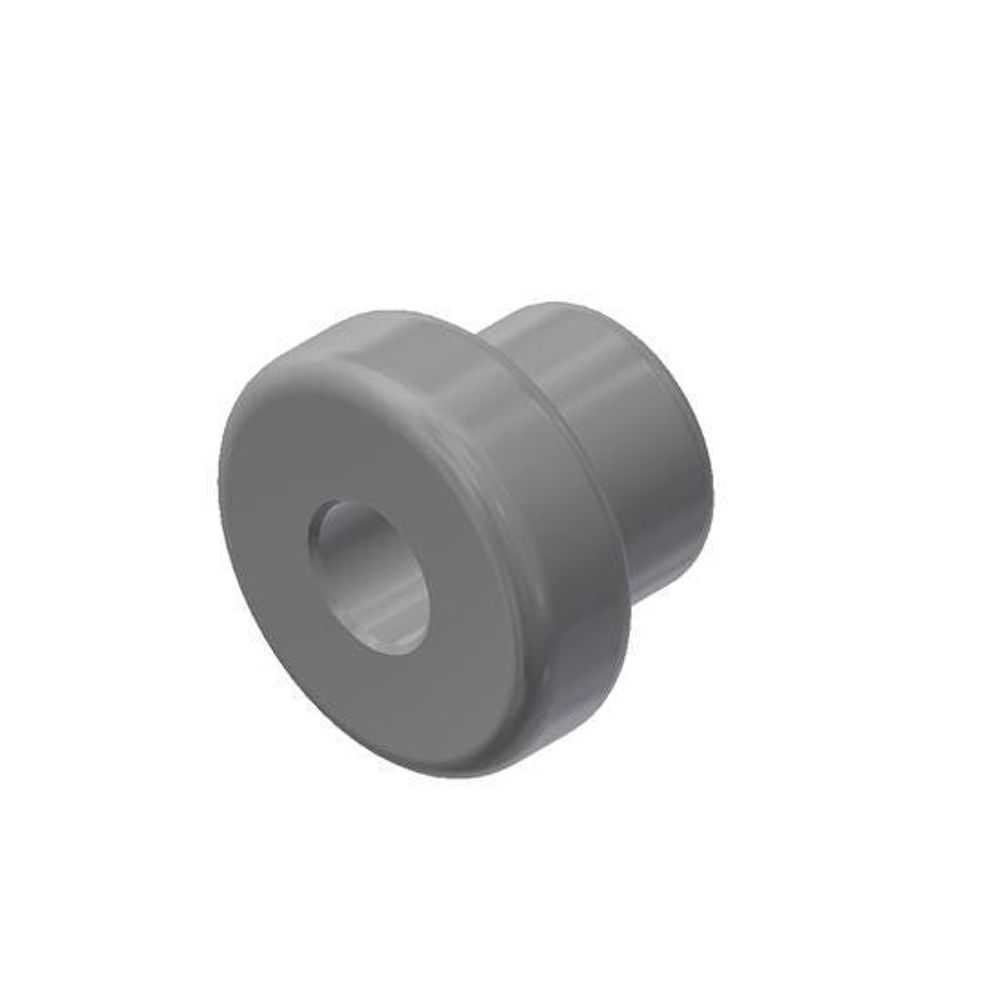

H8L 3/4 X .931 MS - 102056031
Cód:
102056031
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 1.1 inches |
|---|---|
| Burn Off | 0.125 inches |
| Head Thickness | 0.22 inches |
| Overall Length | 0.931 inches |
| Head Dia | 1.1 inches |
| Weld Base Dia | 0.75 inches |
| Material (O) | Low Carbon Steel |
| Brand | Nelson |
| Weight | 0.133 Lb |
| Length | 0.931 inches |
| Width | 1.1 inches |
| Features | 1. H8L studs have a reduced weld base diameter and are welded using ceramic ferrules. The ferrules used with H8L studs feature an inverted internal cavity. This restricts the weld flash and should insure that the welded stud will fit properly into the spring housing hole. 2. Dowel Pin Studs are available only in Mild Steel. Dowel Pin Studs can be electrozinc plated to ASTM B633, Fe/Zn 8. |
|---|
