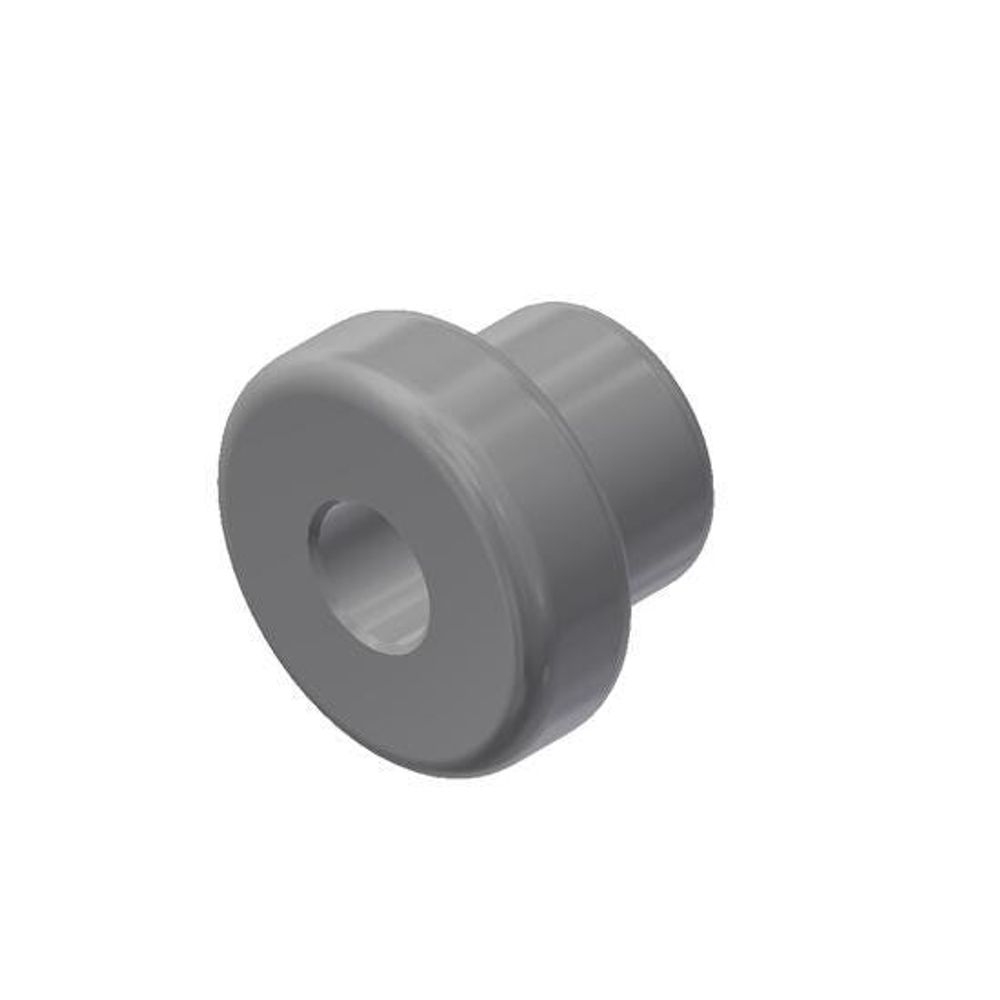

H8L 5/8 X 15/32 MS 7/16 WB 1/4 - 101056048
Cód:
101056048
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Related HD Foot | 502001002.0 |
|---|---|
| Related Grip | 501010117.0 |
| Related Chuck | 500003012.0 |
| Related Ferrule | 100108008.0 |
| Burn Off | 0.125 inches |
| Head Thickness | 0.187 inches |
| Overall Length | 0.468 inches |
| Head Dia | 0.625 inches |
| Weld Base Dia | 0.435 inches |
| Material (O) | Low Carbon Steel |
| Brand | Nelson |
| Weight | 0.025 Lb |
| Length | 0.468 inches |
| Width | 0.625 inches |
| Height | 0.625 inches |
| Features | 1. H8L studs have a reduced weld base diameter and are welded using ceramic ferrules. The ferrules used with H8L studs feature an inverted internal cavity. This restricts the weld flash and should insure that the welded stud will fit properly into the spring housing hole. 2. Dowel Pin Studs are available only in Mild Steel. Dowel Pin Studs can be electrozinc plated to ASTM B633, Fe/Zn 8. |
|---|
