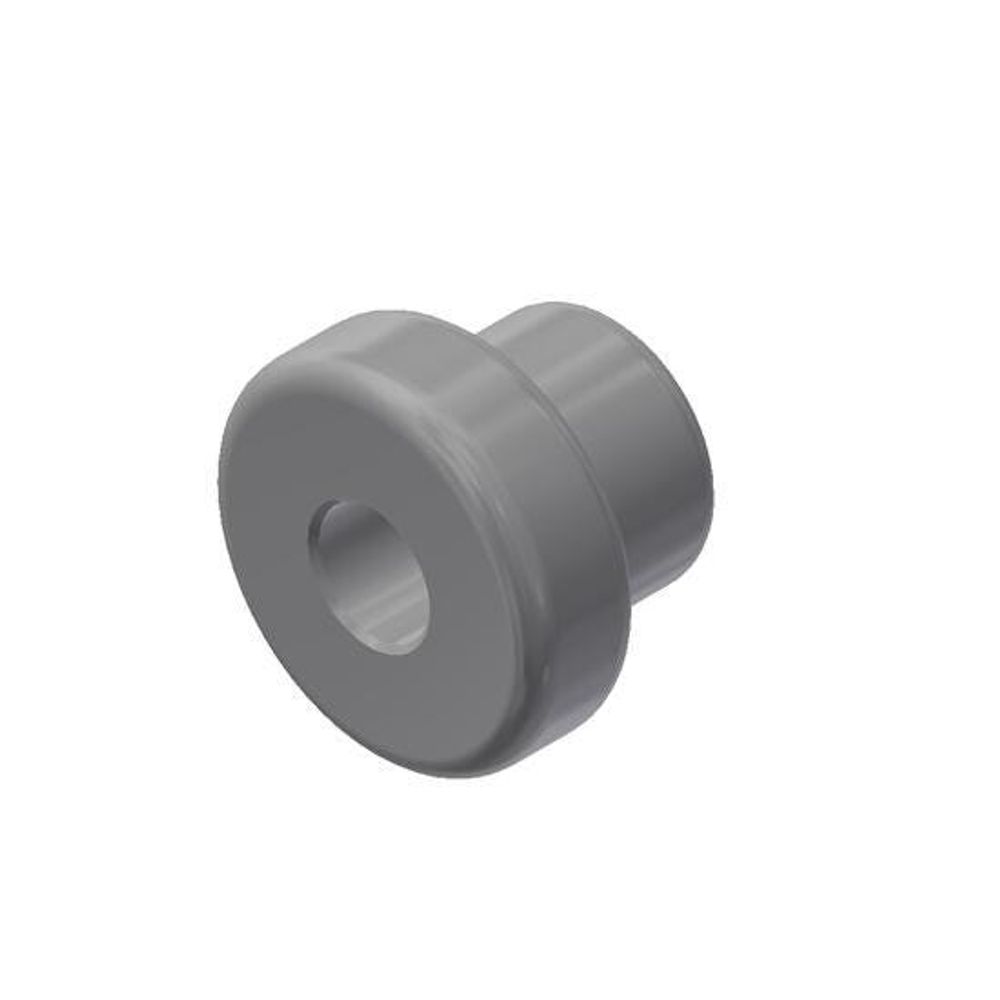

H8L 3/4 X 9/16 MS 1/2 WB 1/4 - 101056098
Cód:
101056098
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.75 inches |
|---|---|
| Width | 0.75 inches |
| Length | 0.562 inches |
| Weight | 0.044 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Weld Base Dia | 0.5 inches |
| Head Dia | 0.75 inches |
| Overall Length | 0.562 inches |
| Head Thickness | 0.25 inches |
| Burn Off | 0.125 inches |
| Related Ferrule | 100108019.0 |
| Related Chuck | 500003012.0 |
| Related Grip | 501010118.0 |
| Related HD Foot | 502001002.0 |
| Features | 1. H8L studs have a reduced weld base diameter and are welded using ceramic ferrules. The ferrules used with H8L studs feature an inverted internal cavity. This restricts the weld flash and should insure that the welded stud will fit properly into the spring housing hole. 2. Dowel Pin Studs are available only in Mild Steel. Dowel Pin Studs can be electrozinc plated to ASTM B633, Fe/Zn 8. |
|---|
