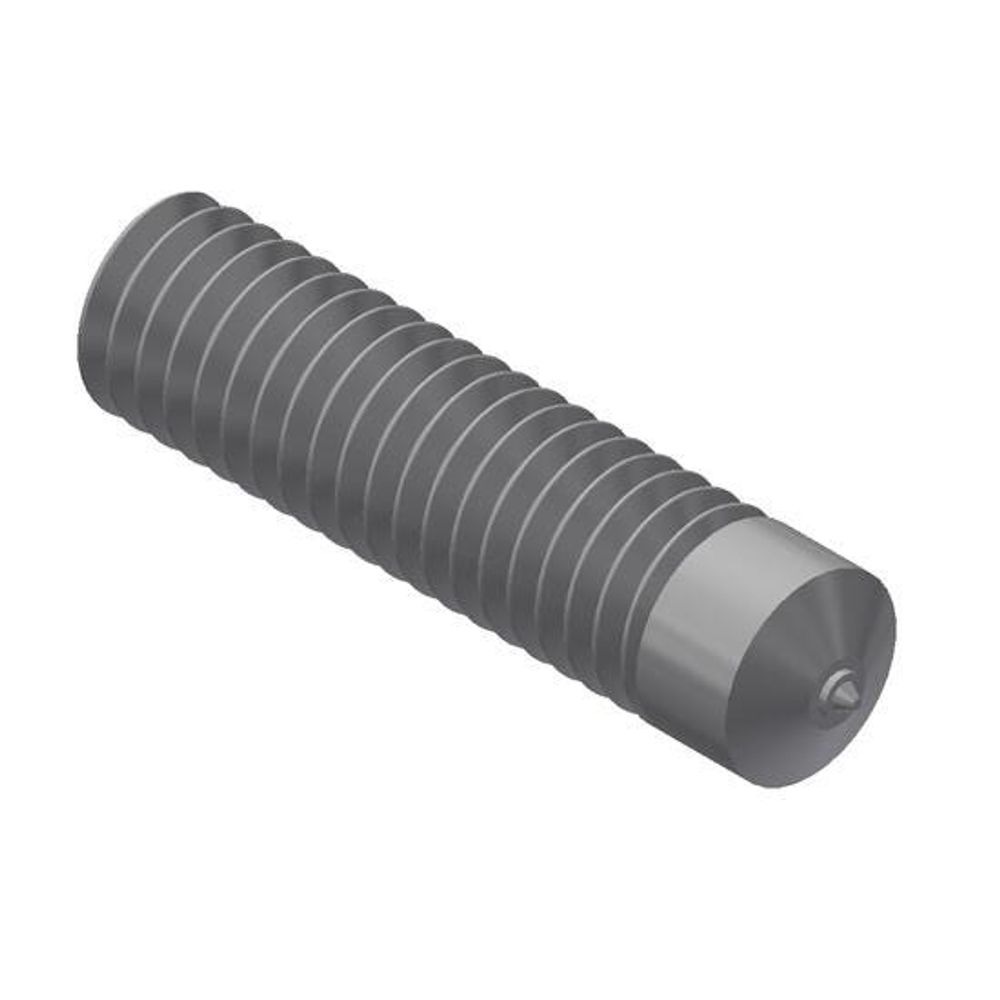

HBA 1/4-20 X 7/8 AL50 - 101044967
Cód:
101044967
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.25 inches |
|---|---|
| Width | 0.25 inches |
| Length | 0.875 inches |
| Weight | 0.004 Lb |
| Brand | Nelson |
| Material (O) | Aluminum |
| Stud Dia | 0.25 inches |
| Weld Base Dia | 0.25 inches |
| Overall Length | 0.875 inches |
| Weld Base Length | 0.312 inches |
| Burn Off | 0.093 inches |
| Thread Size | 1/4-20 UN/UNF |
| Flash Dia | 0.406 inches |
| Flash Thickness | 0.125 inches |
| Related Ferrule | 100101047.0 |
| Related Chuck | 500001006.0 |
| Related Foot | 751020000.0 |
| Features | 1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle. |
|---|
HBA 1/4-20 X 1 5086
$0.02
HBA 5/16-18 X 1 5086
$0.02
HBA 3/8-16 X 1 1/2 AL50
$0.02
HBA 1/4-20 X 7/8 5356
$0.02
HBA 1/4-20 X 1 1/8 AL50 A
$0.02
HBA 3/8-16 X 1 1/4 AL50
$0.02
HBA 1/2-13 X 2 AL50
$0.02
HBA 1/4-20 X 7/8 AL50
$0.02
HBA 1/4-20 X 3 5086 A*
$0.02
HBA 3/8-16 X 1 5356-O SPEC TIP
$0.02
HBA M6-1.0 X 23MM BW 5356 A*
$0.02
HBA 10-24 X 1 5356
$0.02
HBA 1/2-13 X 2 AL50
$0.02
HBA 10-24 X 1 5356
$0.02
HBA 3/8-16 X 4 5356-O SPEC TIP
$0.02
HBA 1/2-13 X 1 1/2 AL50
$0.02
HBA 1/4-20 X 7/8 AL50
$0.02
HBA 3/8-16 X 6 AL50 W/ 5 1/2 THRD A*
$0.02
HBA 1/2-13 X 1 3/4 5356
$0.02
HBA 1/2-13 X 3 1/4 AL50
$0.02
HBA 3/8-16 X 1 5/8 AL50
$0.02
HBA M6-1.0 X 23MM BW 5356 A*
$0.02
HBA 1/4-20 X 1 5086
$0.02
HBA 3/8-16 X 6 AL50 1 3/4 THD
$0.02
HBA 5/16-18 X 2 1/2 5086
$0.02
HBA 3/8-16 X 4 5356-O SPEC TIP
$0.02
HBA 1/4-20 X 3 5086 A*
$0.02
HBA 1/2-13 X 1 1/4 AL50
$0.02
HBA 5/16-18 X 1 5086
$0.02
HBA 3/8-16 X 1 3/4 AL50 A*
$0.02
HBA 10-24 X 1 5356
$0.02
HBA 3/8-16 X 1 5356-O SPEC TIP
$0.02
HBA M6-1.0 X 23MM BW 5356 A*
$0.02
HBA 3/8-16 X 1 5/8 AL50
$0.02
HBA 3/8-16 X 2 5356-O SPEC TIP
$0.02
HBA 1/4-20 X 7/8 5356
$0.02
