HBA 3/8-16 X 1 5/8 AL50 - 101044847

Cód:

Opinião dos Consumidores:0

Nelson

HBA 3/8-16 X 1 5/8 AL50 - 101044847

Cód:

101044847

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

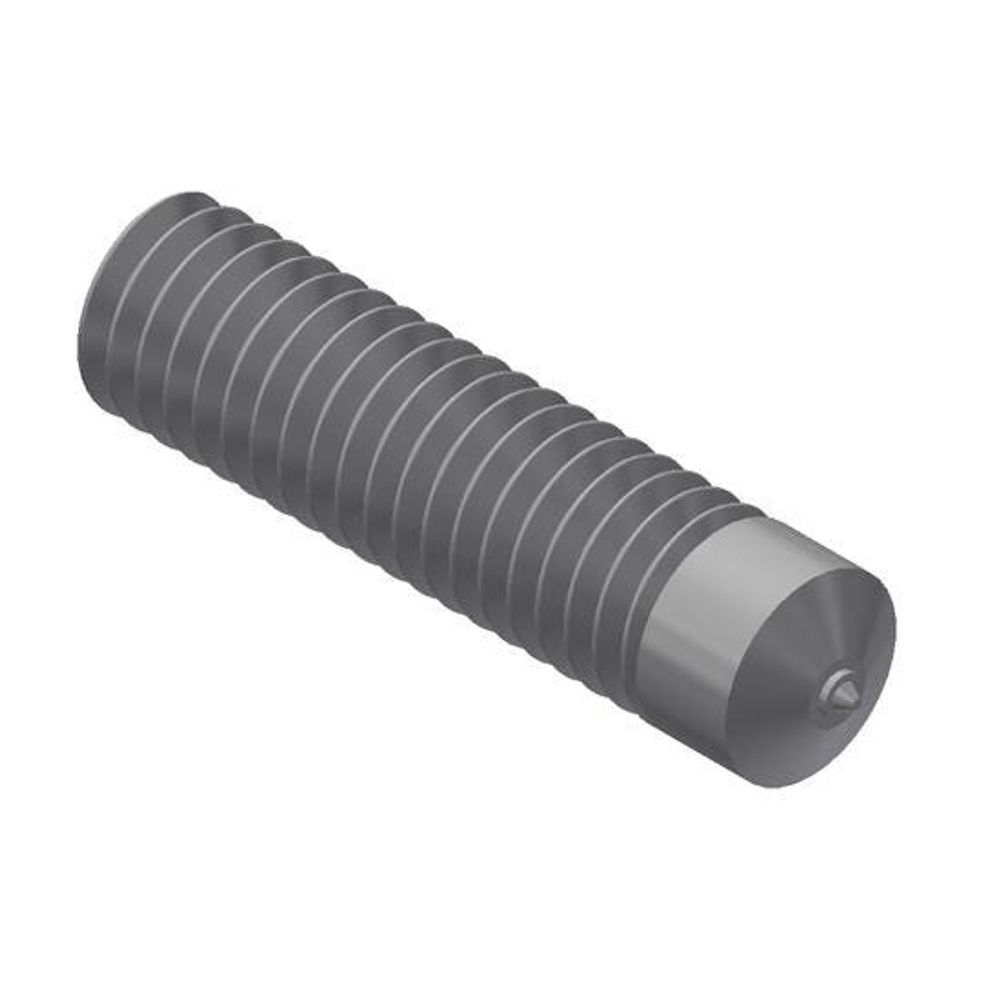

HBA 3/8-16 X 1 5/8 AL50

HBA - Aluminum, Full Base Diameter, Threaded

Related Foot	751020000.0
Related Chuck	500001010.0
Related Ferrule	100101049.0
Flash Thickness	0.187 inches
Flash Dia	0.603 inches
Thread Size	3/8-16 UN/UNF
Burn Off	0.093 inches
Weld Base Length	0.39 inches
Overall Length	1.625 inches
Weld Base Dia	0.375 inches
Stud Dia	0.375 inches
Material (O)	Aluminum
Brand	Nelson
Weight	0.013 Lb
Length	1.625 inches
Width	0.375 inches
Height	0.375 inches

default

Features	1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle.

Features

1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle.
