HBA 5/16-18 X 2 1/2 5086 - 101044034

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

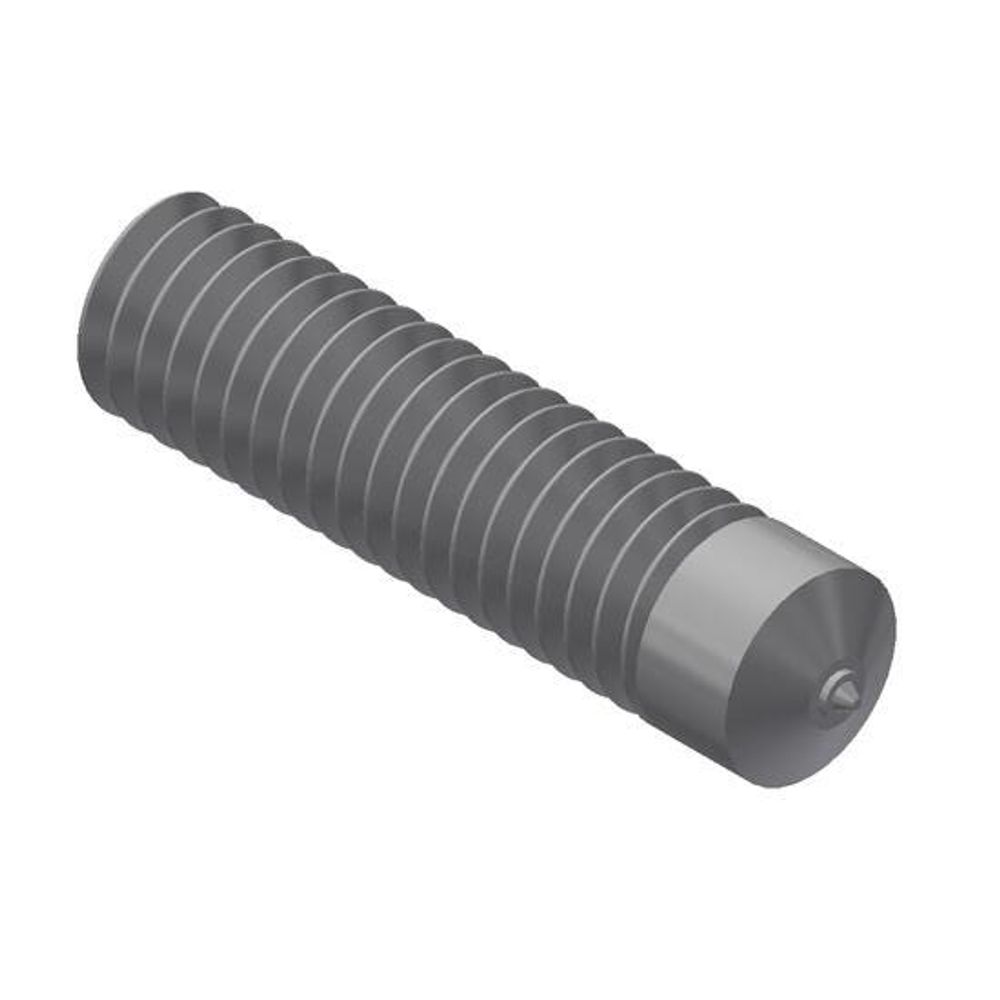

HBA 5/16-18 X 2 1/2 5086

HBA - Aluminum, Full Base Diameter, Threaded

Height0.312 inches
Width0.312 inches
Length2.5 inches
Weight0.017 Lb
BrandNelson
Material (O)Aluminum
Stud Dia0.312 inches
Weld Base Dia0.312 inches
Overall Length2.5 inches
Weld Base Length0.343 inches
Burn Off0.093 inches
Thread Size5/16-18 UN/UNF
Flash Dia0.468 inches
Flash Thickness0.156 inches
Related Ferrule
Related Chuck
Related Foot

default

Features

    1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle.
