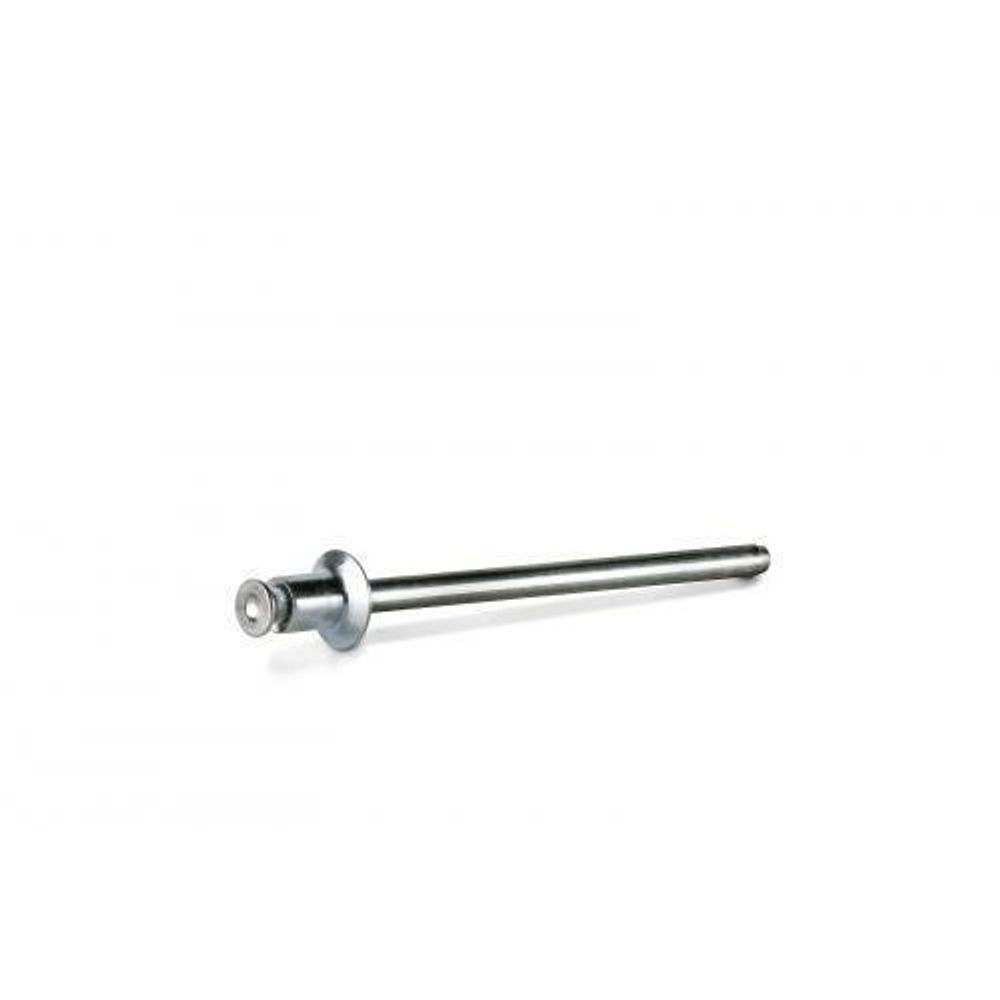

POP 3.2mm [1/8] Steel / Steel Pull-Thru Rivets
Cód:
SKK3065PT
Opinião dos Consumidores:0
SKK3065PT
Por: $0.02
à vista
ComprarVendedor Stanley Engineered Fastening
no-image
SKK3065PT

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

5.5118-5.9944 mm Grip with 3.2 mm Nominal Diameter in Countersunk Head Style with Steel Body Material and Steel Mandrel Material

Pull-Thru

Product name5.5118 - 5.9944 Grip in Steel/Steel, Pull-Thru Non-Structural Blind Rivets
Nominal Diameter mm3.0
Nominal Diameter Inches3.0mm [.118]
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc and Yellow
Head StyleCountersunk
Min grip mm5.5
Max grip mm6
Min Grip Inches0.217
Max Grip Inches0.236
Min Hole Size mm3.28
Max Hole Size mm3.4
Min Holes Size Inches0.129
Max Hole Size Inches0.134
Max Body Length mm6.5
Max Body Length Inches0.256
Flange Diameter mm Max5.5
Flange Diameter inches Max0.216
Flange Thickness mm Max1.0
Flange Thickness Inches Max0.039
Shear kN0.8
Tensile kN0.7
Shear lbf180
Tensile lbf157

default

Features

    Fast Facts:


  • Flush set on both sides of the application.

  • Insertion can be reversed, improving rivet tool access.

  • Unique "Pull-Thru" mandrel. No loose stem heads remain in the application.

  • Consistent clamp force

  • Tight radial set provides increased structural rigidity.

  • Colored mandrels allow for quick visual identification of different part sizes.

  • Blind hole, one-sided installation capability.

  • Assembly applications include electronics, automotive, auto tier, and home & appliance.
