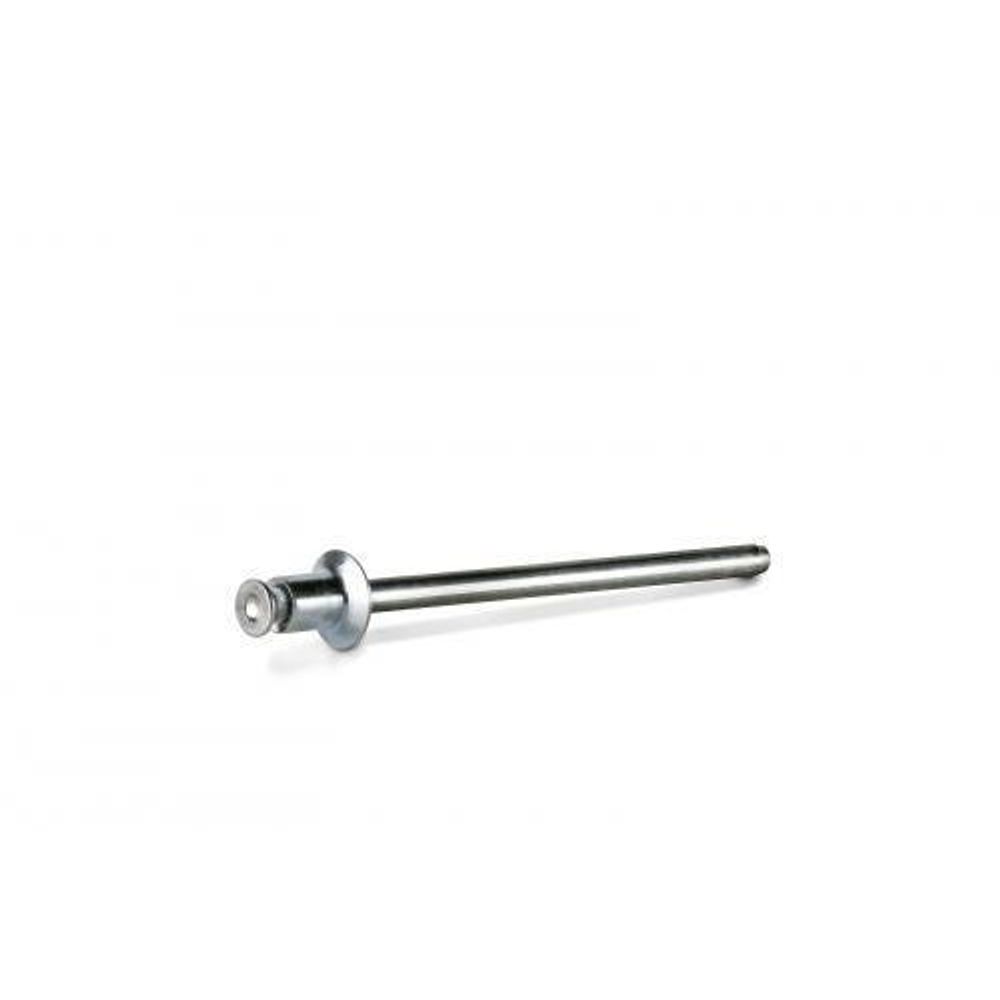

POP 3.2mm [1/8] Steel / Steel Pull-Thru Rivets - SKK3060PT
Cód:
SKK3060PT
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

5.0038-5.5118 mm Grip with 3.2 mm Nominal Diameter in Countersunk Head Style with Steel Body Material and Steel Mandrel Material

Pull-Thru

Product name5.0038 - 5.5118 Grip in Steel/Steel, Pull-Thru Non-Structural Blind Rivets
Nominal Diameter mm3.0
Nominal Diameter Inches3.0mm [.118]
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc
Head StyleCountersunk
Min grip mm5
Max grip mm5.5
Min Grip Inches0.197
Max Grip Inches0.217
Min Hole Size mm3.28
Max Hole Size mm3.4
Min Holes Size Inches0.129
Max Hole Size Inches0.134
Max Body Length mm6.0
Max Body Length Inches0.236
Flange Diameter mm Max5.5
Flange Diameter inches Max0.216
Flange Thickness mm Max1.0
Flange Thickness Inches Max0.039
Shear kN0.8
Tensile kN0.7
Shear lbf180
Tensile lbf157

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days77
JDE_Weight2.2999999
Minimum Order Quantity100000
Features

    Fast Facts:


  • Flush set on both sides of the application.

  • Insertion can be reversed, improving rivet tool access.

  • Unique "Pull-Thru" mandrel. No loose stem heads remain in the application.

  • Consistent clamp force

  • Tight radial set provides increased structural rigidity.

  • Colored mandrels allow for quick visual identification of different part sizes.

  • Blind hole, one-sided installation capability.

  • Assembly applications include electronics, automotive, auto tier, and home & appliance.
