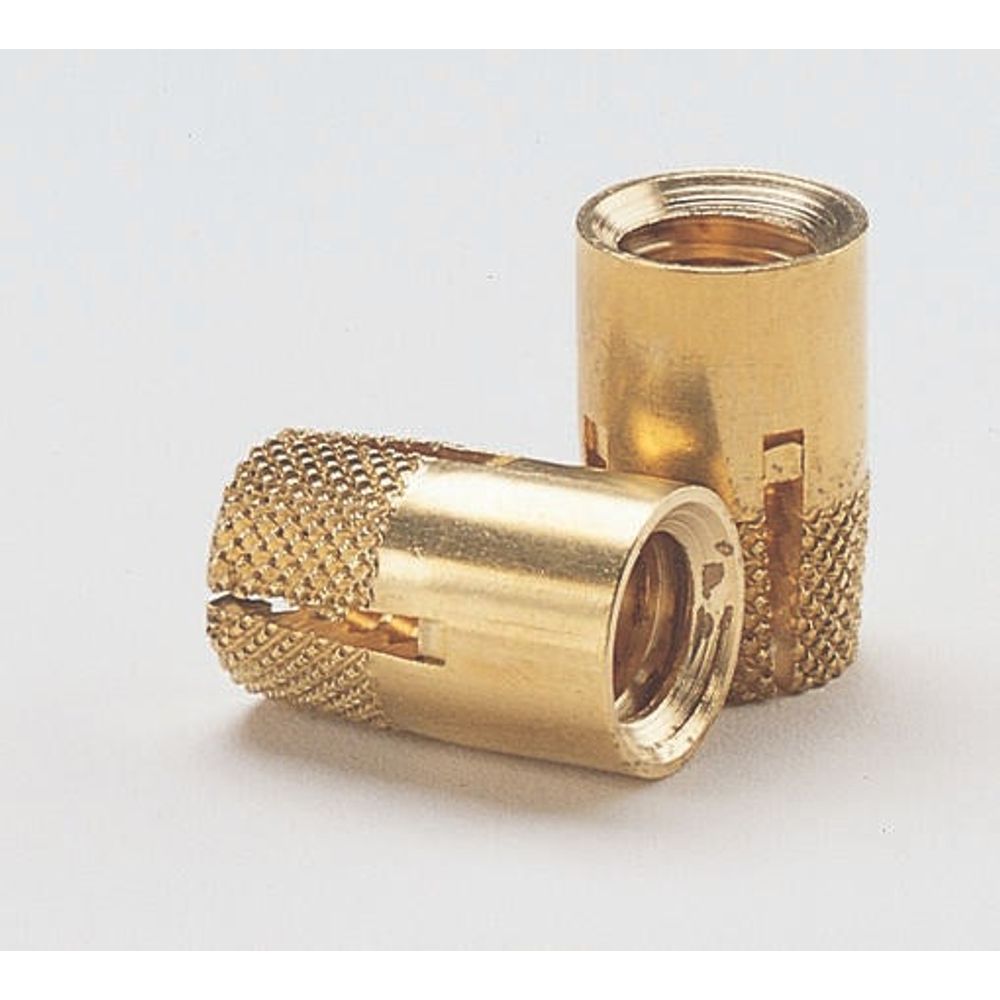

Dodge M3x0.5 Standard Expansion Solid Inserts 6.35 mm Length - 70017-3-064
Cód:
70017-3-064
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | M3x0.5 Metric |
| Length | 6.35 mm |
| Body Diameter | 3.97 mm |
| Minimum Threaded Length | 4.52 mm |
| Hole Diameter Thermoset | 4.01 mm |
| Hole Depth | 6.40 mm |
| Minimum Boss Diameter | 7.92 mm |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | CN |
| JDE_Lead_Time_Days | 56 |
| JDE_Weight | 1.3545 |
| Minimum Order Quantity | 5000 |
| Features | Economical and easy to install. Expansion inserts feature a two piece design consisting of a threaded insert and a captivated spreader plate. The insert is installed into a blind, straight hole and the spreader plate is then depressed. As the spreader plate is engaged, the knurled portion of the insert expands, anchoring the insert into place.
Fast Facts: |
