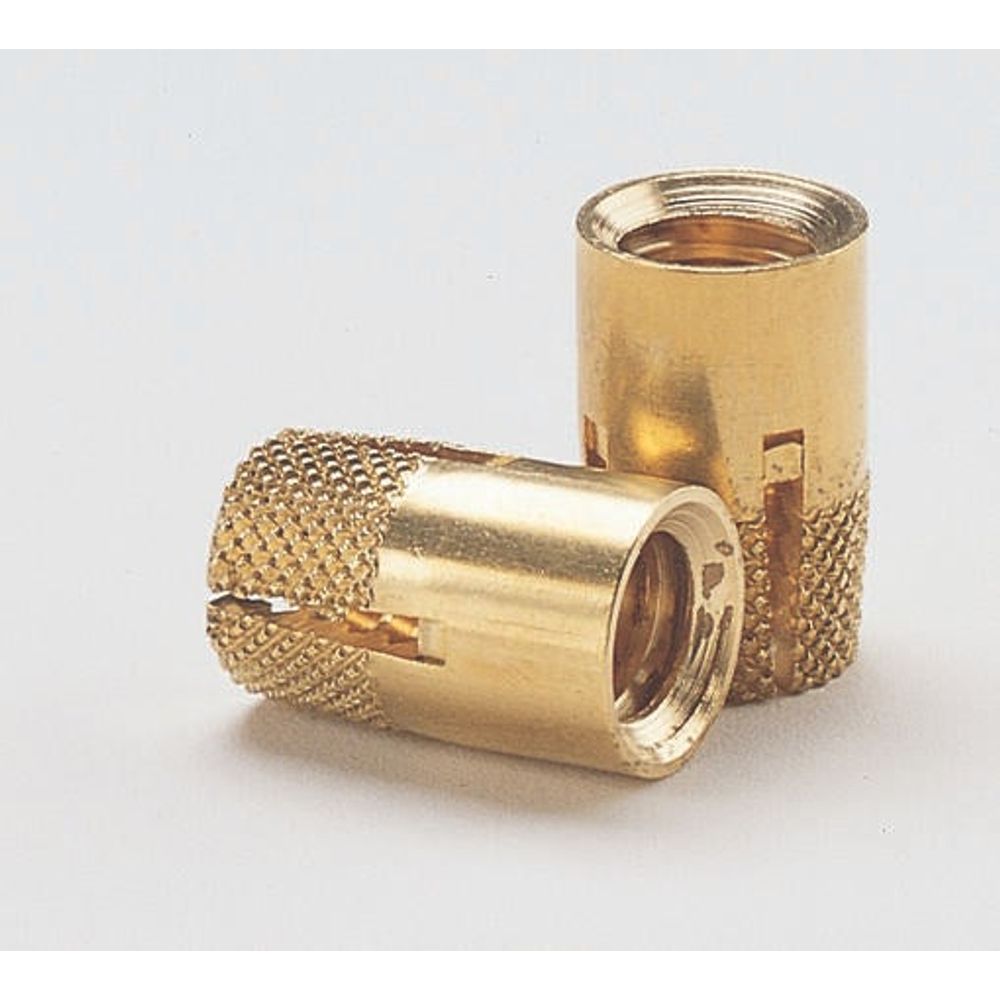

Dodge 1/4-20 Standard Expansion Solid Inserts .500 Inch Length - 70015-4-500
Cód:
70015-4-500
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 1/4-20 Inches |
| Length | .500 Inch |
| Body Diameter | .313 Inch |
| Minimum Threaded Length | .428 Inch |
| Hole Diameter Thermoset | .315 Inch |
| Hole Depth | .500 Inch |
| Minimum Boss Diameter | .626 Inch |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | CN |
| JDE_Lead_Time_Days | 140 |
| JDE_Weight | 9.27465 |
| Features | Economical and easy to install. Expansion inserts feature a two piece design consisting of a threaded insert and a captivated spreader plate. The insert is installed into a blind, straight hole and the spreader plate is then depressed. As the spreader plate is engaged, the knurled portion of the insert expands, anchoring the insert into place.
Fast Facts: |
